| Prod Model: |
Vehicle gps 103b+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Three Modes: |
Tracker, Monitor and Call |
| Apllication: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| Frequency Band: |
850/900/1800/1900MHz |
| SD Card Slot: |
Yes |
| OEM Or Not: |
Yes |
| Camera: |
Yes |
| Packaging: |
40 Unit /Carton Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Certificate: |
CE FCC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Certification: |
ISO/TS16949 |
| Model: |
GPS103+ |
| Screen Size: |
No Screen |
| Brand: |
Coban/ Baanool |
Product Description

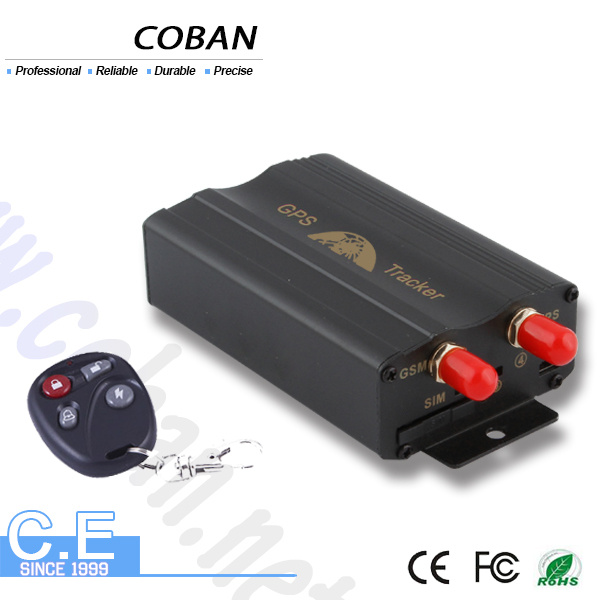

Dual SIM Card Vehicle GPS Tracker Tk103b+, Acc Detection, Vibration Alarm, Lock/Unlock Door
Description:
GPS vehicle tracker, which integrate multiple functions of accurately positioning, monitoring, guarding vehicle against theft, emergency alarms, tracking for vehicles. It is based on GSM / GPRS network and GPS satellites system, providing tracking by several ways, like providing monitor software and real-time global map to track in the PC, or track through PDA cellphone and google earth. We also supply multi-language(English, Spain, German, Italian. Portuguese, etc) web tracking platform for our customer to realtise real-time tracking.
Main features:
1. Small cubage: 83mm*54mm*26mm, weight: 120g, easy to hide
2. Support orientation without orientated server: It can find out real-time longitude and latitude, time and speed. You can find out real-time information of position after Input longtitude and latitude manually in public map software
3. With remote control to activate or deactivate DOOR alarm, ACC alarm, SENSOR alarm
4. If the target enter into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
5. Get accurate address by SMS
6. Remote engine-stop and resume
7. GSM / GPS LED indicator
8. Tracking function by timing and frequency
9. Remote reset by SMS or reset button on the device
10. Authorized number added and deleted functions
11. Support hidden alarm and monitor function
12. Geo-fence: Set up a Geo-fence for the unit to restrict its movements within certain district, it will send SMS to the authorized number when the unit breach the district
13. Power supply disconnection alarm
14. Movement alarm: You can set up barriers when the tracker stop, once moved, it can give an alarm to the authorized number.
15. Door open alarm
16. ACC alarm
17. Over speed alarm: You can set certain speed for monitored target, it will alarm when the target over speed
18. Low battery alarm function
19. Check the vehicle status
New functions:
1. Auto track continuously, Smart track both upon time and distance interval
2. Automatic update positions of vehicle turns: To web server and form a smooth trajectory consistent with the actual road
3. GPS drift suppression to positioning/locate/track more precise
4. Support SD card to data storage/logging
5. Support Data Load to platform function
6. Forward/Transmit the third parties' message
7. Charges Inquiry, Send SMS command "balance+password+space+phone number+space+content" to tracker to check the SIM card charges
8. Set Multi-area management to make the target under your eye control easily
9. Accident alarm (Option), When tracker detects accident occurred (severe impact), it will send " Accident! +latitude&longitude" to all authorized phone numbers.
10. ACC working alarm, it will inform you whether the ACC is on or off with Longitude and latitude information
11. Cut off the Oil and Power System/Stop vehicle engine or restart vehicle when the speed is less than 20km/h. (Stop vehicle engine upon car speed 20km/h)
12. TCP/UDP switch GPRS mode
13. Come with USB to Configure parameters
Package content:
GPS Tracker;
GPS Antenna(3 meters);
GSM Antenna(3 meters);
Microphone(1.5 meters);
10PIN Harness;
12V/40A to 24V/40A Relay;
Software CD;
English User manual;
Optional accessories:
Shock sensor;
Alarm Siren;
SD card 2GB;
Accident alarm;
USB cable;
Applying directions:
Vehicle fleet/logistics/Vehicle rental
content
| specification
|
Dim.
| 83*54*26mm
|
Weight
| 120 g
|
Network
| GSM/GPRS
|
Band
| 850/1800/1900Mhz or 900/1800/1900Mhz
|
GPS chip
| SIRF3 chip
|
GSM/GPRS
| gsm/gprs module
|
GPS sensitivity
| -159dBm
|
GPS accuracy
| 5m
|
Time to first fix
| Cold status 45s
Warm status 35s
Hot status 1s
|
Voltage of car power system
| 12V input
|
Battery
| Chargeable changeable 3.7V 800mAh Li-ion battery
|
Storage Temp.
| -40°C to +85°C
|
Operation Temp.
| -20°C to +55°C
|
Humidity
|
