| Prod Model: |
TK119-3g |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
45g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
Product Description
Product Description
Vehicle GPS Tracking device TK119-3G is warmly welcomed over the world.It is designed for positioning the vehicle anti-lost. It is widely applied for car, bus, taxi tracking because of compact size and good performance.
Selling point
1. Stop/Recover engine by SMS or website, APP safely.
2. Date logger to store 2,000 points offline waypoint.
3. TCP/UDP protocol available
4. Remotely OTA upgrade the firmware
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz,W850/W1900/W2100 MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS precise positioning with A-GPS and feedback position via network at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
Low battery alarm
Base Specifications
Voltage 12VDC/24VDC/36VDC
Work current <30mA@12V
Standby Curren <10mA@12V
GPS positioning accuracy 15m
GSM positioning accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s, <15s, <60s
Battery capacity 70mAh
Dimensions (mm) 87(L)X41.6(W)X 12(H)
Operating temperature -20º C~70º C
Operating humidity 20%~80%RH
Net Weight 42 g
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Main Function Table |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| WCDMA Frequency | W850/W190/W2100MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 70mAh |
| Dimensions (mm) | 87(L)X41.6(W)X 12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 42 g |

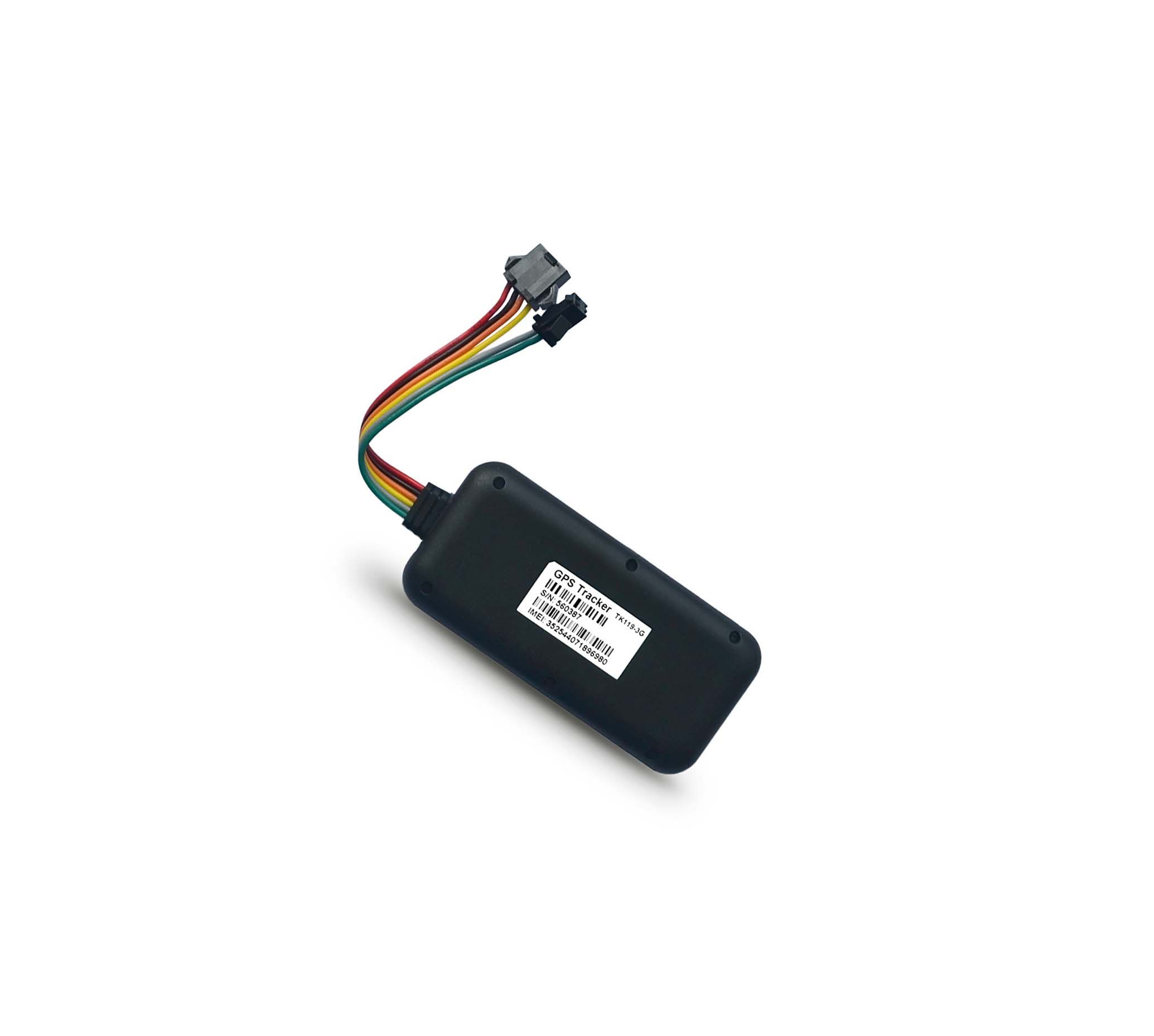

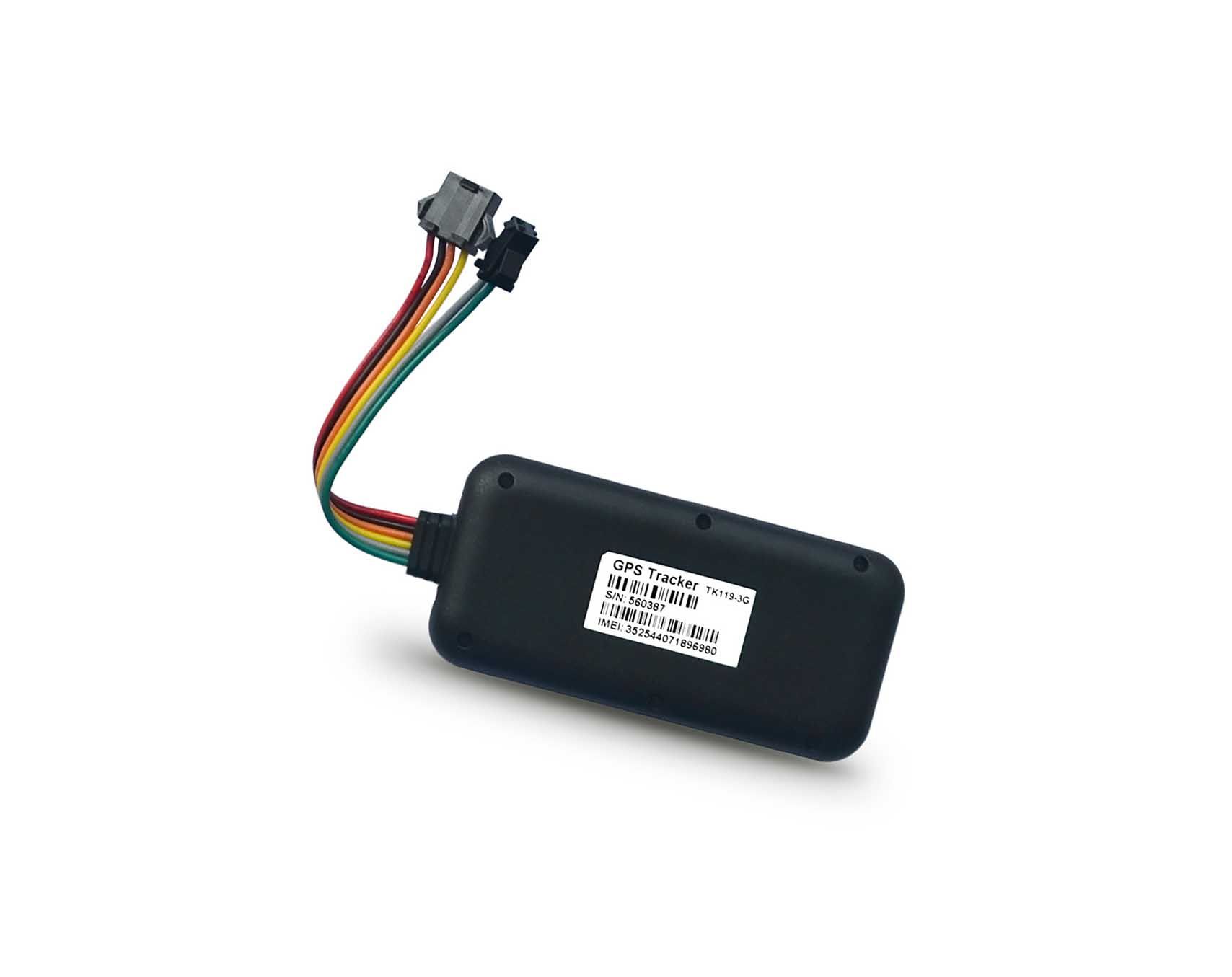

GPS tracker TK119-3g picture
