Vehicle GPS Tracker with Fuel Level Sensor, Fuel Monitoring

Name: Vehicle GPS Tracker with Fuel Level Sensor, Fuel Monitoring
Brand: all-electronics-online.com
SKU: 674494182
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 198/Piece
Trade Terms:	FOB,EXW
Min Order:	2/Piece
Pay Type:	T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP6000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Customized
Power:	DC 12-30V
Dimension:	103x71x25mm
Frenquency:	850/900/1800/1900MHz
Function:	Real-Time Tracking
Type:	GPS Tracker
Use:	Automotive
Brand:	Jointech
Screen Size:	1218229mm
Certification:	ISO9001, CE, FCC

Product Description

Model: GP6000 Vehicle GPS Tracker for GPS tracking Fleet Management

Example: Vehicle---B333

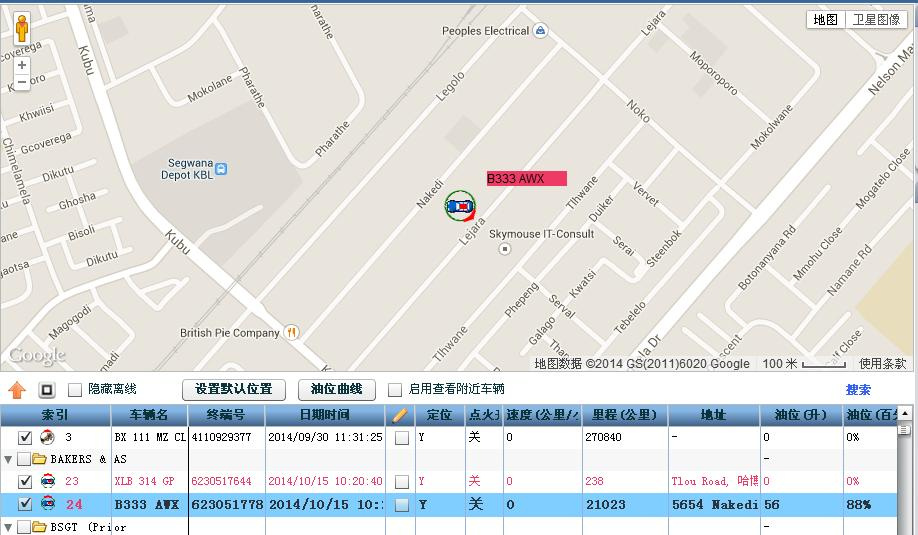

Real Time Tracking:

By choosing the vehicle in the list and then double click, you will see the locating is '5654 Nakidi', speed is '0', mileage is '21023km', fuel volume is '56L'

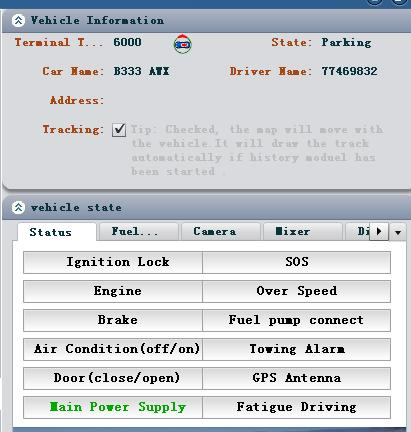

One the right side, you can check vehicle info and status:

State: 'Parking' , Driver name : '77469832' , vehicle status: ACC OFF, power supply : vehicle power supply

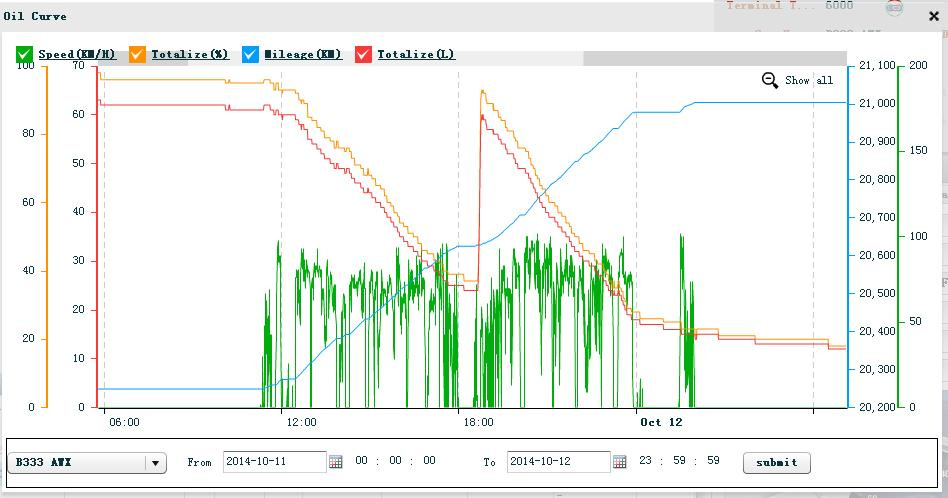

click 'oil curve', check the history fuel consumption of B333:

Green is speed, Red is fuel data, blue is mileage.

We can see around 12:00 ~ 24:00, truck is runing, fuel consumption is at one generally speed. at about 18:00, there's a refuel case about 40Liters

Type	Description
Basic function	Transmission Mode	TCP/UDP/SMS/GPRS
	Data flow control / Power saving mode	Factory Setting / Define by user / GPS module power off
	Intelligent time management of data uploading	Time reference / Week Reference /Day Reference
	Motion detection	Build-in 3D G sensor
	OTA	broken-point continuingly-transferring
	Mileage Statistics	GPS mileage / electronic mileage
	Remotely Listen-in	Active / Passive
	Geo fence	64
	Road / Polygon zone geo fence	100
	Hotspot	100
	Alarm type	GPS/SMS/EMAIL
	Domain name supported / build-in backup IP supported
	Blind area data uploading / history data intelligent uploading (43,200 pieces)
	GPS open/short circuit detection / GPS signal uploading in real time.
	Self-check, self-recovery, self-protection, build-in back up battery
	Alarms
	Data flow control / Power saving mode		Factory Setting / Define by user / GPS module power off
Alarm function	Enter/Exit geo fence alarm, overtime parking alarm, fatigue driving alarm, over speed alarm, SOS (panic button) alarm, backup battery starting alarm, illegal ignition alarm, harsh braking alarm, vehicle sliding in neutral gear alarm, fuel level change alarm, seat belt unfasten alarm, vibration alarm, tow alarm, hotspot alarm, deviation from the route alarm, over speed in certain road alarm, over speed in zone alarm, late alarm, earlier arrival alarm, temperature change alarm, tire pressure change alarm.
External Device Function	MDT (dispatching board)	Two way voice/SMS communication, dispatching.
	High precision fuel level sensor	multi Analog/digital,
	CCD camera	6 cameras supported
	RFID/Password keyboard/Scanner/Temperature sensor/Tire pressure sensor/Active RFID/Door sensor/Drum rotation sensor
Control function	Remotely cutting off the fuel pump / 5 output control define by user
I/O Port	6 Switch signal input(4high level trigger, 2 low level trigger)
	1 Analog signal input(0-5v)
	1 Pulse signal input (<3.8v,2KHZ )
	5 switch signal output
	3 RS232 Serial port
	2 Intelligent programmable port(I/O,A/D)
Parameters	Dimension(L×W×H)	121×82×29mm
	Weight	820g (with standard accessories)
	Working current	60-100mA
	Working voltage	10-30V
	Backup battery	8.4V 400mAh NI-MH battery
	GPS chip	SIRF Star III
	GSM	850/900/1800/1900 Mhz

Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
