| Prod Model: |
TK119-3g |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Optional Accessory: |
Relay |
| Battery Capacity: |
70mAh |
| Wiring Tracker: |
Yes |
| Map Type: |
Google Map |
| WCDMA Frequency: |
W850/W1900/W2100MHz |

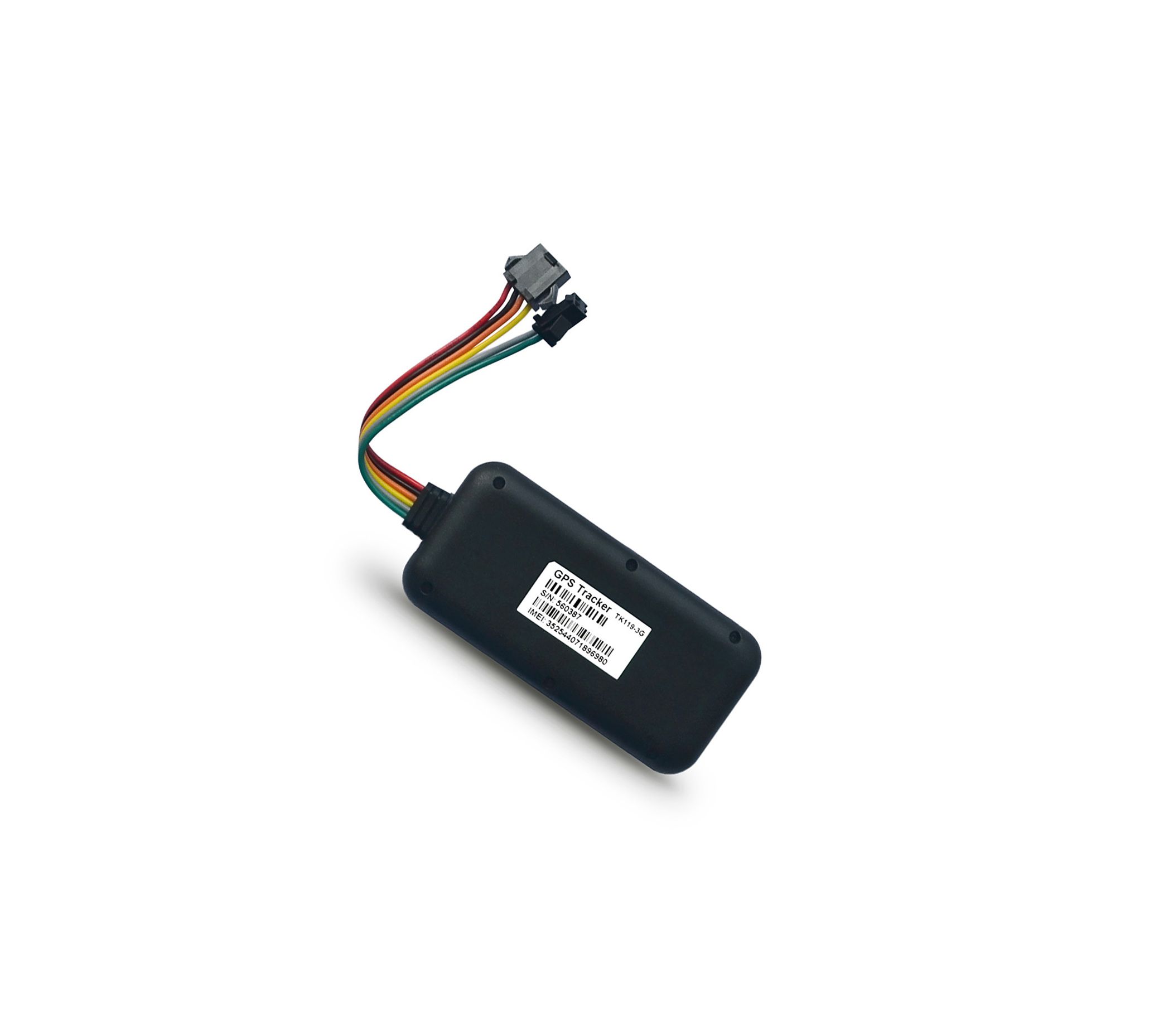

Product Description
Specifications
*Realtime vehicle tracking system
*Fleet Management Solution
*Multiple kinds of Alarm
*OTA software update
Applications
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Suppoert 3G network,WCDMA Frequency:W850/W1900/W2100MHz
*Wide Input Voltage: 6-36V DC.
*GPS + GSM/WCDMA (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Water proof level IP67
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements.
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
| Brand | Eelink |
| Model | TK119-3G |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS,PC |
| Network | GSM,WCDMA |
| Band | 850\900\1800\1900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | No |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | No |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35ºC~75ºC |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
