| Prod Model: |
maintenance report Car tracker GPS105B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Weight: |
170g |
| Size: |
85mm*71mm*26mm |
| Shipment: |
DHL, UPS, EMS, TNT, FedEx, Hkpost etc |
| Carton Size: |
53.4cm*39.9cm*30.4cm |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| GSM Frequency: |
850/900/1800/1900MHz |
| Important Functions: |
Camera, RFID, Central Lock System etc |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Camera Car GPS105b |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
Vehicle GPS Tracker with Maintenance Report Fleet Tracking GPS System1.Features and Functions*Auto photograph
*Auto tracking continuously
*Auto store the tracking information with SD card
*Support data upload to monitor platform
*Geo-fence
*Real-time tracking online
*Support free PC platform and web-server
*SOS panic
*Fuel detection alarm when the fuel decrease by 8% in three minutes.
*
Temperature detection alarm. You can set up a temperature to the tracker, once exceeded, it will send SMS alarm to your cell phone. The available temperature range is from -050C to +125C.
*View
photos on cell phone by sending SMS command and then you will get HTTP links to see photo.
*Alarms in GSM Blind Area. The siren will sound in Non quite mode if DOOR/SHOCK SENSOR/ACC/OIL alarms are triggered
*Power off alarm when the power be cut off or the voltage is 0V
*ACC alarm, Door alarm, Shock sensor alarm when at ARM state.*Power -cut and restore alarm by SMS
*Oil-cut and restore alarm by SMS*Anti-theft for 24 hours a day
*SOS panic alarm
*Voice Surveillance. When the tracker stay in "monitor" mode, you can call the tracker and hear the voice of remote target.
*Geo-fence alarm. Set up a geo-fence for the tracker to restrict its movements within a district.
*Movement alarm. (default distance is 200m)
*Overspeed alarm. To restrict the speed of the tracker and control it well
*Low battery alarm. It will remind you to charge the unit in time.
*Single Locating by calling the tracker
*Auto Track by sending SMS commands
*Location based service (LBS), when there is no GPS signal, it will be located by LBS.
*Get accurate street address by sending SMS "address+password".
*SMS and GPRS two modes switch freely as you like
*Setting local time of the unit by SMS
2.Applications:Used widely for vehicle and other moving objects tracking.

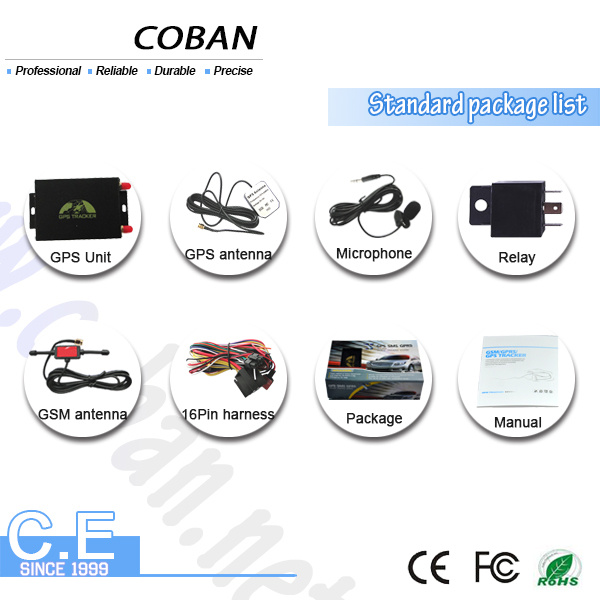

3.standard accessories
Optional Accessories:Shock sensor;
Alarm siren;
Remote controller
Camera;
Fuel sensor;
Temperature sensor.
4.Specifications| Content | Specifications |
| DIM | 85*71*26mm |
| Weight | 170g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Sim900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |

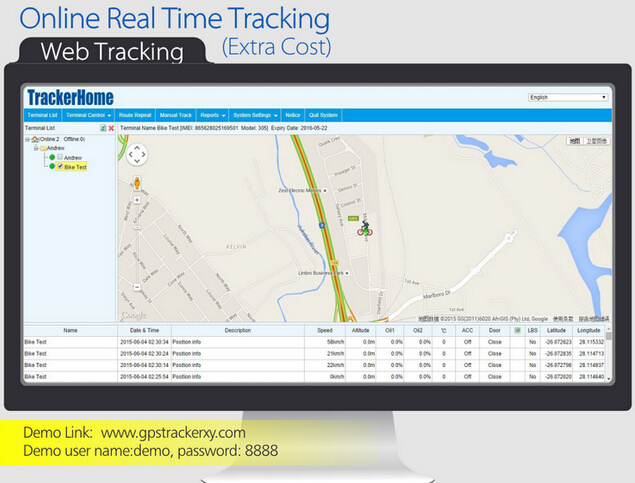

5.Real time track in Web platform/Android &iphone APP TrackerHome with GOOGLE map: Welcome to visit our server www.gpstrackerxy.com , please login in by IE browser,choose server 1,User ID: demoPassword: 8888One year FREE tracking in platform and Android/Ios app is provided US$3/pc yearly after one year
App tracking

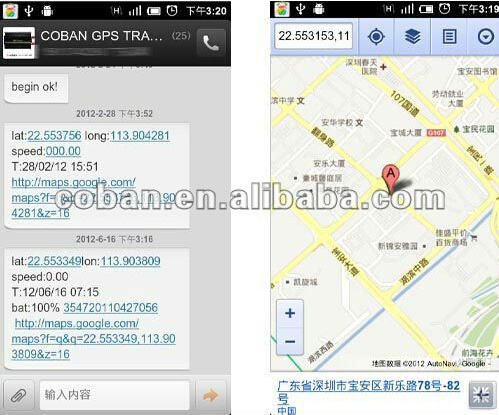

SMS Tracking with google map link
