| Prod Model: |
tk116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk116 |
| Color: |
Black |
| Weight: |
45g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Accessories: |
Sos Cable, Microphone, Relay |
| Position Mode: |
GPS Lbs |
| Chip: |
Mediatek |
Product Description
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor for vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle...
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
Main Function
Brand Eelink
Model TK116
Quantity 1 piece(s)
Color Black
Material ABS
Network GSM
Band 850\900\1800\1900 MHz
SIM Card Qty. One SIM
Tracking Information MethodMonitoring and controlling platform
Power Supply DC 6~36V
GPS Chip SIRF
GPS Sensitivity-163 dB
GPS Channe l20
Position Accuracy 10 m
Altitude Limit 18000 m
Hot Start 3 seconds
Warm Start 15 seconds
Cold Start 60 seconds
SOS Yes
Geo-fence Yes
Vibrating Alerts Yes
Remote Monitoring Yes
Engine Cut Off Yes
Realtime Monitoring Yes
Track Playback Yes
ACC Anti-Theft Yes
Overspeed Alerts Yes
Low Battery Alerts Yes
GPS Blind Area Alarm Yes
Voice Cal lNo
Waterproof Function Yes
Waterproof Rate Daily user water resistant
Working Temperature -20~70'C
Working Humidity 20%~80%
Manufacturer's Warranty 12 Months excluding physical damages (see specifications for terms and details)
Certification CE
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Accessories (Optional)
Relay/ Microphone/SOS
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500PCS or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000PCS stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Base Specification |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 200mAh |
| Dimensions (mm) | 79.5(L)X38.5(W)X10.5(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 45 g |

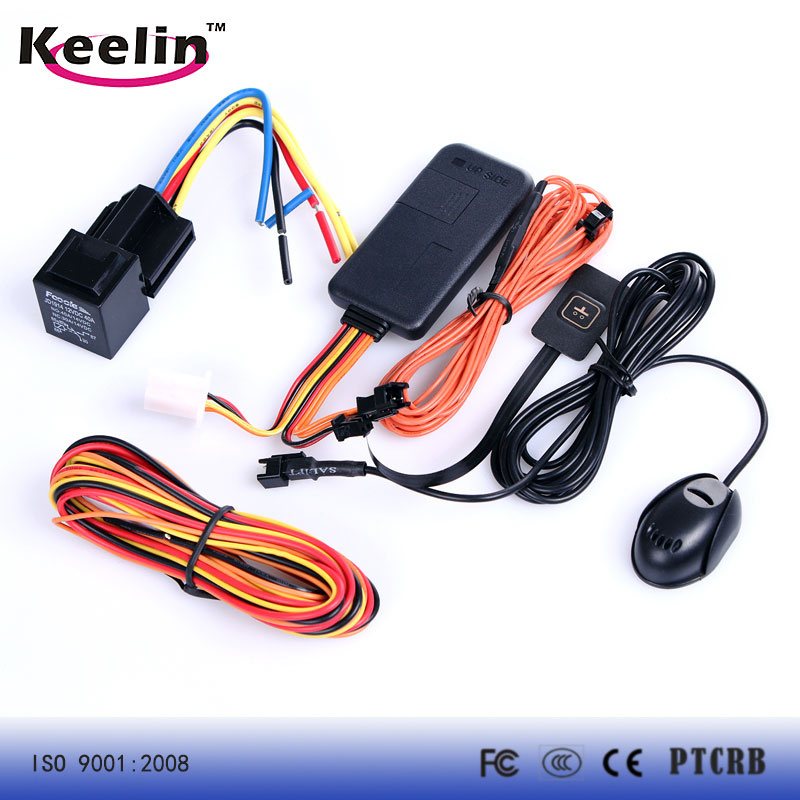

Vehicle GPS tracker picture
