| Prod Model: |
GSM Avl Tracking system tk105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Car Tracking System: |
GSM GPRS GPS Tracking |
| Feature: |
Remote Stop Car, Camera, RFID, Speed Limit |
| Remote Controller: |
Optional |
| Tracking Way: |
Google Map or Our Web Platform |
| Delivery Time: |
2-3 Business Days |
| Shipment: |
by Express or by Air |
| Network: |
GSM/GPRS |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| OEM: |
Support Customized Logo Brand |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
No |
| Model: |
Tk105 GPS Tracker with RFID |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description

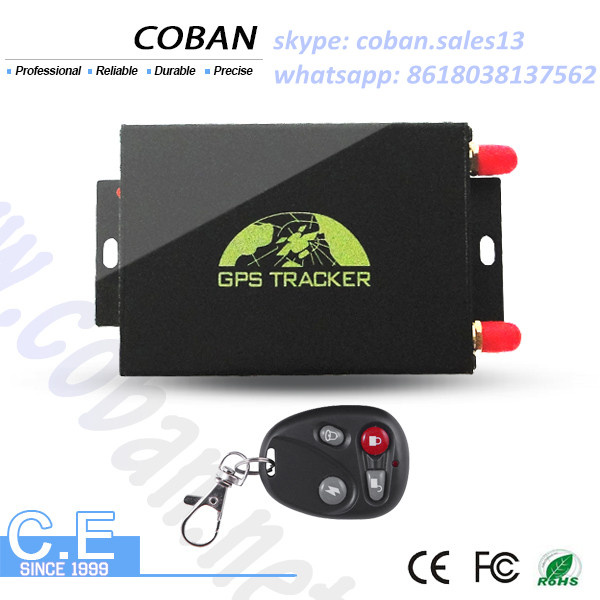

Model: GPS tracker TK-105A /B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* GPS/LBS (location based service) double way tracking solution.
* SMS/GPRS/Internet Network data transmission.
* Configure by remote terminal, remote control vehicle.
* Snapshoot photo automatically when alarm triggered
* RFID.
* Fuel level measurement, Oil leakage or theft alarm.
* Vehicle Speed Detection.
* Kilometrage report.
* Tracking and monitoring by SMS, web server and mobile app
3. Main Function discription
*Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
4. Optional function:
*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
Optional functions:
Quiver alarm
Siren/horn
Fuel sensor alarm
Applying directions:
Vehicle fleet/logistics/Vehicle rental
Technology parameter:
GPS chip: SIRF3chip
GPS sensitivity: -159dBm
GPS accuracy: 5m
Time To First Fix Cold status 45s, Warm status 35s, Hot status 1s
And there is 4 tracking solutions:
SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
Get absolute address by SMS
PC Installation software tracking.
Web server online tracking
1 Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |
