| Prod Model: |

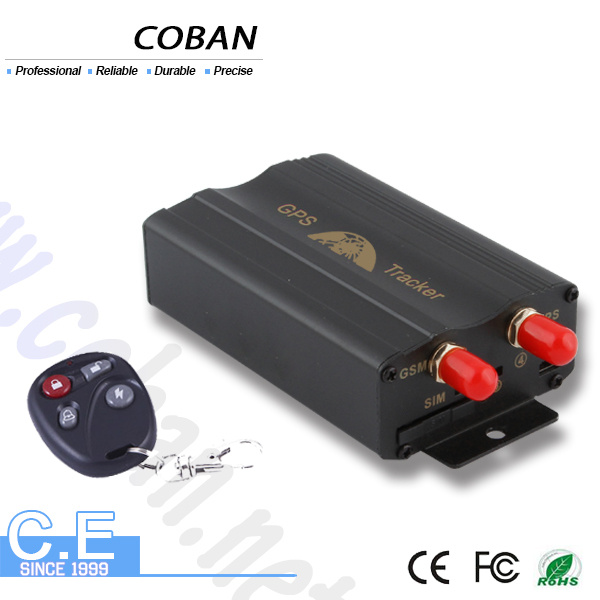

Vehicle GSM GPS GPRS Tracker Tk103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
GPS Tracker |
| Memoery SD Card: |
Yes |
| Sos Alarm: |
Yes |
| Warranty: |
12month |
| Certificate: |
Ce FCC |
| Delivery Time: |
2-3 Business Days |
| Anti Theft Car Security: |

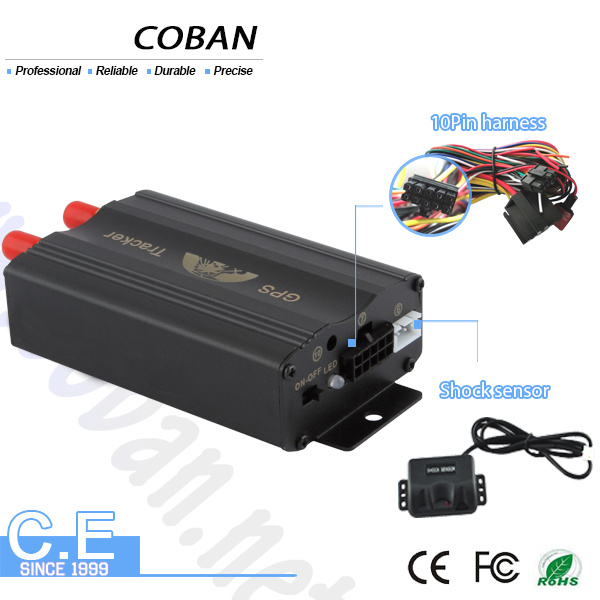

Engine Shut, Acc/Shock/Door Alarm, Fuel Monitor |
| GPS Accurate: |
5 Meter |
| OEM/ODM: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPRS Tracker Tk103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Wholesale Vehicle GSM GPS GPRS Tracker Tk103 with Real Time TrackingMain Function Description Applying directions: Vehicle fleet/logistics/Vehicle rental
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
Support both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
3. Main Function Description

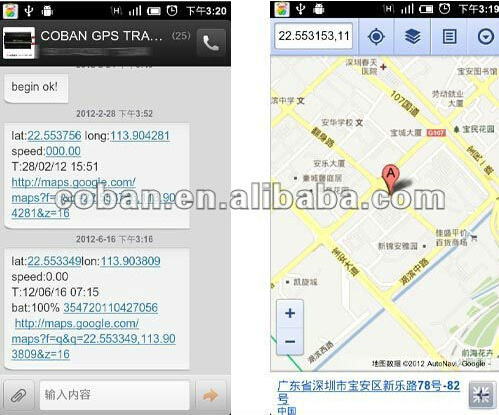

1. Show location directly on mobile phone withHTTP Google map link
2. Get physical location in real street/address name
3.Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5.USB configuration (option)
6.SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9.Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking

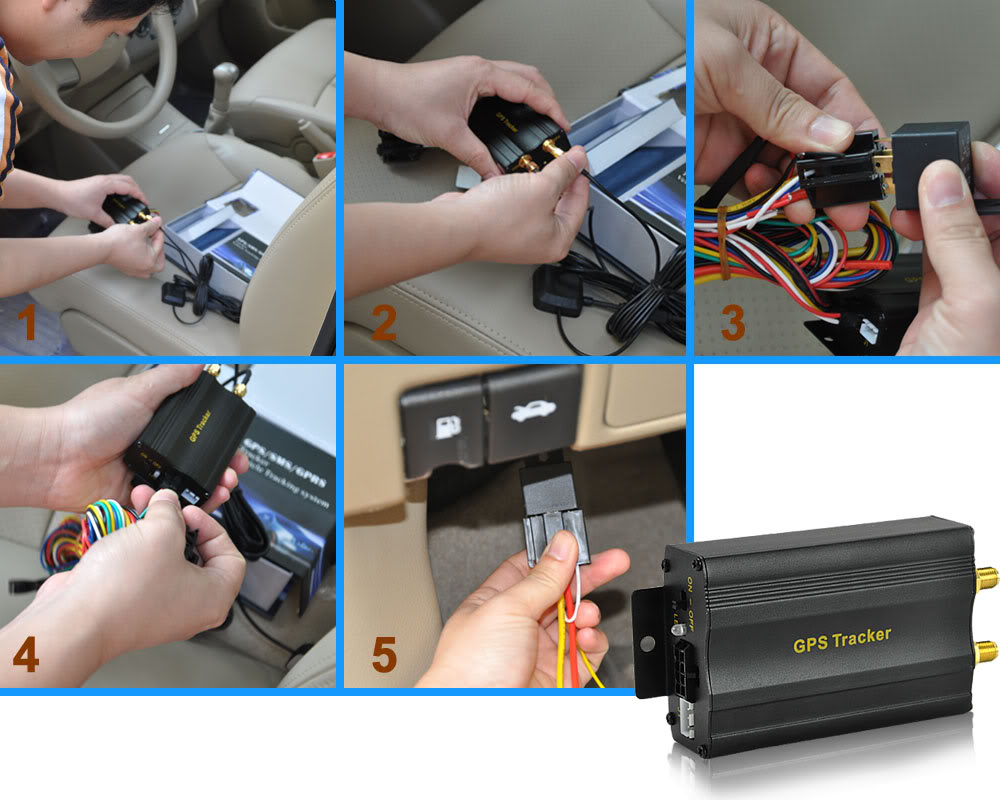

GPS Tracker installation
vehicle gps tracker TK103 specifications
Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing
|

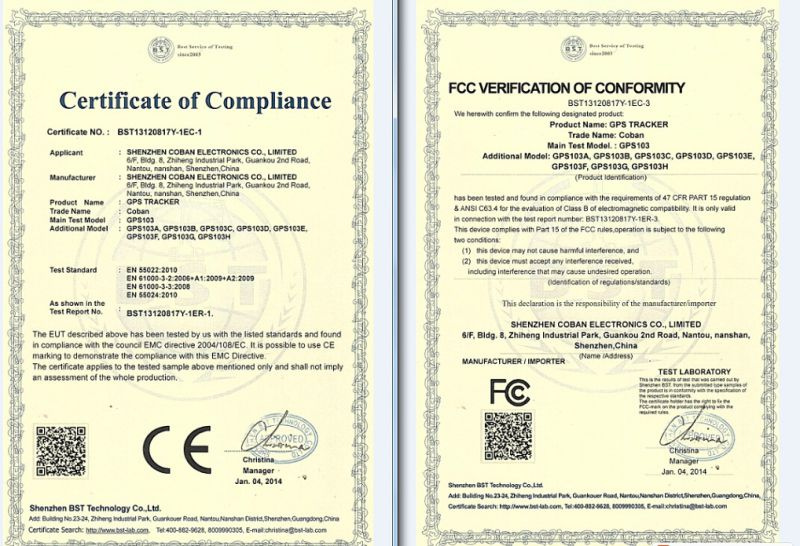

certifications
How to tracking ? The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;

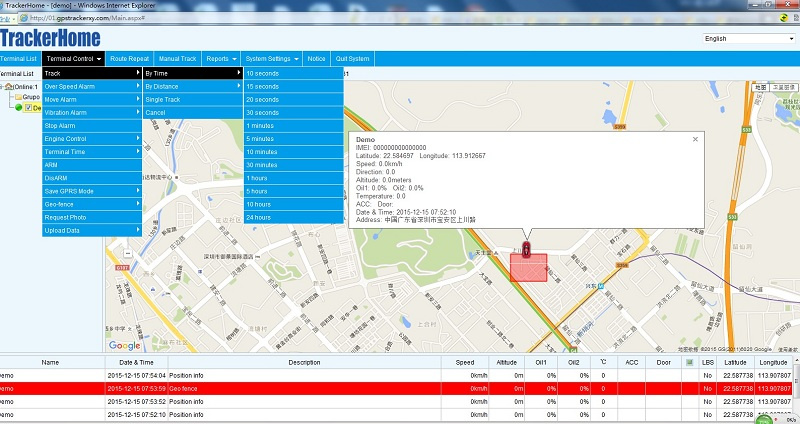

C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
FAQ
Q:What is the MOQ?
A:500pcs for our own available designs
Q:Can i mix different designs
A:NO
Q:Can i get a lower price if I order large quantities?
A:YES,cheaper prices with more bigger size orders
Q:Can i get the pre-production sample ?
A:yes ,for OEM order,it is ok to send samples for confirmation before mass
production
Q:When you ship my order ?
A:Normally 3-5days after receiving deposit,but it can be negotiated based on order
qty and production schedule
How to contact us ?
1.Send your Inquiry Details in the Below , Click "Send" Now !
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
