| Prod Model: |
TK105A GPS tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
92*71*26mm |
| Weight: |
120 |
| Feature: |
Support Camera, RFID, Fuel Sensor, Speed Limited |
| Backup Battery: |
Yes |
| OEM: |
Yes |
| Delivery Time: |
2-3 Days |
| Warranty Time: |
12 Months |
| Network: |
GSM/GPRS |
| Certificate: |
Ce FCC ISO |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Model: |
105A |
| Brand: |
Coban/Neutral |
Product Description

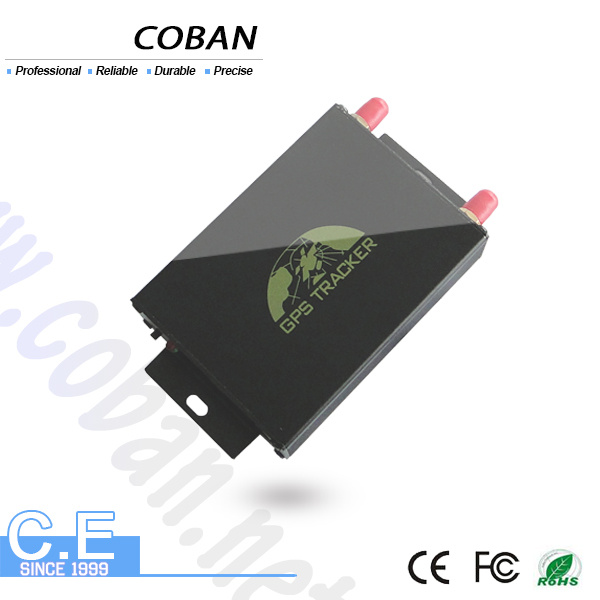

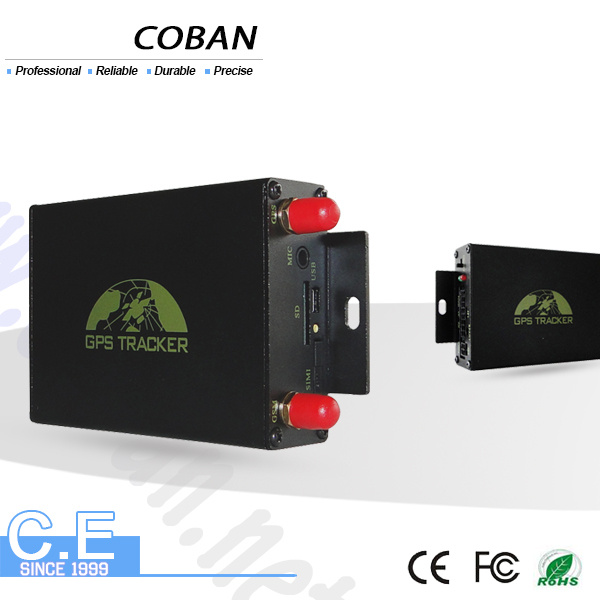

Model: GPS tracker TK-105A /B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. SummaryThis tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features -For all vehicles (12V-24V)
-Location based service(LBS) + GPS double real time trackingsolution,monitor
-Dual simcard switch automatically
-ARM & DISARM, LOCK / UNLOCK the car door BY SMS
-ARM & DISARM, LOCK / UNLOCK the car door by remote controller
-remote shutdown vehicle engine and resume
-Support camera,automatically photograph when alarm is triggered,anti theft
-Support RFID for ID identification,for example to know which student on a school bus
-Mileage report
-speed governor (optional )
For example you set 60km/h , send command "max+password 060". E.g max123456 060, 123456 is the password, 060 is the speed. and you run the car to the 100km/h,the relay of device will be activated and make your speed to 60km/h.The function is optional and need the speed sensor to support this function.
-GPS blind spot alert
-Power save mode, less gprs traffic mode
-Automatic update positions of vehicle turns
-SOS,Geo fence, movement alert, over speed alert, low battery alert and power off alert
-Fuel alarm, shock sensor alarm, ACC alarm, door alarm, SOS alarm
-tempreture sensor
-stop the car engine and resume remotely
3. Main Function discription*Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
4. Optional function:
*Central locking relay
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID

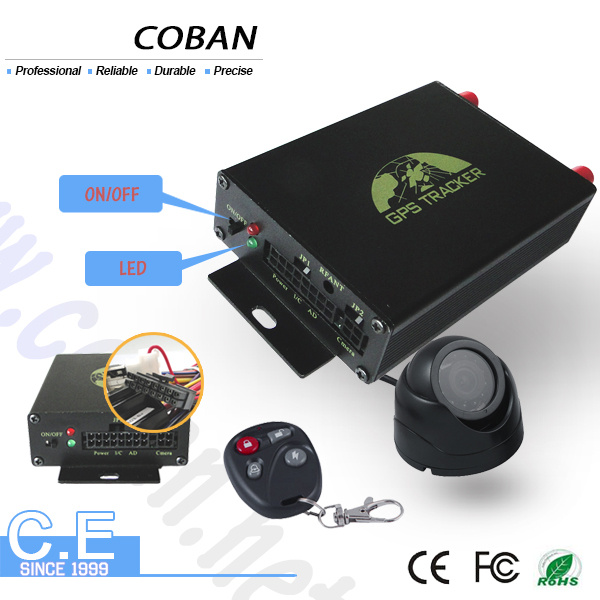

Standard accessories:
GPS Unit
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
Package
Optional accessories:
Shock sensor
Alarm siren
Microsd memory card
Fuel sensor
Central locking relay(2 in 1set)
Accident sensor
RFID,
Camera,
Speed sensor (Pleasespecify when place order, need to mount on mainboard)
Specification:
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |
