| Prod Model: |
DC Gear Motor GM37-3530-EN |
| Product Name: |
DC Gear Motor GM37-3530-EN |
| Gear Type: |
Straight Teeth |
| Output Shaft: |
Stainless Steel Hardened |
| Rotating Direction: |
CCW/CW |
| Main Gear: |
Stainless Steel Hardened |
| Basilar Plate: |
Copper |
| Axial Play: |
0.05-0.5mm |
| Operating Temperature Range: |
-20°c-+50°c |
| Recommended Input Speed: |
<14000rpm |
| Max. Permissible Axial Load: |
<2 N |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Function: |
Totally Enclosed |
| Type: |
DC Gear Motor |
| Certification: |
RoHS CE |
| Brand: |
TT Motor |
Product Description

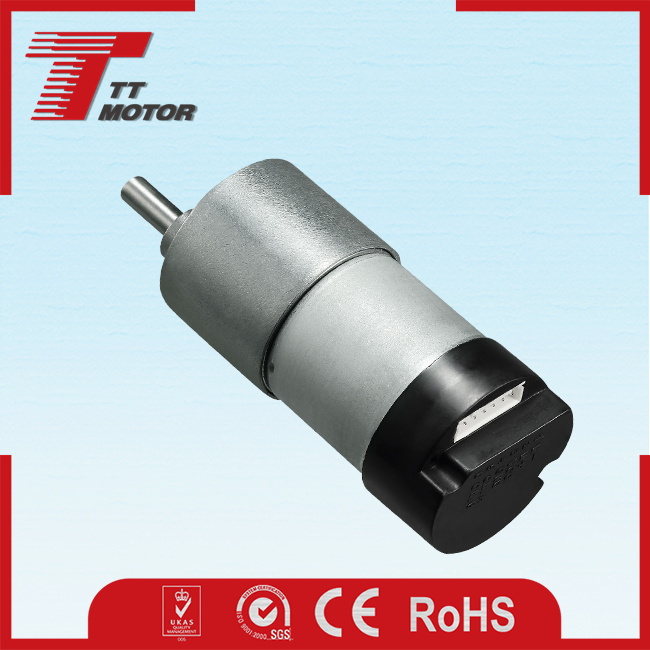

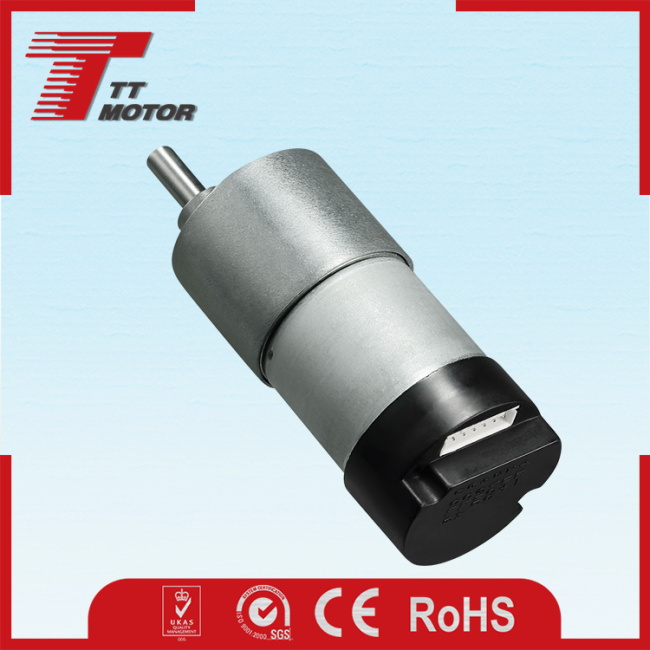

Ventilation devices 12V dc electric gear motor with encoder
Main Features
| 1.OEM/ODM 37mm Eccentric out shaft gearbox plus 520 & 3530 & 3527 and TEC3650 &3640 brushless motor |
| 2.Small size dc gear motor with low speed and big torque |
| 3.37mm gear motor provide 1.0Nm torque and more reliable |
| 4.Suitable to small diameter, low noise and big torque application |
| 5.Dc Gear motors can match encoder,11ppr |
| 6.Reduction ratio:6,10,19,30,44,56,90,131,169,270,506,810 |
Motor technical data
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TRK-3530-1240 | 12 | 4000 | 35 | 3300 | 40 | 180 | 1.4 | 220 | 1.0 |
| TRK-3530-1250 | 12 | 5000 | 45 | 4200 | 40 | 250 | 1.8 | 250 | 1.2 |
| TRK-3530-2460 | 24 | 6000 | 30 | 5300 | 50 | 180 | 3.1 | 400 | 1.3 |

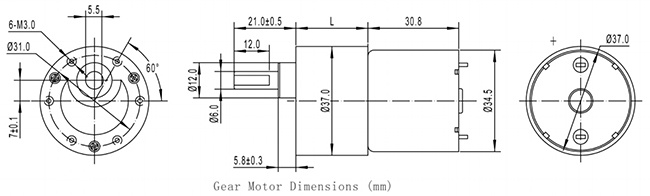

Gear motor technical data GM37-3530-1240-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 600 | 360 | 120 | 85 | 65 | 45 | 24 | 15 | 8 | 5 |
| Rated speed rpm | 550 | 330 | 110 | 85 | 65 | 45 | 24 | 15 | 6 | 4 |
| Rated torque kg.cm | 0.2 | 0.3 | 0.8 | 1.1 | 1.3 | 2.2 | 3.7 | 5.4 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 1.1 | 1.8 | 4.6 | 5.8 | 7.4 | 10 | 15 | 15 | 15 | 15 |
Gear motor technical data GM37-3530-1250-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 800 | 490 | 165 | 110 | 88 | 55 | 30 | 18 | 10 | 6 |
| Rated speed rpm | 670 | 420 | 140 | 95 | 75 | 46 | 25 | 16 | 8 | 5 |
| Rated torque kg.cm | 0.2 | 0.3 | 0.8 | 1.1 | 1.3 | 2.2 | 3.7 | 5.4 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 1.1 | 1.8 | 4.6 | 5.8 | 7.4 | 10 | 15 | 15 | 15 | 15 |
Gear motor technical data GM37-3530-2460-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 950 | 570 | 190 | 130 | 100 | 65 | 35 | 26.5 | 29 | 29 |
| Rated speed rpm | 880 | 530 | 175 | 120 | 95 | 59 | 35 | 22 | 10 | 7 |
| Rated torque kg.cm | 0.24 | 0.4 | 1.1 | 1.3 | 1.7 | 2.7 | 4.6 | 6.7 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 1.9 | 3.2 | 8.4 | 10.6 | 13.4 | 15 | 15 | 15 | 15 | 15 |
Product Application
| Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |
Related Products
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country
