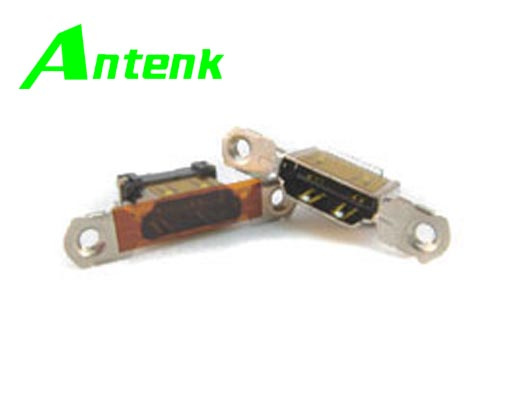

Vertical Economical Type HDMI Connector

Name: Vertical Economical Type HDMI Connector
Brand: all-electronics-online.com
SKU: 649992195
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 0.22-0.28/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDMI
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Application:	Communication
Installation Mode:	Clamshell-Type T-Flash Jack
Type:	SD+MMC+MS+Xd+Minisd+TF Jack
Interface Type:	USB
Shape:	Rectangular
Production Process:	Injection
Customized:	Non-Customized
Working Frequency:	High Frequency
Feature:	Fire/Flame Retardant

Product Description

HDMI Vertical Economical type connector

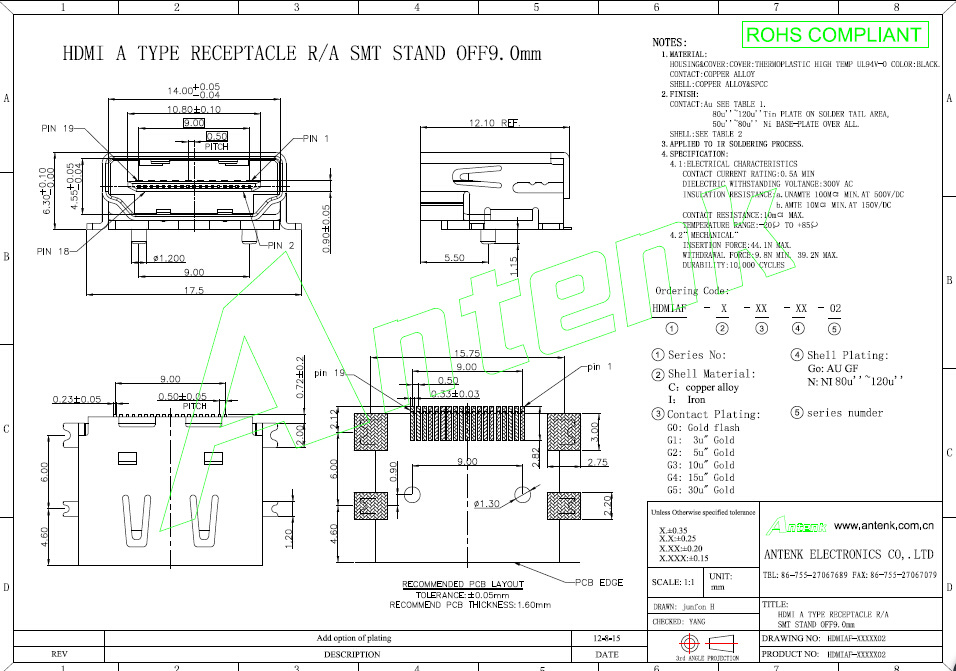

HDMI 19 POS. Vertical Receptacle SMT Type, 19POS, w/ wing economical Connectors

Feature:
HDMI is the first industry-supported, uncompressed, all-digital audio/video interface.
HDMI provides an interface between any audio/video source.
HDMI supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.
It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements.
HDMI is full backward-compatible with DVI that handles digital transfers at rates up to 5 Gbps!

Electrical:
Contact Current Rating: 0.5A Min
Voltage Rating: 40V AC(RMS)
Withstanding Voltages: 500V AC (for 1 minute)
Insulation Resistance: 100M ohms Min.
Contact Resistance: 30m ohms Max.

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
