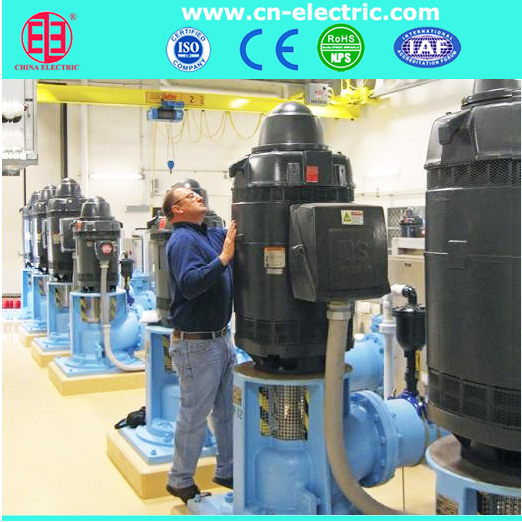

Vertical Hollow Shaft Motor for Deep Well Pump
| Price: |
US $ 100-200000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
VHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
10HP-500HP |
| Efficiency: |
Ie1, Ie2 |
| Structure: |
Vertical Hollow Shaft |
| Winding: |
100% Red Copper |
| Protection: |
IP23, IP44, IP54, IP55, IP56 |
| Driving: |
Vertical Deep Well Turbine Pump |
| Voltage: |
380V-11kv |
| Cooling Method: |
IC01, IC410, IC411 |
| Insulation Class: |
F, H |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Starting Mode: |
Soft Starter |
| Species: |
Vhs Vertical Hollow Shaft Type |
| Rotor Structure: |
Squirrel Cage, Slip Ring |
| Casing Protection: |
Open Type, Closed Type |
| Number Of Poles: |
2,4,6,8,10 |
| Certification: |
NEMA |
| Brand: |
China Electric |
Product Description
Rated Power: 5.5Kw~220Kw, IEC standard;
10Hp~500Hp, NEMA standard
Rated Speed: 3000rpm, 1500rpm, 1800rpm
Vertical hollow shaft electric motor, the latest product of our factory, is three phase ac synchronous induction motor, especially for driving vertical deep well turbine pump.
This kind of motor is of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc.
The rated output grades conform to the IEC standard or NEMA standard.
After being fitted with vertical pumps, the motors are widely used in pumping underground water in mines, city, farm and factories etc.
Protection: weather-protected type1 (drip-proof), IP54, IP55.
Technical parameter:
a. For IEC standard
Model |
Rated power |
Rated current |
Rated voltage |
Rated frequency |
Speed |
Efficiency |
Kw |
Hp |
A |
V |
Hz |
R/min |
% |
VHS132-1-2 |
5.5 |
7.5 |
11/10.8 |
380 |
50 |
3000 |
83.8 |
VHS132-2-2 |
7.5 |
10 |
14.4/14.5 |
380 |
50 |
3000 |
84.8 |
VHS160-1-2 |
11 |
15 |
22.5/22 |
380 |
50 |
3000 |
84.5 |
VHS160-2-2 |
15 |
20 |
30 |
380 |
50 |
3000 |
85.5 |
VHS160-1-4 |
11 |
15 |
23/22.5 |
380 |
50 |
1500 |
86.5 |
VHS160-2-4 |
15 |
20 |
30 |
380 |
50 |
1500 |
87.5 |
VHS180-1-2 |
18.5 |
25 |
36 |
380 |
50 |
1500 |
87 |
VHS180-1-4 |
18.5 |
25 |
37 |
380 |
50 |
1500 |
88 |
VHS180-2-2 |
22 |
30 |
43/42.5 |
380 |
50 |
1500 |
87.5 |
VHS180-2-4 |
22 |
30 |
43.5/43 |
380 |
50 |
1500 |
88.5 |
VHS200-1-4 |
30 |
40 |
58/58.5 |
380 |
50 |
1500 |
89.5 |
VHS200-2-4 |
37 |
50 |
72/71 |
380 |
50 |
1500 |
90 |
VHS200-3-4 |
45 |
60 |
85/85.5 |
380 |
50 |
1500 |
90.5 |
VHS250-1-4 |
55 |
75 |
105.5/103.5 |
380 |
50 |
1500 |
91 |
VHS250-2-4 |
75 |
100 |
139.5/140 |
380 |
50 |
1500 |
91.5 |
VHS250-3-4 |
90 |
125 |
173/167.5 |
380 |
50 |
1500 |
91.5 |
VHS280-1-4 |
110 |
150 |
205.5/202 |
380 |
50 |
1500 |
92 |
VHS280-2-4 |
132 |
175 |
238/241 |
380 |
50 |
1500 |
92.5 |
VHS280-3-4 |
150 |
200 |
275/276 |
380 |
50 |
1500 |
92.5 |
VHS280-4-4 |
185 |
250 |
348/345 |
380 |
50 |
1500 |
92.5 |
VHS280-5-4 |
200 |
270 |
374/371 |
380 |
50 |
1500 |
93 |
VHS280-6-4 |
220 |
300 |
415/408 |
380 |
50 |
1500 |
93 |
b. For NEMA standard
Type | Rated
output | Rated
speed | Current at 460 V | Locked
rotor
torque | Rated
eff. | Power
factor | Nema
code
letter | Torque | Downthrust |
Full
load | Locked
rotor | Locked
rotor | Break
down | Standard | Extra |
| of full load |
| HP | r/min | A | A | Lb-Ft | % | % | | % | % | lb | lb |
| VHS215TP-4-010S | 10 | 1765 | 13.1 | 78 | 30 | 85.2 | 83 | G | 170 | 200 | 2500 | 2500 |
| VHS254TP-4-015S | 15 | 1765 | 18.6 | 116 | 44.7 | 89 | 83.5 | G | 170 | 200 | 3200 | 3200 |
| VHS256TP-4-020S | 20 | 1772 | 24.4 | 145 | 59.7 | 89 | 85 | G | 170 | 200 | 3200 | 3200 |
| VHS284TP-4-025S | 25 | 1772 | 30.2 | 183 | 74 | 90 | 85 | G | 160 | 200 | 3200 | 3200 |
| VHS286TP-4-030S | 30 | 1772 | 35.8 | 217 | 89.2 | 90 | 86 | G | 160 | 200 | 3200 | 3200 |
| VHS324TP-4-040S | 40 | 1772 | 46.4 | 276 | 119 | 91.5 | 87 | G | 160 | 200 | 5500 | 8800 |
| VHS326TP-4-050S | 50 | 1772 | 58 | 363 | 149 | 91.5 | 87 | G | 160 | 200 | 5500 | 8800 |
| VHS364TP-4-060S | 60 | 1775 | 70.2 | 433 | 177 | 92.5 | 87 | G | 150 | 200 | 5600 | 8960 |
| VHS365TP-4-075S | 75 | 1775 | 86.2 | 530 | 222 | 92.5 | 87 | G | 150 | 200 | 5600 | 8960 |
| VHS404TP-4-100S | 100 | 1775 | 116.2 | 724 | 297 | 93.1 | 87 | G | 150 | 200 | 6700 | 10750 |
| VHS405TP-4-125S | 125 | 1775 | 140.6 | 892 | 370 | 93.3 | 88 | G | 150 | 200 | 6700 | 10750 |
| VHS444TP-4-150S | 150 | 1778 | 168.4 | 1074 | 443 | 93.5 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS444TP-4-175S | 175 | 1778 | 196.5 | 1295 | 522 | 93.5 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS445TP-4-200S | 200 | 1778 | 228 | 1442 | 590 | 93.8 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS445TP-4-250S | 250 | 1778 | 279.2 | 1826 | 738 | 94 | 88 | G | 140 | 175 | 8000 | 12800 |
| VHS447TP-4-300S | 300 | 1778 | 329.5 | 2187 | 882 | 94.5 | 89 | G | 140 | 175 | 8000 | 12800 |
| VHS5006P-4-300S | 300 | 1780 | 329.5 | 2187 | 882 | 94.5 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5006P-4-350S | 350 | 1780 | 383.2 | 2496 | 1029 | 94.8 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5008P-4-400S | 400 | 1780 | 435.7 | 2858 | 1176 | 95.3 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5008P-4-450S | 450 | 1780 | 489.6 | 3278 | 1323 | 95.4 | 89 | G | 100 | 175 | 8750 | 14000 |
| VHS5008P-4-500S | 500 | 1780 | 543.4 | 3687 | 1470 | 95.5 | 89 | G | 100 | 175 | 8750 | 14000 |
Mounting dimensions:
Type | Rated
output
(HP) | Mounting Dimension (inch) | Overall Dimension (inch) |
| BD | AJ | AK | BF | BX | BZ | EW | R | BY | CD | EO> | P | AB | AG |
|
| VHS215TP-4-010S | 10 | 10 | 9.125 | 8.25 | 0.44 | 1 | 1.38 | 0.25 | 1.13 | 10-32 | 17.56 | 3.22 | 13.6 | 10.2 | 21.3 |
| VHS254TP-4-015S | 15 | 10 | 9.125 | 8.25 | 0.44 | 1 | 1.38 | 0.25 | 1.13 | 10-32 | 23.38 | 3.22 | 15.2 | 11.1 | 28.1 |
| VHS256TP-4-020S | 20 | 10 | 9.125 | 8.25 | 0.44 | 1 | 1.38 | 0.25 | 1.13 | 10-32 | 23.38 | 3.22 | 15.2 | 11.1 | 28.1 |
| VHS284TP-4-025S | 25 | 10 | 9.125 | 8.25 | 0.44 | 1 | 1.38 | 0.25 | 1.13 | 10-32 | 24.75 | 3.22 | 15.2 | 11.1 | 29.5 |
| VHS286TP-4-030S | 30 | 10 | 9.125 | 8.25 | 0.44 | 1 | 1.38 | 0.25 | 1.13 | 10-32 | 24.75 | 3.22 | 15.2 | 11.1 | 29.5 |
| VHS324TP-4-040S | 40 | 16.5 | 14.75 | 13.5 | 0.69 | 1.25 | 1.75 | 0.25 | 1.367 | 1/4-20 | 28.22 | 4.22 | 17.3 | 12.7 | 32.7 |
| VHS326TP-4-050S | 50 | 16.5 | 14.75 | 13.5 | 0.69 | 1.25 | 1.75 | 0.25 | 1.367 | 1/4-20 | 28.22 | 4.22 | 17.3 | 12.7 | 32.7 |
| VHS364TP-4-060S | 60 | 16.5 | 14.75 | 13.5 | 0.69 | 1.25 | 1.75 | 0.25 | 1.367 | 1/4-20 | 31.16 | 4.56 | 19.1 | 14.4 | 36 |
| VHS365TP-4-075S | 75 | 16.5 | 14.75 | 13.5 | 0.69 | 1.25 | 1.75 | 0.25 | 1.367 | 1/4-20 | 31.16 | 4.56 | 19.1 | 14.4 | 36 |
| VHS404TP-4-100S | 100 | 16.5 | 14.75 | 13.5 | 0.69 | 1.5 | 2.125 | 0.375 | 1.668 | 1/4-20 | 36.94 | 4.56 | 21 | 15.2 | 42.2 |
| VHS405TP-4-125S | 125 | 16.5 | 14.75 | 13.5 | 0.69 | 1.5 | 2.125 | 0.375 | 1.668 | 1/4-20 | 36.94 | 4.56 | 21 | 15.2 | 42.2 |
| VHS444TP-4-150S | 150 | 16.5 | 14.75 | 13.5 | 0.69 | 1.69 | 2.5 | 0.375 | 1.854 | 1/4-20 | 42.66 | 5 | 23.3 | 18.1 | 47.7 |
| VHS444TP-4-175S | 175 | 16.5 | 14.75 | 13.5 | 0.69 | 1.69 | 2.5 | 0.375 | 1.854 | 1/4-20 | 42.66 | 5 | 23.3 | 18.1 | 47.7 |
| VHS445TP-4-200S | 200 | 16.5 | 14.75 | 13.5 | 0.69 | 1.69 | 2.5 | 0.375 | 1.854 | 1/4-20 | 42.66 | 5 | 23.3 | 18.1 | 47.7 |
| VHS445TP-4-250S | 250 | 16.5 | 14.75 | 13.5 | 0.69 | 1.69 | 2.5 | 0.375 | 1.854 | 1/4-20 | 42.66 | 5 | 23.3 | 18.1 | 47.7 |
| VHS447TP-4-300S | 300 | 20 | 14.75 | 13.5 | 0.69 | 1.938 | 2.5 | 0.5 | 2.16 | 1/4-20 | 49.75 | 5 | 23.3 | 19.5 | 54.8 |
| VHS5006P-4-300S | 300 | 20 | 14.75 | 13.5 | 0.69 | 1.938 | 2.5 | 0.5 | 2.16 | 1/4-20 | 49.75 | 6.25 | 33.8 | 27.5 | 56.1 |
| VHS5006P-4-350S | 350 | 20 | 14.75 | 13.5 | 0.69 | 1.938 | 2.5 | 0.5 | 2.16 | 1/4-20 | 49.75 | 6.25 | 33.8 | 27.5 | 56.1 |
| VHS5008P-4-400S | 400 | 24.5 | 14.75 | 13.5 | 0.69 | 2.188 | 3.25 | 0.5 | 2.41 | 3/8-16 | 53.88 | 6.25 | 33.8 | 27.5 | 60.2 |
| VHS5008P-4-450S | 450 | 24.5 | 14.75 | 13.5 | 0.69 | 2.188 | 3.25 | 0.5 | 2.41 | 3/8-16 | 53.88 | 6.25 | 33.8 | 27.5 | 60.2 |
| VHS5008P-4-500S | 500 | 24.5 | 14.75 | 13.5 | 0.69 | 2.188 | 3.25 | 0.5 | 2.41 | 3/8-16 | 53.88 | 6.25 | 33.8 | 27.5 | 60.2 |
Our service:
1. Professional drawing will be worked according to your requirements before order.
2. Any of your inquiry will be responsed within 24 hour.
3. Our factory always welcome your visit.
4. We offer 12 month guarantee period to ensure the quality.
5. For big/ high value motors, over abroad after service is available.
