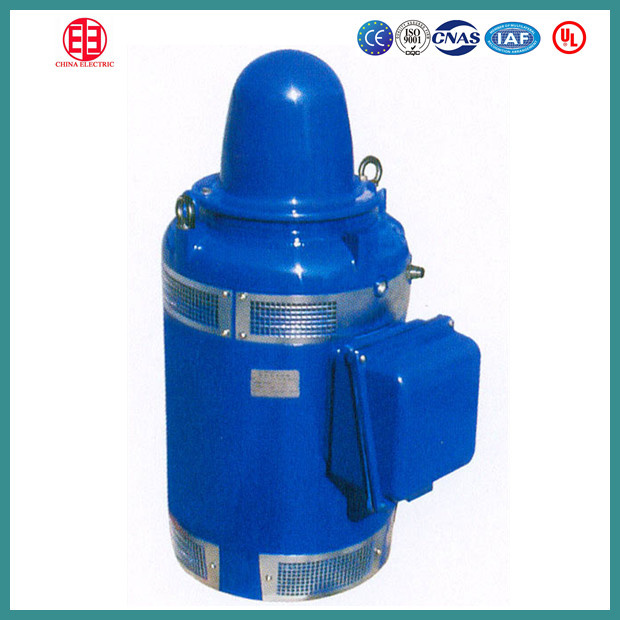

Vertical Hollow Shaft Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
VHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling: |
IC01 / IC411 |
| Efficiency: |
Ie1 |
| Duty: |
S1 |
| Frame Size: |
80 ~ 400 |
| Frequency: |
50 or 60 Hz |
| Insulation Class: |
F / H |
| Pole: |
2 / 4 |
| Power: |
0.18 ~ 1000kw |
| Protection Rating: |
IP23, IP54, IP55 |
| Speed: |
3600, 3000, 1800, 1500 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Vhs, Ohs |
Product Description
IEC,NEMA Standard VHS Vertical Hollow Shaft Motor
1.Application
Designed primarily for deep well turbine pump applications.The coupling is equipped with a non-reverse ratchet,which prevents motor rotation from backspinat shut down.These motors are built to NEMA standards and have special bearing arrangements to carry heavy thrust loads.
2.Operation conditions
Ambient temperature
---between -4°F(-20°) and 104°F(40°)
Altitude
---3300ft(1000m) above sea level and below
3.Features
·ThreePhase Squirrel-Cage motor
·Rating-7.5HP Up to 500HP
·Synchronous Speed: 1800RPM
·Pole number:2,4,6
·Voltage and frequency
--230V/460V,460V 60HZ
4.Mechanical:
·Open Dripproof(WP-1)Enclosure
·ProtectionDegree:IP20,IP23,IP55
·Frame sizes-213TP~5008P (160-355mm)
·Ball bearing type Non-ReverseRatchet Included
·Oversized angular contact bearing and ball bearing
·Hing thrust design.Higher thrust load required
·Large reservoir"oil bath"
·Space heaters as standard
·Thermal protection as standard
·Light weight hood for easy access
·Optimal ventilation
·Cast iron construction
·Lubrication for angular contact bearing
--Up to 286TP:grease
--324TP and above:oil
·Quietrunning and low vibration
5.Technical parameters: IEC Standard VHS Vertical Hollow Shaft Motor

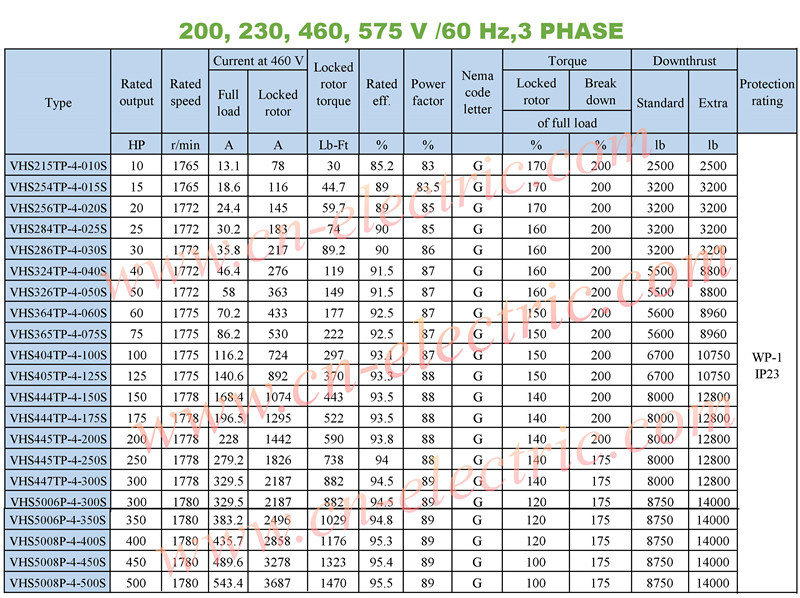

NEMA Standard VHS Vertical Hollow Shaft Motor
6.Packaging:Plywood cases
7.Products pictures
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
