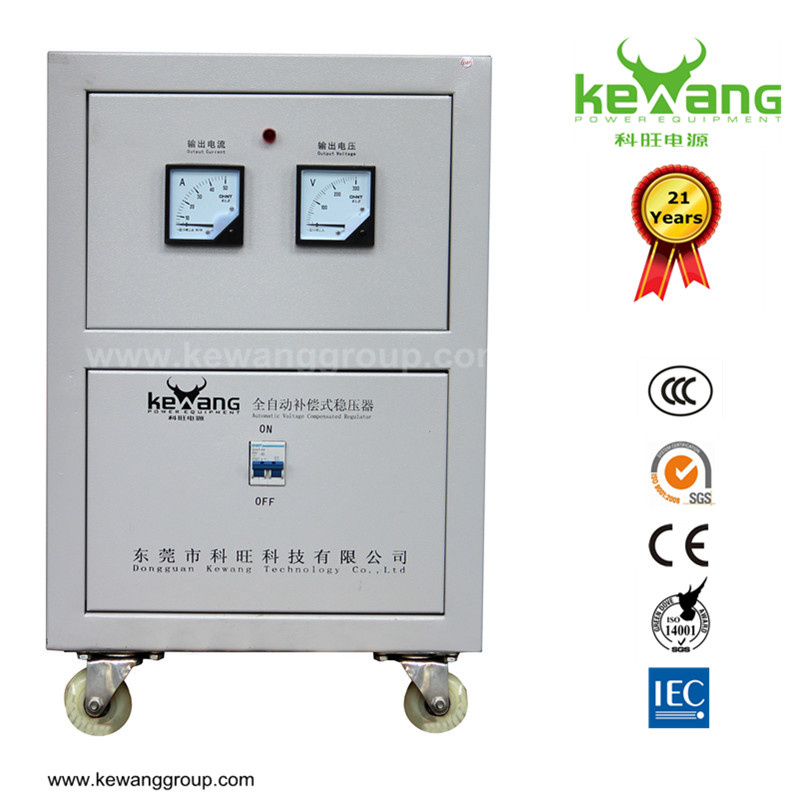

Vertical Precision Purified Three Phase Full Automatic Compensated Voltage Regulator
| Price: |
US $ 500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
DBW-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
5kVA-60kVA |
| Input Voltage: |
160V-250V |
| Output Voltage: |
220V |
| Accuracy Of Voltage: |
220V=/-2% |
| Efficiency: |
>90% |
| Load Power Factor: |
0.8 |
| Delay Time: |
Long 5m +/-2m, Short 5s +/-2s |
| Product Size: |
79*43*136 (Reference Only) |
| Package Size: |
90*65*140(Reference Only) |
| Unit Net Weight (Kg): |
230 |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SVC |
| Frequency: |
50Hz/60Hz |
| Brand: |
Kewang |
Product Description

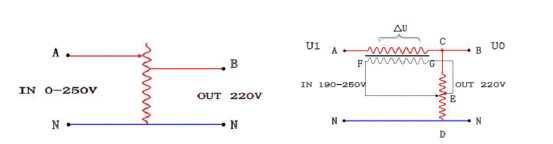

Vertical precision purified three phase full automatic compensated Voltage Regulator Product IntroductionSBW/DBW series automatic voltage regulator was designed to stabilize the AC voltage. By using the superposition principle, compensation method to make the system stably output from the power grid. It can automatically maintain the stability of voltage output When The fluctuation or load changed. We have variety, complete specifications of such kind of products with small volume, light weight, load wide adaptability, high reliability, no additional waveform distortion; It work continuously and convenient in operation .Widely used in industrial and mining enterprises, household appliances, medical equipment, mechanical processing, testing equipment, elevators, school, etc.
Application:COMMERCIAL:
Highrise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL:
Industrial automation, production lines, CNC, factory robotics, heavy load machinery, precision machinery.
MEDICAL:
Xray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipment.
TELECOM:
Data exchange center, Mobile base stations, control centers and transmission relay stations.Features--Auto/Manual operation and manual regulation functions.
--LED display for input voltage, output voltage, output current.
--Digital MCU is controlling output voltage. Voltage precision is adjustable.
-Contactless carbon brush, High Reliability and strong resistance ability to overload.
--Stepless voltage regulation to stabilize output voltage.
--Good adaptability to variant loads and ambient.
Technical parameters:| Capacity range | DBW 3~20KVA | SBW 6~60KVA |
| Input voltage | Single phase 220V ±15%/ ±20%/±30% | 3 Phase 380V/400V±15%/ ±20%/±30% |
| Output voltage | Single phase 220V | 3 Phase 380V/400V |
| Voltage regulation accuracy | ±2~±5 %(settable) |
| Frequency | 50Hz 60Hz |
| Response time | < 0.5s |
| Efficiency | > 96% |
| Waveform distortions | <1% |
| Industry power voltage | 1500V/60s | 2000V/60s |
| insulation resistance | > 5MΩ |
| Ambient temperature | -10ºC~ +40ºC |
| Relative humidity | < 90% |
| Altitude | < 1000m |
Specifications:| Model | Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
| SBW-6 | 6 | 3 | 430*480*760 | 48 |
| SBW-10 | 10 | 3 | 430*480*760 | 65 |
| SBW-15 | 15 | 3 | 430*570*760 | 75 |
| SBW-20 | 20 | 3 | 450*500*1100 | 130 |
| SBW-30 | 30 | 3 | 450*500*1100 | 150 |
| SBW-45 | 45 | 3 | 450*550*1260 | 163 |
| SBW-60 | 60 | 3 | 450*550*1260 | 192 |
| | | | | |
| Model | Capacity | Phase | Dimensions(mm) | Weight(kg) | Carton |
| Capacity (kVA) | Phase | Dimensions(mm) | Weight(kg) |
| DBW-5 | 5 | 1 | 350*360*350 | 25 |
| DBW-10 | 10 | 1 | 450*480*800 | 80 |
| DBW-15 | 15 | 1 | 450*480*800 | 90 |
| DBW-20 | 20 | 1 | 450*480*800 | 136 |
Company introductionKewang was established by the owner Wanghua Fang in 1995 with headquarter in Songshan Lake National High-Tech Industrial Development Zone, Donguan city, Guangdong Province, China. It has a total construction of 50.000s square meters which consist of four subsidiaries, Dongguan Kewang Technology Co., Ltd, Dongguan Kewang Network Power Co., Ltd, Jiangxi Fushanhuitian Industrial Co., Ltd, Myanmar Best Power Industrial and operating Co., Ltd. Our company is engaged in manufacturing varieties of voltage stabilizer, special transformer, reactor, UPS, frequency converter, generator, high and low voltage transmission and distribution engineering and Energy saving engineering as well as magnetic devices of R&D production. As a leading power supply company, the attention of Kewang has been significantly placed in quality with all products. 65 % of total 700 employees are qualified with higher education and are often trained by South China University of Technology and Wuhan University to maintain consistent growth, which enables Kewang Group to expand business world widely. It has been awarded with an ISO9001certification, ISO14001 certification; most products have been recognized with CE, UL, and 3C. With solid science and technology strength, four among 11 projects have been gained the identification of Guangdong Science and Technology Department and achieved first and second prize of Science and Technology. Kewang Group is a member of China Power Supply Society and qualified of manufacturing electric power facilities that is lower than 10kv.
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
