| Power Supply: |
12-36V |
| Password: |
4 Digits Initial Password |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Five Programme Switch |
| Brand: |
Veze |
Product Description
Overall Structure
The Frontage: Fully lock button, Operation indicator, Partial open button, Power indicator, Fully open button, Automatic button, Unidirectional button.
The back: Initialization reset button, Screw fixed hole, Wiring diagram, Binding post, Screw fixed hole.
The Overall Characteristic
▪Adopting five-range of switch functions of microcomputer with high integration.
▪With DC12V-36V powerinput, it is convenient to take power from auto-door unit.
▪Featured with exquisite cover, compact size and easy to be fixed.
▪With password storage unit, function switch against password, safety and reliability.
▪Function switch with 5 control buttons.
▪With memorry function in case of power-down. Auto door maintains safety and intelligency quality.
▪Instructions with indicator light to confirm the validity operation.
Fully lock: All probe and access controller are lose effectiveness, electric lock locked automatically, people inside and outside can not enter in.
Be used for preventing thieves at night or onholidays periods.
Fully open: All probe and access controller are lose effective ness. Door keeps fully open.
For emergency wiring .
Half open: External and internal probes are effective. Door maintains half-open and shut back.
Working hours with normal business.Unidirectional: External probe is lose effectiveness and electric lock locked automatically while external access controller and internal probe are available. Only insider can get in by swiping card. Internal probe is effective, people can get out.
Be used for clearing up a gathering place.
Automatic: Internal and external probe are effective.
Working hours with normal business.
The Definition of Input and Output Leads
| +VCD | Red | DC12V-36V power supply |
| GND | Black | GND |
| Access | Yellow | Access controller signal |
| OUT-SW | White | External sensor signa |
| IN-SW | Grey | Inner sensor signal |
| PUSH | Blue | Electric lock signal |
| COM | Purple | Open dry contact |
| NO | Orange | Open dry contact |
| PCOM | Brown | Partial open contact |
| DNO | Grey | Partial open contact |

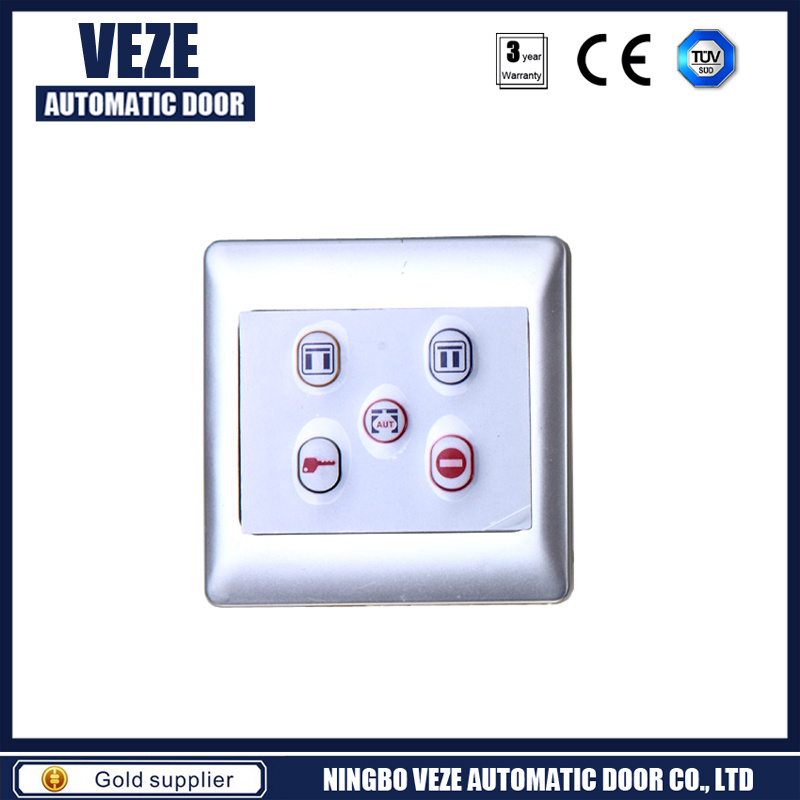

The Picture of Five-range Programmed Switch

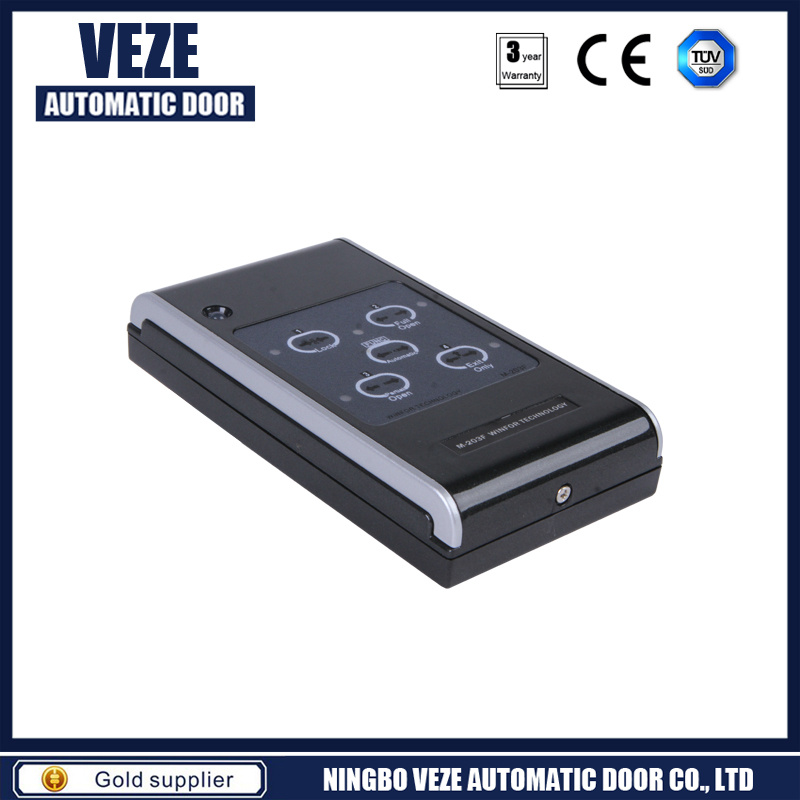

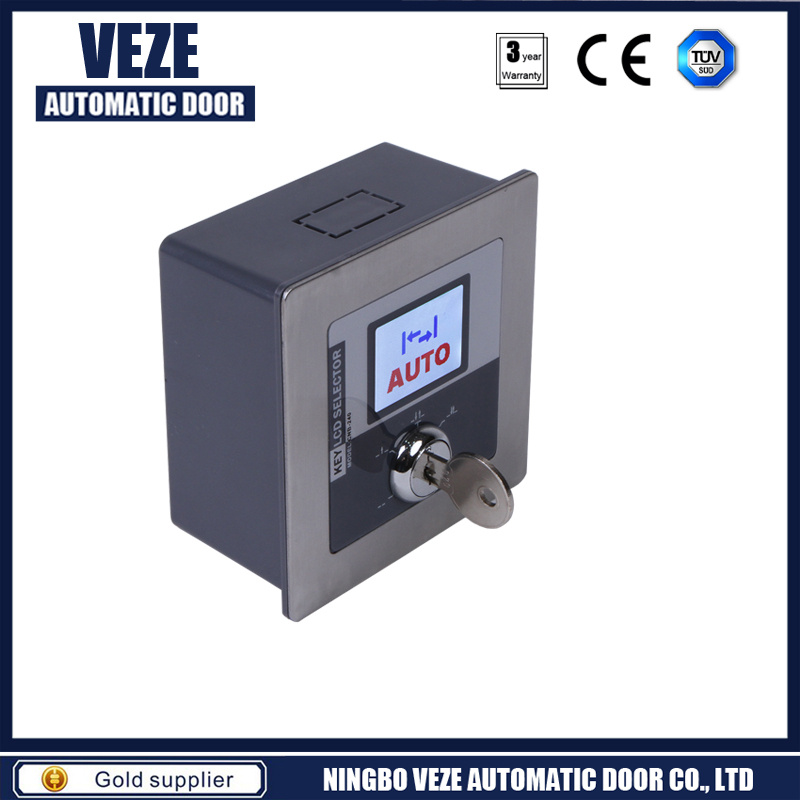

Other Types of Five-range Switch

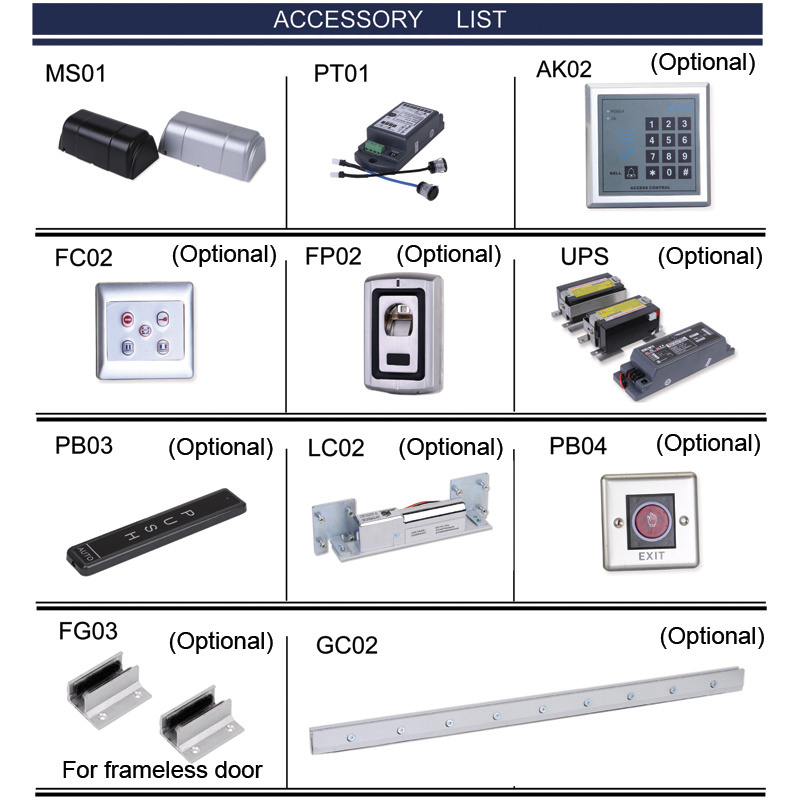

Accessories List & Optional Parts
Switching the Program and Setting the Management Password
Function switching methord
Pass FUNC key for 5s--Indicator light turn green--enter 4 passwords( original password 1234 ), reconfirm by pressing FUNG--select the function you need among FULL LOCK / FULL OPEN / PARTIAL OPEN/ ECIT ONLY / AUTOMATICAL.
Password setting
Press FUNG for10s--buzzer bell at 5s and 10s--enter correct passwords--reconfirm by pressing FUNG--enter the new passwords--press FUNG--reconfirm the new passwords--pressFUNG(Newpassword sets sucessfully ).
Password initialization
When the management password be forgot, open the rear cover, press the initialization reset button for 40s--initialization setting is finished with voice indicator--revert to original password 1234.
Special Notice
▪DC12V-36V power can be supplied from the sliding door unit.
▪Time difference can be produced by connecting the PUSH SIGNAL CONTACT of this product with PUSH SIGNAL CONTACT of power assess. ( Should be connected with same GND wire ).
▪Direct connection with electric lock is not allowed.
▪The input signal of internal / external probe and access controller should be passive contact signal.
Other Automatic Doors Accessories
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
