Vf Control Super Mini Inverter VFD AC Drive for Energy Saving
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
S800E |
| Special Function: |
DIN Rail Mounted Frequency Inverter |
| Appearance: |
Compact, Small |
| Input Power 220V: |
0.4kw-2.2kw |
| Input Power 380V: |
0.75kw-2.2kw |
| Application In: |
Conveyor |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
Vf Control super mini inverter VFD AC drive for energy saving
Detail Specifications :
Items
|
S800E |
Power
Supply |
Rated voltage,
Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
Voltage Range |
220V: 170~240V |
Output |
Voltage Range |
220V: 0~220V |
Frequency
Range |
0.10~400.00Hz |
Control method |
V/F control, Space vector control.
|
Indication |
Operating status/Alarm definition/interactive
Guidance:eg, frequency setting, the output
frequency/current, DC bus voltage, the
temperature and so on.
|
Control Specifications |
Output
Frequency
Range |
0.10Hz~400.00Hz
|
Frequency
Setting
Resolution |
Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency
|
Output
Frequency
Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load
Requirements. |
Torque
Control |
Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque.
|
Multifunctional
Input Terminal |
Four multi-function input terminals, realizing
functions including fifteen section speed control,
Program running, four-section acceleration/
deceleration speed switch, UP/DOWN function
and emergency stop and other functions |
Multifunctional
Output Terminal |
1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
Acceleration/
deceleration
Time Setting |
0~999.9s acceleration/deceleration time can be
set individually.
|

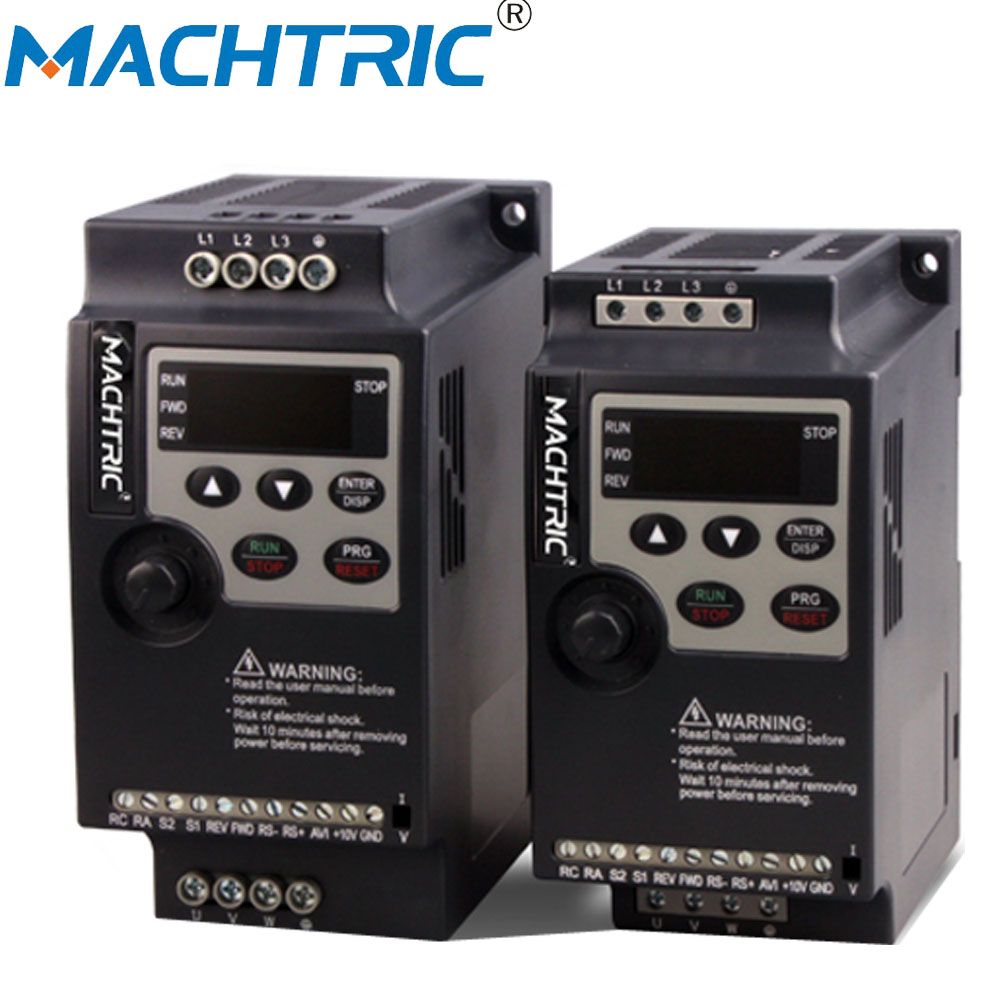

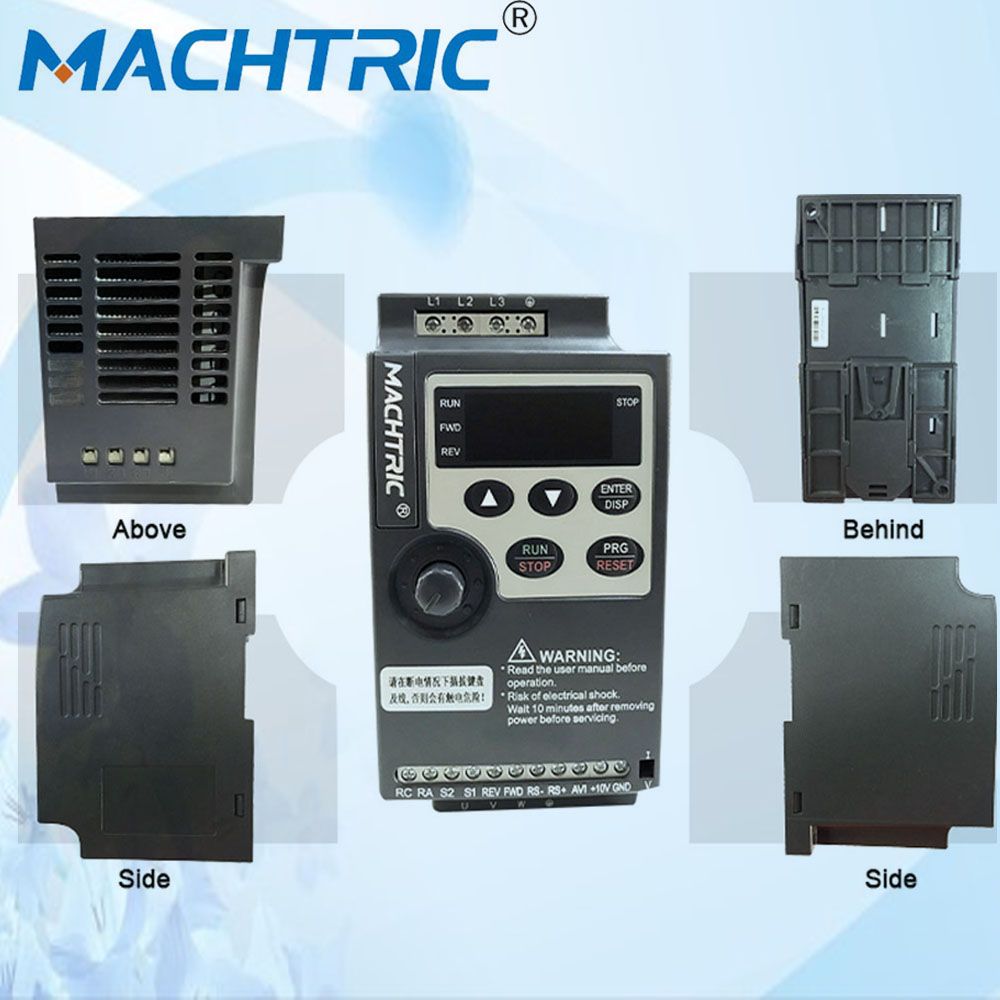

Product show
Process
FAQ
