| Prod Model: |
V5-H-C8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |

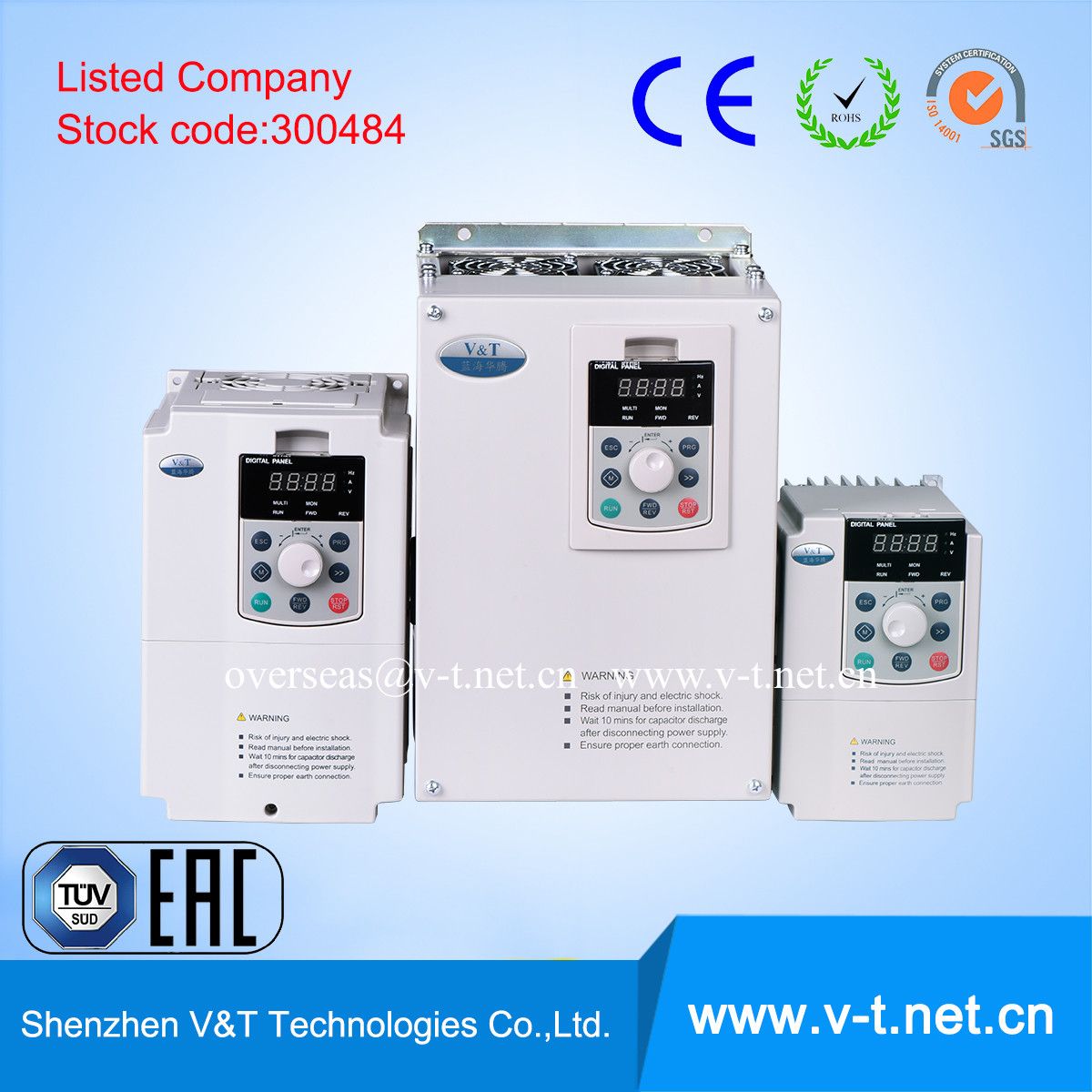

Product Description
1. Variable Speed Drive Motor Control
2. Excellent torque control and reliable brake control frequency inverter
3. Approved by ECMG, CE, ABS, TUV, ISO9000
4. Global frequency inverter supplier
With complete applications for water supply, with high efficiency, pressure stable, reliable, simple operation, easy installation, small footprint, low noise, no pollution, low investment, effective advantages. Widely used in:
1. Domestic water for buildings, urban areas, business units, public institutions.
2. Waterworks and modern irrigation.
3. The production, domestic water supply, constant pressure water supply, etc.
4. Musical Fountain of automatic water control.
5. Various types of central air-conditioning circulation pump, cooling water supply system.
6. High-rise buildings, hotels, restaurants and other domestic water supply system.
7. Market, office buildings, commercial buildings domestic water supply system.
8. High-rise buildings hot water supply and hot water heating system.
9. Various types of oil constant pressure supply, air constant pressure supply, fan constant pressure control system, etc.
V&T products range: Frequency inverter, soft starters, servo drives, servo motor PLC, HMI, Servo Motor & Drive system, Frekvensomformer, AC-Umrichter, frequentieregelaars, frekvensomriktare, Frequenzumrichter, AC drives, frequency converters, frequency changers, adjustable speed drives (ASD), adjustable frequency drives (AFD), variable frequency drives (VFD), variable speed drives (VSD), Frequency Invert(AC Drives), Soft Starters, Electrical AC Motor, Induction motor, Brake Units, EMI filter, AC Choke, Brake resistor, Breakers manufacturer in ChinaProducts application: Knitting Machine, compressor, extruding machine, injection machine, motor, braiding machine, pressure fan; Forced draught blower; Blower, blowing machine, blow molding machine, root's blower, film blowing machine, cutter bar, cut-off machine; Slitter, Cutting machine, conveyor, pump, grinder, cluster, glazing machine; Polisher; Polishing machine, laundry-drier, drying machine, ball crusher, ball grinding mill, drawing machine.
| Power(KW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Motor Power(KW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Output | Voltage(V) | Three-phase 0V to rated input voltage |
| Rate current(A) | 2.5 | 3.8 | 5.5 | 9 | 13 | 17 | 24 | 30 | 39 | 45 | 60 | 75 | 91 | 112 | 150 |
| Overload capacity | 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature) |
| Input | Rated voltage/frequency | Three-phase 380V/480V; 50Hz/60Hz |
| Allowable voltage range | 323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5% |
| Rate current(A) | 3.5 | 6.2 | 9.2 | 14.9 | 21.5 | 27.9 | 39 | 50.3 | 60 | 69.3 | 86 | 104 | 124 | 150 | 201 |
| Braking unit | Built-in as standard | External braking unit needed |
| Protection class | IP20 |
| Cooling mode | Self-cooling | Forced air convection cooling |
| Power(KW) | 90 | 110 | 132 | 160 | 200 | 220 | 280 | 315 | 355 | 400 | ... | ... | ... | ... | ... |
| Motor Power(KW) | 90 | 110 | 132 | 160 | 200 | 220 | 280 | 315 | 355 | 400 | | | | | |
| Output | Voltage(V) | Three-phase 0V to rated input voltage |
| Rate current(A) | 176 | 210 | 253 | 304 | 377 | 415 | 520 | 585 | 650 | 740 | | | | | |
| Overload capacity | 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature) |
| Input | Rated voltage/frequency | Three-phase 380V/480V; 50Hz/60Hz |
| Allowable voltage range | 323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5% |
| Rate current(A) | 160* | 196* | 232* | 282* | 352* | 385* | 491* | 552* | 624* | 704* | | | | | |
| Braking unit | External braking unit needed |
| Protection class | IP20 |
| Cooling mode | Forced air convection cooling |
| Power(KW) | 90 | 110 | 132 | 160 | 200 | 220 | 280 | 315 | 355 | 400 | ... | ... | ... | ... | ... |
| Motor Power(KW) | 90 | 110 | 132 | 160 | 200 | 220 | 280 | 315 | 355 | 400 | | | | | |
| Output | Voltage(V) | Three-phase 0V to rated input voltage |
| Rate current(A) | 176 | 210 | 253 | 304 | 377 | 415 | 520 | 585 | 650 | 740 | | | | | |
| Overload capacity | 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature) |
| Input | Rated voltage/frequency | Three-phase 380V/480V; 50Hz/60Hz |
| Allowable voltage range | 323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5% |
| Rate current(A) | 160* | 196* | 232* | 282* | 352* | 385* | 491* | 552* | 624* | 704* | | | | | |
| Braking unit | External braking unit needed |
| Protection class | IP20 |
| Cooling mode | Forced air convection cooling |
Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).
In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.
Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
