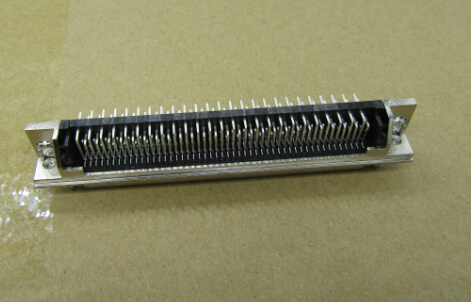

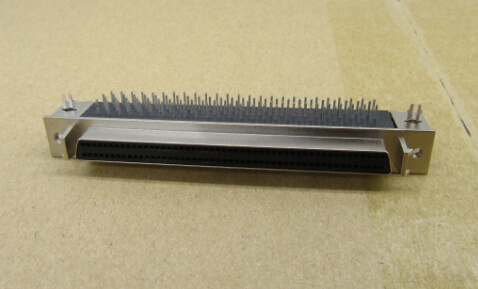

Vhdci Connector 1.27mm 100p Receptacle Headers Right-Angle Mount Pin Type

Name: Vhdci Connector 1.27mm 100p Receptacle Headers Right-Angle Mount Pin Type
Brand: all-electronics-online.com
SKU: 795444855
Availability: InStock
Rating: 4.4 (147 reviews)

Price:	US $ 3.2/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HPDBR-F-100-X-X-X
Application:	UHF

Product Description

SPECIFICATIONS:
1.Electrical Characteristics:
1.1 Contact Current Rate: 1AMP
1.2 Insulation Resisitance:500mΩ Minium
1.3 Contact Resistance:35mΩ Maximum.
1.4 Dielectric Voltage: 500V AC For One Minute
2.Material:
2.1 Insulator:Thermoplastic Polyester,PBT UL 94V-0
2.2 Contact:Copper Alloy
3.Finish
3.1 Zincshell:Nickel Plated Over Copper
3.2 Contact:Gold Plating
3.3 Board Lock:Tin Plated Over Copper
4.Environment:
Operation Temperature: -55°C To +105°c

Contact Type:Female
Contact NO.:100P
Threaded Finishes:
1:Threaded Insert #2-56
2:Threaded Insert #4-40
3:Threaded Insert M2.6
Contact Plating:
Gold Flash Selective Plating
5u" Gold Selective Plating
15u" Gold Selective Plating
30u" Gold Selective Plating
Bracket Finishes:
Latch Bracket
Screw Bracket
