Name: VHF Fixed Frequency Conference System
Brand: all-electronics-online.com
SKU: 712849682
Availability: InStock
Rating: 4.3 (35 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	K-2028
Frequency Range:	VHF 190-280MHz
Channel:	8
Frequency Group:	2
Noise:	<95dB
Hi-Fi:	Hi-Fi
Application:	Commercial
Certification:	CCC

Product Description

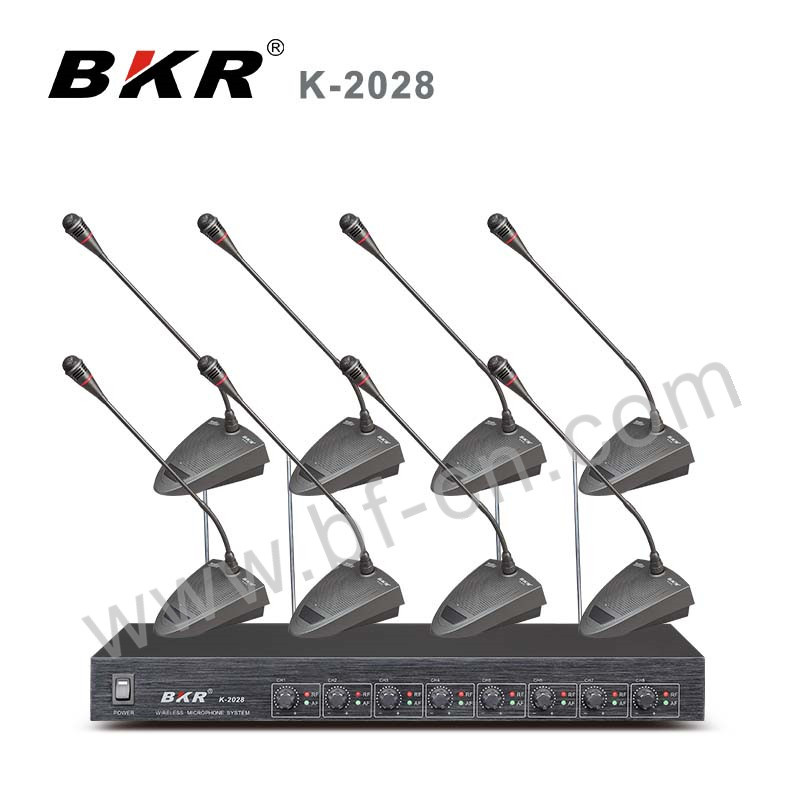

VHF cheaper conference microphone system

Conference microphone system Function:
*8 channels wireless microphone system. Fixed frequency.
*2 controllers can used simultaneously.
*Front panel :each channel has a red RF and AF lamp to indicate the signal.
*Back panel :4 pull rod antennas for signal receiving.
*Back-panel :2 balanced output and 1 mixed unbalanced output.
*Microphone power consumption is 60mA. AA 1.5V*2 battery,support 8 hours.
*Light ring on the mic head display working status.
*Working distance: 30-60meter.
* It's suitable for various kinds of conference and performance occasion.

Conference microphone system Paramter:
Channel number: 8
Oscillation Mode: Quartz crystal
Modulation Mode: FM
Frequency Range: VHF 190~280MHz
Frequency Stability : +0.001%
Max. Deviation Range: +50KHz
S/N Ratio : >105dB
T.H.D: <0.5%@1KHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV

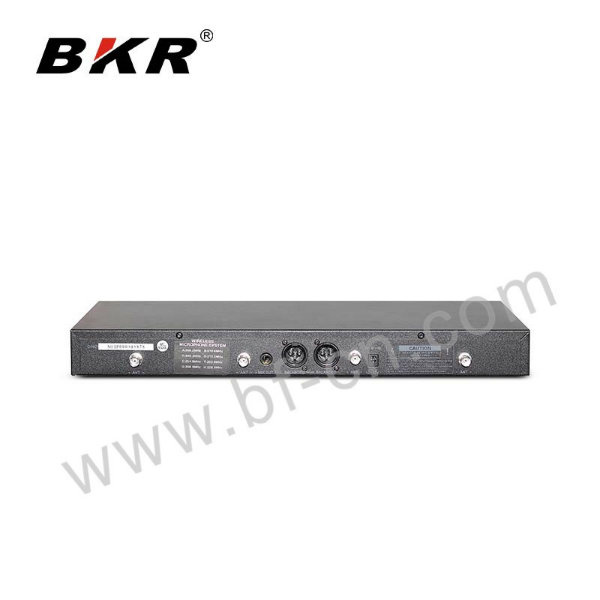

Wireless microphone system back panel of the receiver:

Balanced XLR output: 2
Mixed unbalanced 6.3 output : 1

Transmitter:

Power key for put on/off microphone
Plastic material
Power indicater light
1.5V AA battery *2

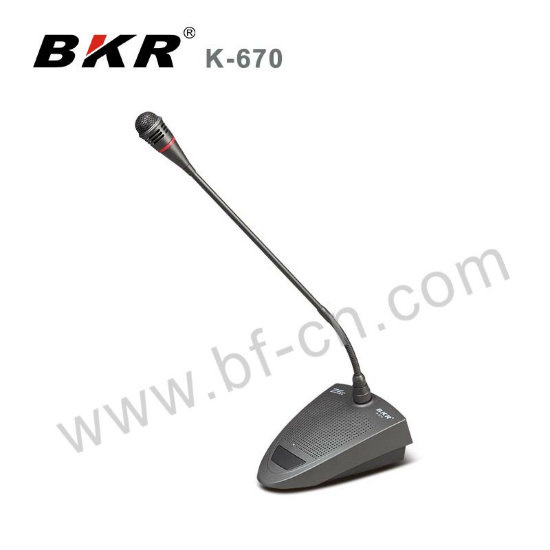

Classic type meeting microphone

Option transmitter as following:

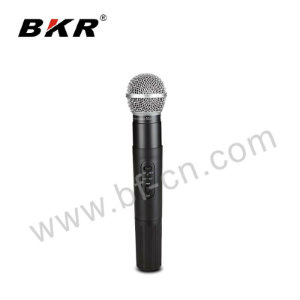

GS01H GS01T
wireless handheld microphone wireless bodypack microphone
