Vhs (IP23) Series Vertical Hollow-Shaft Asynchronous Motor for Deep Well Pump

Name: Vhs (IP23) Series Vertical Hollow-Shaft Asynchronous Motor for Deep Well Pump
Brand: all-electronics-online.com
SKU: 827892845
Availability: InStock
Rating: 5 (73 reviews)

Price:	US $ 200-25000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VHS160, VHS180, VHS200, VHS250, VHS280, VHS355
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Wangyang
Species:	Ylb Series Three-Phase
Number Of Poles:	2,4

Product Description

Features and Applications

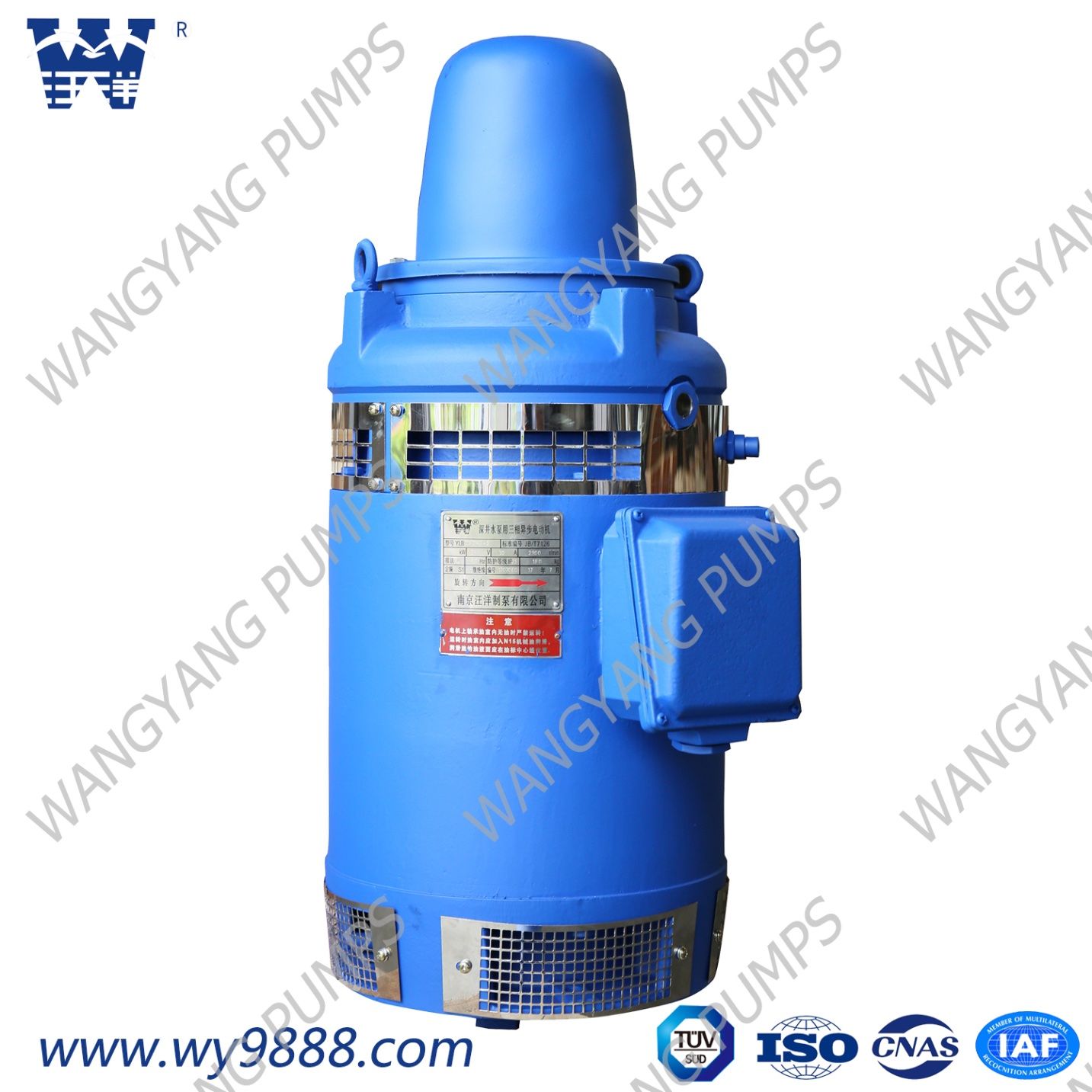

Series VHS vertical hollow-shaft motors, the latest product of our factory, are three phase squirrel cage induction motors specially for driving vertical deep-vell turbine pumps.
The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.
After being fitted with vertical pumps, the motors are widely in pumping underground water in mines, city, farm and factories etc.The degree of protection is weather-protected type1(drip-proof).

Ordering
When marking an enquiry or ordering a motor, please give the following information:
Horsrpower or kW output
-Speed -Voltage
-Frequency -Insulation class
-Ambient temperature
-Non-reverse backstop, if required
-Method of starting
-Unless specified otherwise at the time of ordering, the downthrust load of the motor would be of standard.

Motors of Special Purpose
We also provide VHS motors of different applications, namely with rated voltage below 600v, frequency of 60Hz, class of insulation either B or F etc.
We can also supply other supply other special purpose motors, if required please contact us directly.
We are willing to serve you with pleasure.

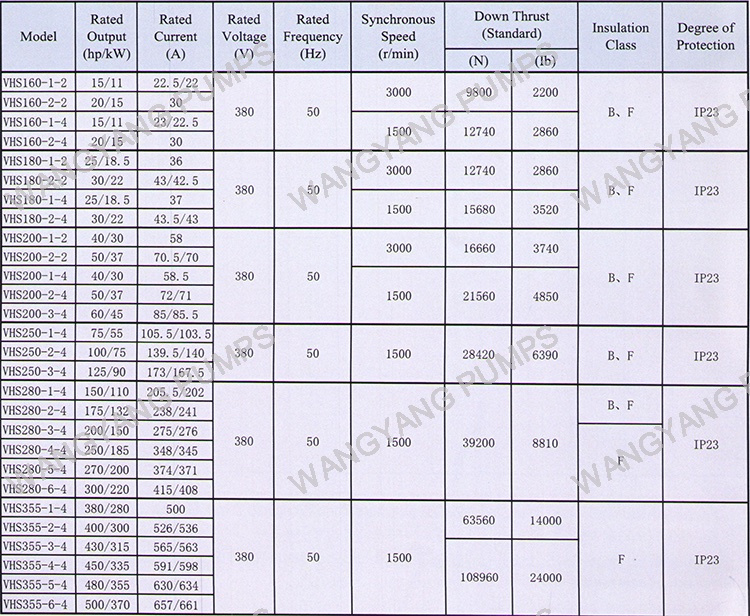

Rating and Performance

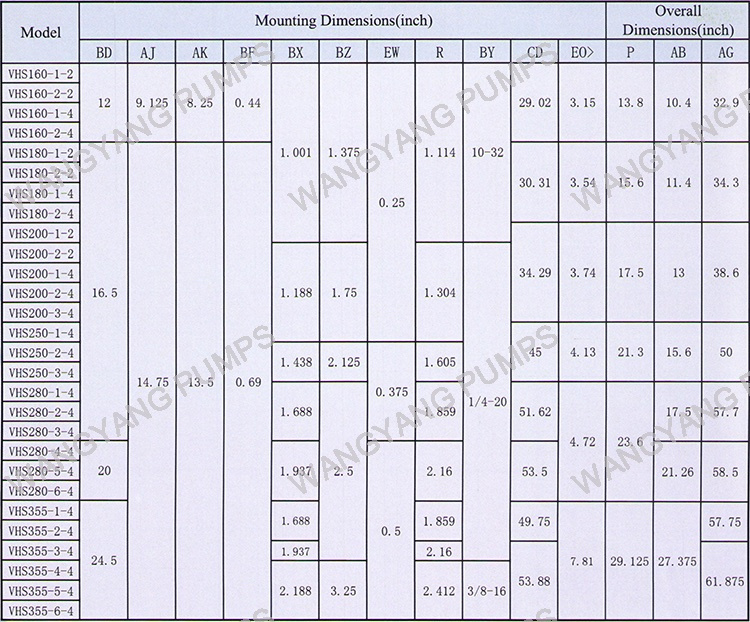

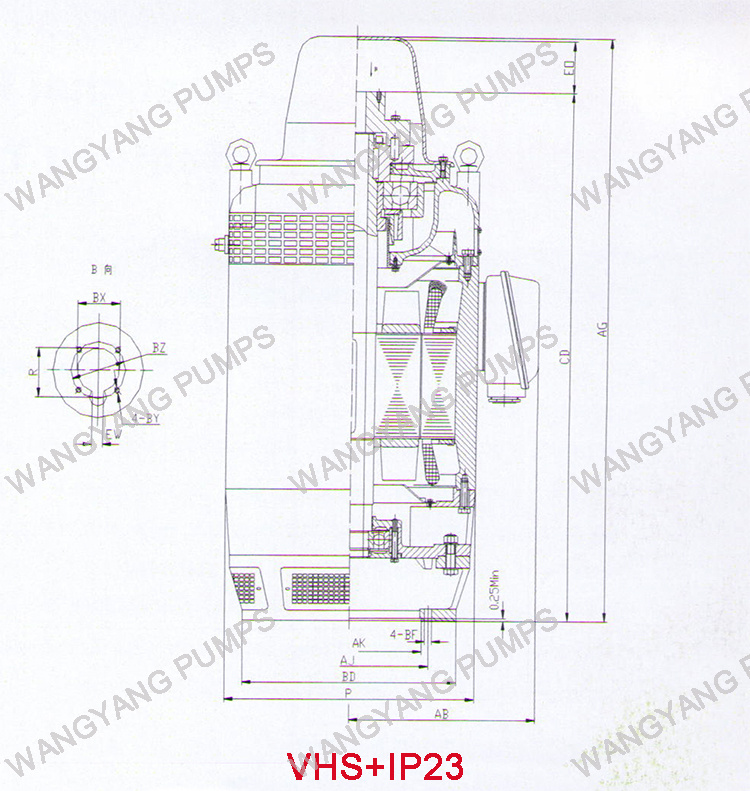

Mounting and Overall Dimensions:
