Vhs254tp-4-015s Small Three Phase Induction Motor
| Price: |
US $ 240-22000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
VHS |
| Product Name: |
Vhs254tp-4-015s Small Three Phase Induction Motor |
| Power Range: |
10-500HP |
| Cooling: |
IC411 (Tefc) |
| Isulation Grade: |
F Grade |
| Efficiency: |
Ie1 |
| Shaft: |
Vertical Hollow Shaft |
| Other Name: |
Vhs Motor |
| Protect Feature: |
Drip Proof |
| AC Voltage: |
380 400 415 440 460 480 660 690 V |
| Duty: |
S1 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6, 8 |
| Brand: |
China Electric |
Product Description

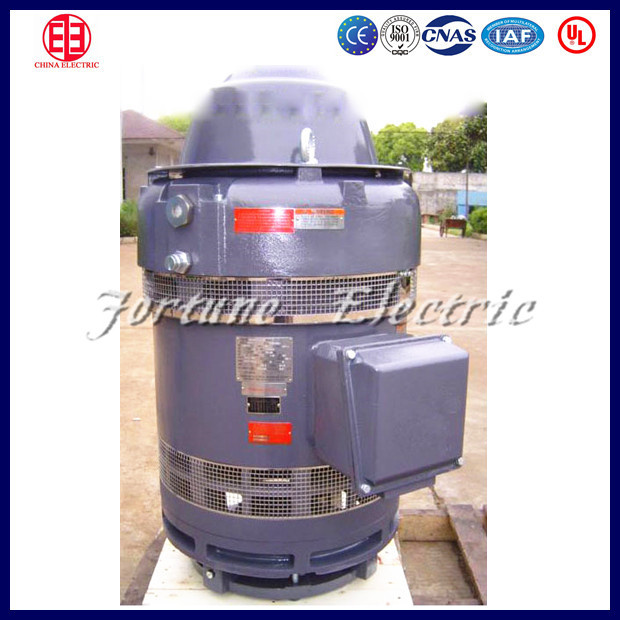

VHS254TP-4-015S small three phase induction motor
I. Product description
OHS Series NEMA standard vertical hollow shaft motor, also called as VHS motor, is three phase squirrel cage induction motor specially for driving vertical deep well turbine pump. The product is made in accordance with American NEMA standard.
II. Main Feature & techniques
1. International anti-reverse sturcture
2. Oil-immersed bearing lubricating construction for long lifetime
3. Weather-protected type 1 (drip-proof)
4. Frame sizes-213TP~5008P (160-355mm)
5. Oversized angular contact bearing and ball bearing
6. high efficiency, large starting torque, low temperature rise, leakage free, quiet running, low vibration
III.Operation conditions
Ambient temperature
---between -4°F(-20°) and 104°F(40°)
Altitude
---3300ft(1000m) above sea level and below
IV. Tech parameters
Table 1 10hp-75hp VHS445TP-4-250S/OHS280-2-4 Great loading pump motor
| Type | Rated output | Rated speed | Current at 460 V | Locked rotor torque | Rated eff. | Power factor | Nema code | Torque | Downthrust |
| Full load | Locked rotor | letter | Locked rotor | Break down | Standard | Extra |
| | of full load |
| HP | r/min | A | A | Lb-Ft | % | % | | % | % | lb | lb |
| VHS215TP-4-010S | 10 | 1765 | 13.1 | 78 | 30 | 85.2 | 83 | G | 170 | 200 | 2500 | 2500 |
| VHS254TP-4-015S | 15 | 1765 | 18.6 | 116 | 44.7 | 89 | 83.5 | G | 170 | 200 | 3200 | 3200 |
| VHS256TP-4-020S | 20 | 1772 | 24.4 | 145 | 59.7 | 89 | 85 | G | 170 | 200 | 3200 | 3200 |
| VHS284TP-4-025S | 25 | 1772 | 30.2 | 183 | 74 | 90 | 85 | G | 160 | 200 | 3200 | 3200 |
| VHS286TP-4-030S | 30 | 1772 | 35.8 | 217 | 89.2 | 90 | 86 | G | 160 | 200 | 3200 | 3200 |
| VHS324TP-4-040S | 40 | 1772 | 46.4 | 276 | 119 | 91.5 | 87 | G | 160 | 200 | 5500 | 8800 |
| VHS326TP-4-050S | 50 | 1772 | 58 | 363 | 149 | 91.5 | 87 | G | 160 | 200 | 5500 | 8800 |
| VHS364TP-4-060S | 60 | 1775 | 70.2 | 433 | 177 | 92.5 | 87 | G | 150 | 200 | 5600 | 8960 |
| VHS365TP-4-075S | 75 | 1775 | 86.2 | 530 | 222 | 92.5 | 87 | G | 150 | 200 | 5600 | 896 |
100-500hp VHS445TP-4-250S/OHS280-2-4 Great loading pump motor
| Type | Rated output | Rated speed | Current at 460 V | Locked rotor torque | Rated eff. | Power factor | Nema code | Torque | Downthrust |
| Full load | Locked rotor | letter | Locked rotor | Break down | Standard | Extra |
| | of full load |
| HP | r/min | A | A | Lb-Ft | % | % | | % | % | lb | lb |
| VHS404TP-4-100S | 100 | 1775 | 116.2 | 724 | 297 | 93.1 | 87 | G | 150 | 200 | 6700 | 10750 |
| VHS405TP-4-125S | 125 | 1775 | 140.6 | 892 | 370 | 93.3 | 88 | G | 150 | 200 | 6700 | 10750 |
| VHS444TP-4-150S | 150 | 1778 | 168.4 | 1074 | 443 | 93.5 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS444TP-4-175S | 175 | 1778 | 196.5 | 1295 | 522 | 93.5 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS445TP-4-200S | 200 | 1778 | 228 | 1442 | 590 | 93.8 | 88 | G | 140 | 200 | 8000 | 12800 |
| VHS445TP-4-250S | 250 | 1778 | 279.2 | 1826 | 738 | 94 | 88 | G | 140 | 175 | 8000 | 12800 |
| VHS447TP-4-300S | 300 | 1778 | 329.5 | 2187 | 882 | 94.5 | 89 | G | 140 | 175 | 8000 | 12800 |
| VHS5006P-4-300S | 300 | 1780 | 329.5 | 2187 | 882 | 94.5 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5006P-4-350S | 350 | 1780 | 383.2 | 2496 | 1029 | 94.8 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5008P-4-400S | 400 | 1780 | 435.7 | 2858 | 1176 | 95.3 | 89 | G | 120 | 175 | 8750 | 14000 |
| VHS5008P-4-450S | 450 | 1780 | 489.6 | 3278 | 1323 | 95.4 | 89 | G | 100 | 175 | 8750 | 14000 |
| VHS5008P-4-500S | 500 | 1780 | 543.4 | 3687 | 1470 | 95.5 | 89 | G | 100 | 175 | 8750 | 14000 |
V. Company introduction
China Electric (Shanghai) Co., Ltd. is established since 1960s. It locates in Shanghai - the most important international financial and business center of China and has employees more than 1000. Its factory is about 30,000~50,000 square meters. With rich experience in manufacturing and exploring motors, the company has got ISO 9001:2000 Management Certification, CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria for its products.
VI. FAQ
1. How can I get a quotation?
You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.
2. Can I get a sample?
Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.
3. Can I view your factory?
Yes. We accept view of our factory in before order. Tell us your agenda in advance and we
can arrange then.
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
