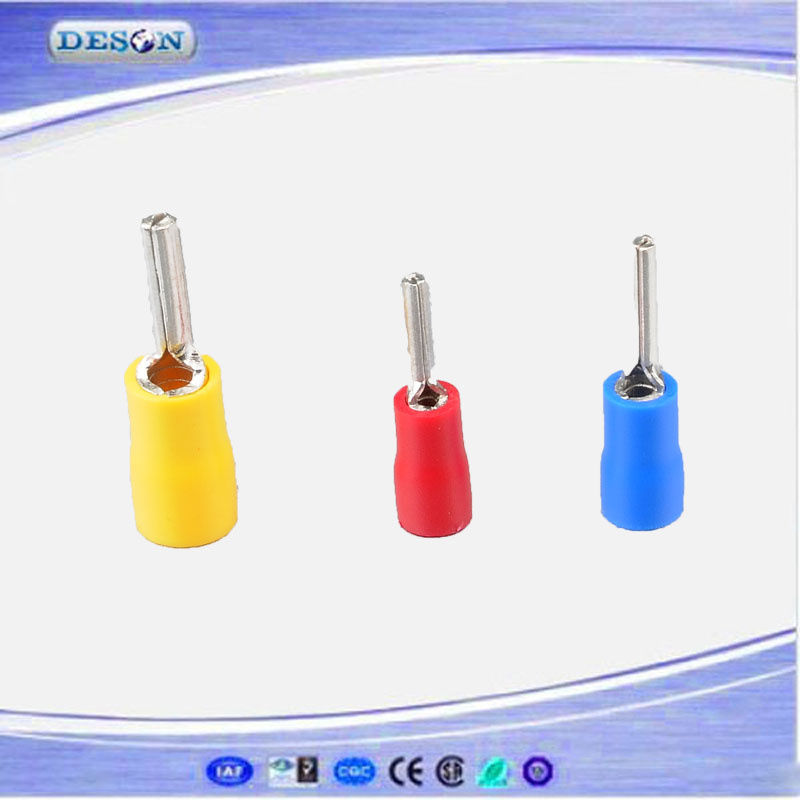

Vinyl Insulated Pin Copper Cable Terminal

Prod Model:	PTV
Insulated Material:	Vinyl / PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	75degree
Material:	Copper
Application:	Conduct Electricity
Type:	Cable Terminal
Shape:	Cable Terminal
Character:	Cable Terminal
Brand:	Deson

Product Description

Vinyl Insulated Pin Copper Cable Terminal


1) Material: High conductivity copper. PVC , Nylon.
2) ROHS.SGS.
3) Most economical insulated splice available.    Industry stanRV series ring battery terminal with CE ROHS 16-14AWGdard color-coding indicates wire range. battery terminal
4) Vinyl insulation is securely fastened over a butted seam barrel. Insulation has flared entry for easier wire insertion.
5) We manufacture, supply and export high quality copper insulated terminal  that meets the requirements of machine industries.

6) High tensile strength, excellent performance and reliability. Available in various sizes.

7) This also comply with electrical specification are in accordance with the general requirement's.


0.5~1.5mm2(22-16) Imax=19A

ITEM.NO.	DIMENSION				COLOR
	W(mm)	L(mm)	H(mm)	D Φ(mm)
PTV1.25-9	1.9	19.0	10.0	4.2	Red
PTV1.25-10	1.9	20.0
PTV1.25-12	1.9	22.0
PTV1.25-13	1.9	23.0
PTV1.25-18	1.9	28.0


1.5~2.5mm2(16-14) Imax=27A

ITEM.NO.	DIMENSION				COLOR
	W(mm)	L(mm)	H(mm)	D Φ(mm)
PTV2-9	1.9	19.0	10.0	4.7	Blue
PTV2-10	1.9	20.0
PTV2-12	1.9	22.0
PTV2-13	1.9	23.0
PTV2-18	1.9	28.0


4~6mm2(12-10) Imax=48A

ITEM.NO	DIMENSION				COLOR
	W(mm)	L(mm)	H(mm)	D Φ(mm)
PTV5.5-13	2.8	25.5	13	6.5	Yellow
