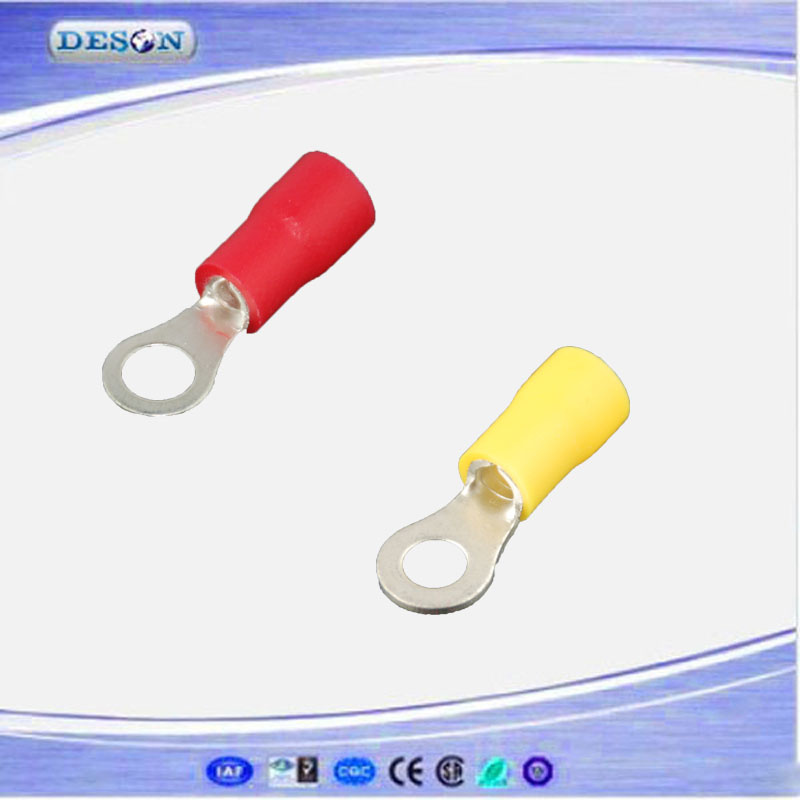

Vinyl Insulated Ring Electrical Terminal

Prod Model:	RV
Insulated Material:	Vinyl / PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	75degree
Material:	Copper
Application:	Conduct Electricity
Type:	Terminal
Shape:	Ring Terminal
Character:	Terminal
Brand:	Deson

Product Description

Vinyl Insulated Ring Electrical Terminal


1) Material: High conductivity copper. Nylon.
2) ROHS.SGS.
3) Most economical insulated splice available.    Industry stanRV series ring battery terminal with CE ROHS 16-14AWGdard color-coding indicates wire range. battery terminal
4) Vinyl insulation is securely fastened over a butted seam barrel. Insulation has flared entry for easier wire insertion.
5) We manufacture, supply and export high quality copper insulated terminal  that meets the requirements of machine industries.

6) High tensile strength, excellent performance and reliability. Available in various sizes.

7) This also comply with electrical specification are in accordance with the general requirement's.


Lead section: 0.5-1.5mm2(22-16) Max current: 9A
Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV1.25-3.2	#4	3.2mm	5.7	21.2	6.5	10	4.3	Red
RV1.25-3.5S	#6	3.7mm	5.7	21.2	6.5
RV1.25-3.5M	#6	3.7mm	6.4	21.2	6.5
RV1.25-3.5L	#8	4.3mm	6.4	21.2	6.5
RV1.25-4S	#8	4.3mm	7.2	21.2	6.5
RV1.25-4L	#8	4.3mm	8.1	21.2	6.5
RV1.25-5	#10	5.3mm	8.1	21.2	6.5
RV1.25-6	1/4	5.3mm	9.5	21.2	6.5
RV1.25-8	5/16	6.5mm	9.5	21.2	6.5
RV1.25-10	3/8	6.5mm	12	21.2	11
Lead section: 1.5-2.5mm2(16-14) Max current: 27A
Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV2-3.2	#4	3.2mm	6.6	17.8	4.3	10	4.9	Blue
RV2-3.5S	#6	3.7mm	6.6	17.8	4.3
RV2-3.5M	#6	3.7mm	6.6	21	7
RV2-3.5L	#8	4.3mm	8.5	22.5	7.75
RV2-4S	#8	4.3mm	6.6	21	7
RV2-4L	#8	4.3mm	8.5	22.5	7.75
RV2-5S	#10	5.3mm	8.5	22.5	7.75
RV2-5L	#10	5.3mm	9.5	22.5	7.25
RV2-6	1/4	6.5mm	12	27.6	11
RV2-8	5/16	8.4mm	12	27.6	11
RV2-10	3/8	10.5mm	13.6	30.2	13.9
Lead section: 2.5-4mm2(14-12) Max current: 37A
Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV3.5-4	#8	4.3mm	8	24.5	7.7	12.5	6.2	Black
RV3.5-5	#10	5.3mm	8	24.6	7.7
RVL3.5-5	#10	5.3mm	12	27.9	7.7
RV3.5-6	1/4	6.5mm	12	27.9	7.7
Lead section: 4-6mm2(12-10) Max current: 48A
Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV5.5-3.5	#6	3.7mm	7.2	21.4	5.9	12.5	6.7	Yellow
RV5.5-4S	#8	4.3mm	7.2	21.5	5.9
RV5.5-4L	#8	4.3mm	9.5	25.5	8.3
RV5.5-5	#10	5.3mm	9.5	25.5	8.3
RV5.5-6	1/4	6.5mm	12	31.5	13
RV5.5-8	5/16	8.4mm	15	33.7	13
RV5.5-10	3/8	10.5mm	15	33.7	13.7
RV5.5-12	1/2	13.0mm	19.2	38.1	16
