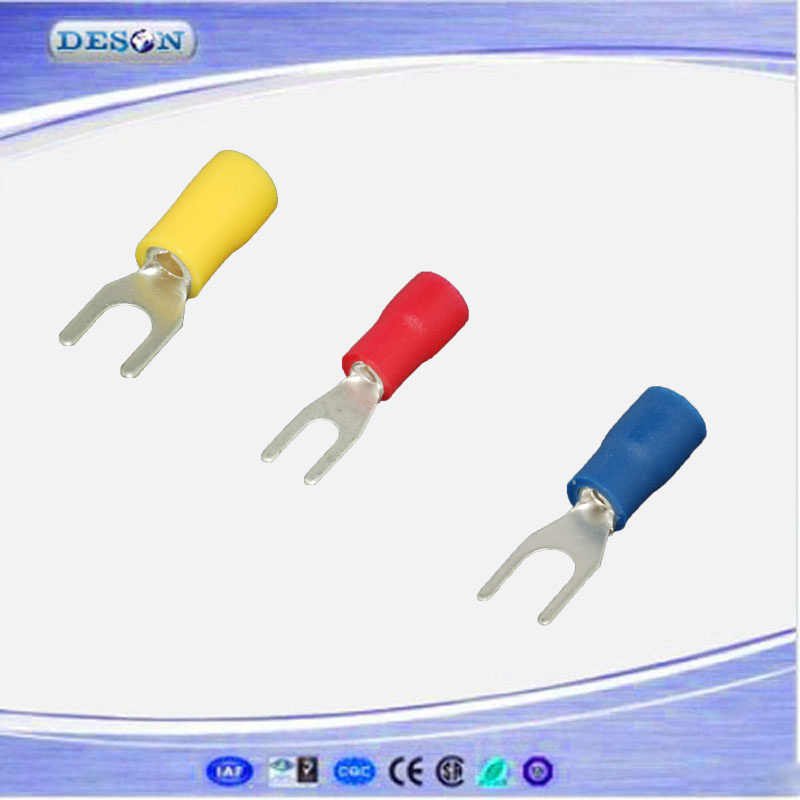

Vinyl Insulated Spade Connector Terminal

Prod Model:	SV
Insulated Material:	Vinyl / PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	75degree
Material:	Copper
Application:	Conduct Electricity
Type:	Connector Terminal
Shape:	Connector Terminal
Character:	Connector Terminal
Brand:	Deson

Product Description

Vinyl Insulated Spade Connector Terminal


1) Material: High conductivity copper. Nylon.
2) ROHS.SGS.
3) Most economical insulated splice available.    Industry stanRV series ring battery terminal with CE ROHS 16-14AWGdard color-coding indicates wire range. battery terminal
4) Vinyl insulation is securely fastened over a butted seam barrel. Insulation has flared entry for easier wire insertion.
5) We manufacture, supply and export high quality copper insulated terminal  that meets the requirements of machine industries.

6) High tensile strength, excellent performance and reliability. Available in various sizes.

7) This also comply with electrical specification are in accordance with the general requirement's.



lead section:0.5~1.5mm2(A.W.G:22~16)   Imax=19A    material:pure copper     thickness:0.75mm										thickness mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color
			W	L	F	d1	H	Dφ		T
SV 1.25-3.2	#4	3.2	5.7	21.2	6.5	1.7	10	4.2	red	0.8
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1/4inch	6.5	9.5	21.2	6.5
SVL 1.25-6	1/4inch	6.5	12	27.2	11
SV1.25-8	5/16inch	8.5	13.5	26.7	11.5		10	4.2	RED	0.8
lead section:1.5~2.5mm2(A.W.G:16~14)   Imax=27A  material:pure copper    thickness:0.8mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
			W	L	F	d1	H	Dφ
SV 2-3.2	#4	3.2	5.7	21.2	6.5	2.3	10	4.7	blue	0.8
SVS 2-3.5	#6	3.7	5.7	21.2	6.5
SVL 2-3.5	#6	3.7	6	21.2	6.5
SVS 2-4	#8	4.3	6.4	21.2	6.5
SVM 2-4	#8	4.3	7.2	21.2	6.5
SVL 2-4	#8	4.3	8.1	21.2	6.5
SVS 2-5	#10	5.3	8.1	21.2	6.5
SVL 2-5	#10	5.3	9.5	21.2	6.5
SVS 2-6	1/4INCH	6.5	9.5	21.2	6.5
SVL 2-6	1/4INCH	6.5	12	27.2	11
SV2-8	5/16INCH	8.5	13.5	27	11.5		10	4.7	BLUE
lead section:2.5~4mm2(A.W.G:14~12)    Imax=37A     material:pure copper    thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
			W	L	F	d1	H	Dφ
SV 3.5-3.5	#4	3.7	8	25.3	7.7	2.9	13	6.2	black	1
SV 3.5-4	#8	4.3	8		7.7
SV 3.5-5	#10	5.3	8		7.7
SV 3.5-6	1/4INCH	6.5	12	28.5	9.1
SV 3.5-8	5/16INCH	8.5	14	30.7	11.5
lead section:4~6mm2(A.W.G:12~10)       Imax=48A        material:pure copper     thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
			W	L	F	d1	H	Dφ
SV 5.5-3.5	#6	3.7	8.3	25.2	7	3.4	13	6.5	yellow	1
SVS 5.5-4	#8	4.3	8.3	25.2	7
SVL 5.5-4	#8	4.3	9	25.2	7
SV 5.5-5	#10	5.3	9	25.2	7
SVS 5.5-6	1/4	6.5	9	25.2	7
SVL 5.5-6	1/4	6.5	12	31.7	12
SV 5.5-8	5/16	8.5	14	30.7	11.5
