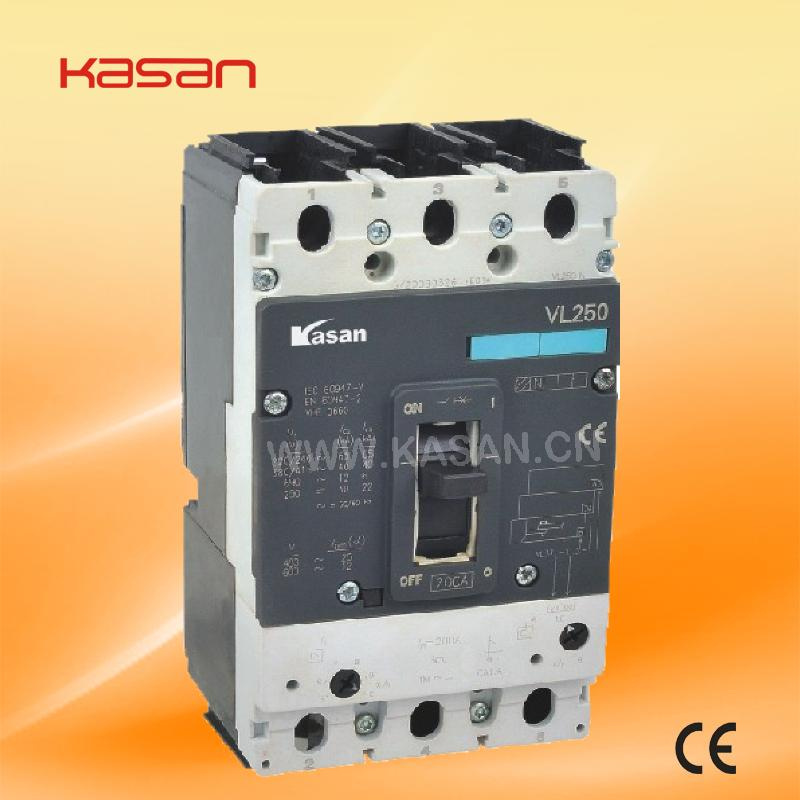

Vl Series Moulded Case Circuit Breaker MCCB (VL-160/250)

Name: Vl Series Moulded Case Circuit Breaker MCCB (VL-160/250)
Brand: all-electronics-online.com
SKU: 690344042
Availability: InStock
Rating: 5 (59 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	vl
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	3p
Standard.:	IEC60947-2
Speed:	High-Speed Circuit Breaker
Certification:	CE
Structure:	Moulded Case Circuit Breaker
Function:	Overcurrent Protection

Product Description

Specifications
1.3VL MCCB;
2.Various Types;
3.Certificate: CE/ISO9001;
4.Steady performance.
Application
3VL breaker(siemens MCCB,3VL siemens Circuit Breaker) is supplied with rated insutaling voltage 690V and used
for circuit of AC 50/60Hz, rated operating voltage AC 415V or below, rated opereating current from
16A to250A. It is designed for protection of electric circuit, motors, transformers and other equipments.
The products conforms to IEC60947-2 standard.

Specification

Type		(KVL)-160X	(KVL) -160	(KVL)-250	(KVL)-400	(KVL)-630
Poles number		3	3	3	3	3
Rated current In(A)		20~160A	50~160A	100~250A	200~400A	315~400A
Rated operating voltage Ue(V) AC 50/60Hz		690	690	690	690	690
Rated insulation voltage Ui(V)		800	800	800	800	800
Rated impulse withstand voltage Uimp(KV)		8	8	8	8	8
Utilisation category		A	A	A	A	A
Rated ultimate short-circuit breaking capacityIcu(KA)	AC 220/440V	65	65	65	65	65
	AC 380/415V	40	40	40	40	40
	AC 690V	8	12	12	12	12
Rated short-circuit servicebreaking capacityIcs(KA)	AC 220/240V	65	65	65	65	65
	AC 380/415V	40	40	40	40	40
	AC 690V	4	6	6	6	6

Thermomagnetic
T(thermal)
M(maghetic)

(KVL)-160X				(KVL)-160				(KVL)-250
In	T adjustable (0.8~1.0In)	M fixed	In		T adjustable (0.8~1.0In)	M adjustable	In		T adjustable (0.8~1.0In)	M adjustable
20A	16~20A	300A	50A		40~50A	300~600A	200A		160~200A	1000~2000A
32A	25~32A	300A	63A		50~63A	300~600A	250A		200~250A	1200~2500A
40A	32~40A	600A	80A		63~80A	400~800A

(KVL)-400				(KVL)-630
In	T adjustable(0.8~1.0In)	M adjustable	In		T adjustable(0.8~1.0In)	M adjustable
200A	160~200A	1000~2000A	315A		250~315A	1575~3150A
250A	200~250A	1200~2500A	400A		315~400A	2000~4000A
315A	250~315A	1575~3150A	500A		400~500A	2500~5000A
400A	315~400A	2000~4000A	630A		500~630A	3250~6500A
