Voltage-Level Translator IC PCA9306DC New and Original

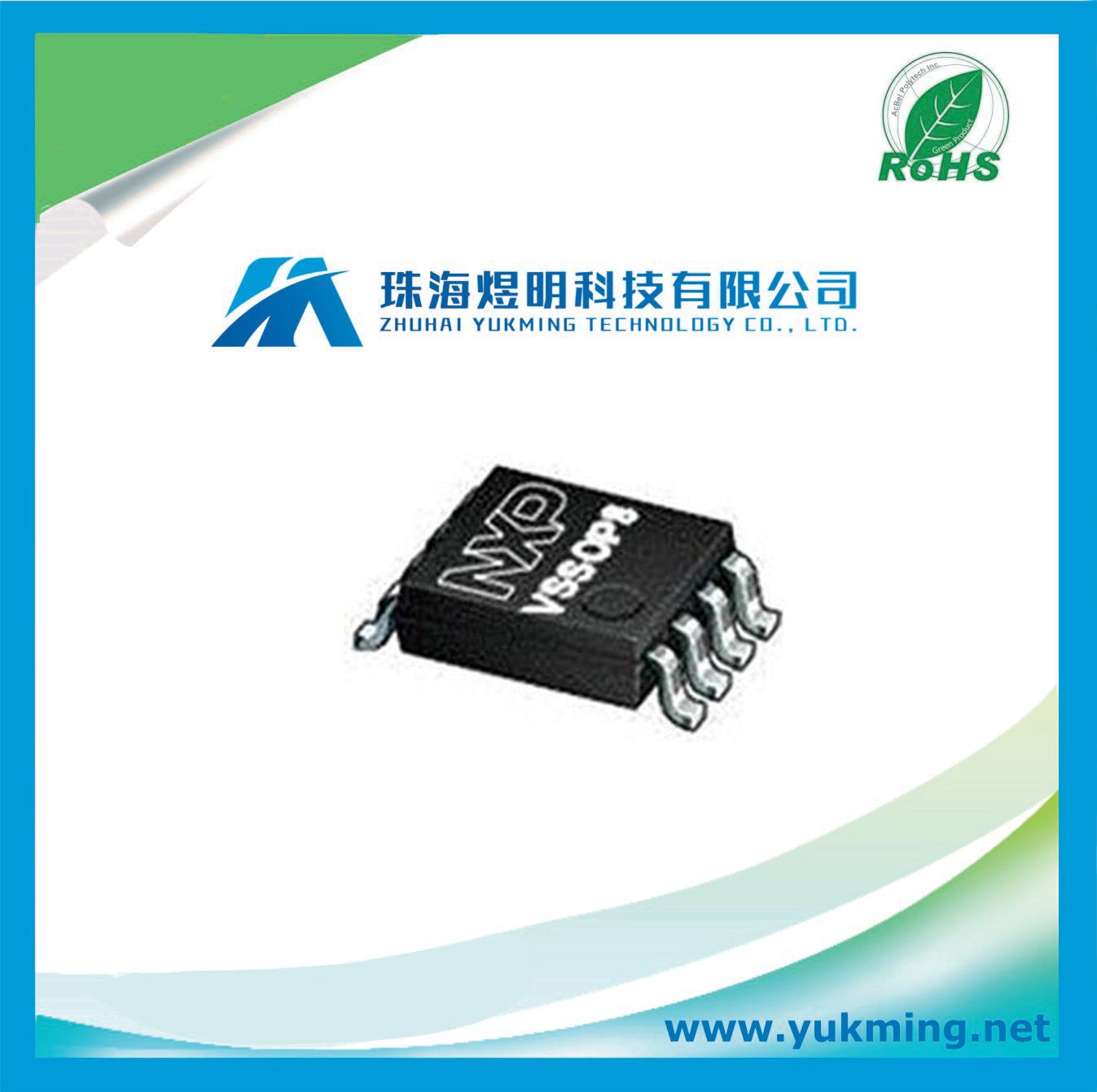

Name: Voltage-Level Translator IC PCA9306DC New and Original
Brand: all-electronics-online.com
SKU: 796897375
Availability: InStock
Rating: 4.3 (113 reviews)

Price:	US $ 0.5-3.5/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCA9306DC

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

FEATURES
2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications
Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible
Less than 1.5 ns maximum propagation delay to accommodate Standard-mode and
Fast-mode I2C-bus devices and multiple masters
Allows voltage level translation between:
1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)
1.2 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)
1.8 V Vref(1) and 3.3 V or 5 V Vbias(ref)(2)
2.5 V Vref(1) and 5 V Vbias(ref)(2)
3.3 V Vref(1) and 5 V Vbias(ref)(2)
Provides bidirectional voltage translation with no direction pin
Low 3.5 ΩON-state connection between input and output ports provides less signal
distortion
Open-drain I2C-bus I/O ports (SCL1, SDA1, SCL2 and SDA2)
5 V tolerant I2C-bus I/O ports to support mixed-mode signal operation
High-impedance SCL1, SDA1, SCL2 and SDA2 pins for EN = LOW
Lock-up free operation
Flow through pinout for ease of printed-circuit board trace routing
ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per
JESD22-A115, and 1000 V CDM per JESD22-C101
Packages offered: SO8, TSSOP8, VSSOP8, XQFN8

VSSOP8: plastic very thin shrink small outline package; 8 leads; body width 2.3 mm

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
