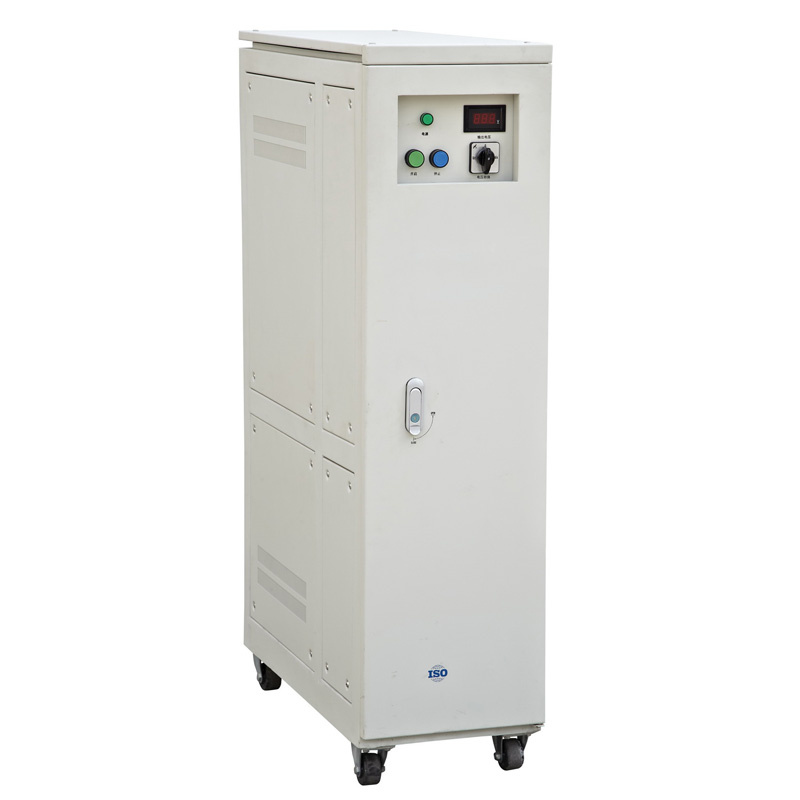

Voltage Optimization Unit/ Energy Saving Cabinet
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
VOU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Middle: |
1 |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
Voltage Optimization |
| Frequency: |
Industrial Frequency |
Product Description
Electrical equipment is designed to accept a wide range input voltages about its nominal design. However, if actual supply is higher than necessary the equipment will consume more power than needed and in many cases, equipment life is reduced, effective in creasing the cost of ownership. A 230V linear appliance operated at 240V will consume approximately 9% more energy than necessary. A voltage reduction within statutory limits can produce up to 25% (subject to load) reduction in energy consumption and in addition will extend the life of many types of electrical equipment. By reducing supply voltage to a controlled, site adjustable level, our Voltage optimization unit(VOU) allows equipment to operate at optimum efficiency. The result is lower over all running and ownership cost and reduced carbon footprint-each kWh of electrical energy saved equivalent to 0.537kg of CO2.Features and benefits1. Energy saving up to 25%2. Stable and regulated output3. Prolonged equipment life span4. Internal no-break bypass -allowing no power interruption during maintenance5. Adjustable configurations based on site requirements6. Multifunction meter with remote control and monitoring7. Internal protection against over voltage and over current8. Single and three phase up to 6000 KVASpecifications1. Input voltage adjustable Phase to neutral: 230V±15%(195V~265V)adjustable
2. Output voltage adjustable Phase to neutral: 220V adjustable
3. Output accuracy ±1.5%
4. Frequency 50/60 Hz
5. Voltage regulation mode Independent phase regulation
6. Insulation Class H class
7. Operation ≥80,000 hours
8. Method of voltage regulation regulation transformer with servomotor
9. Efficiency >98%
10. Protection class IP20(indoor),outdoor on request
11. Electrical safety CE equivalent
12. Operation temperature -20ºC to +45 ºC
13. Relative humidity <90%
14. Master controller remote control and monitoring the VO unit parameters
15. Remote control(optional)
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.
Experienced and Fully Customizable Solutions
As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.
ISO 9001: 2008 Certified Processes
ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.
Outstanding Service
As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
