| Prod Model: |
DBW |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
DBW |
| Frequency: |
Industrial Frequency |
Product Description

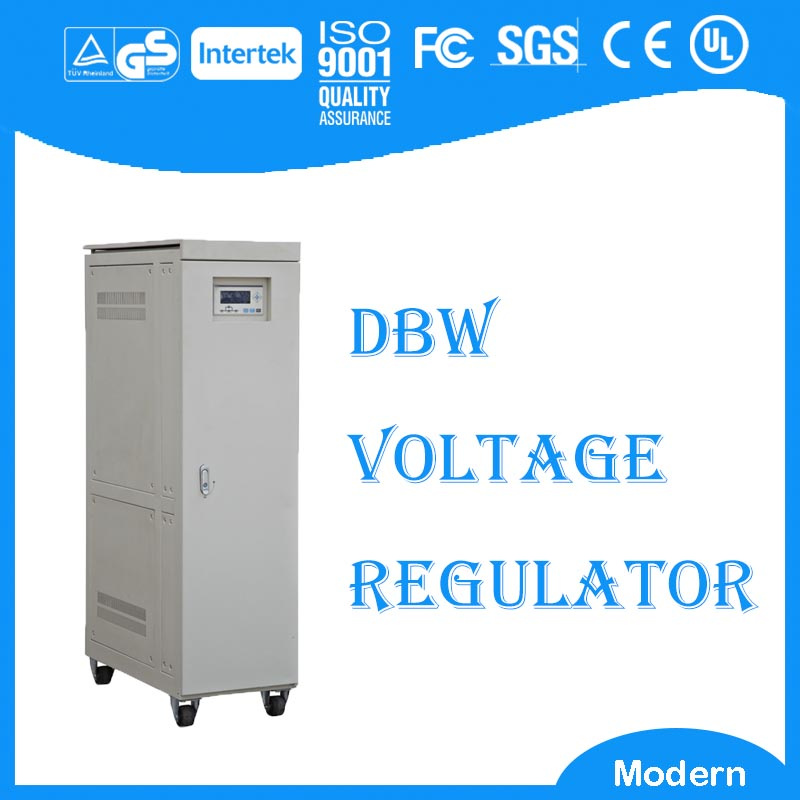

Overview The MODERN range of AC Power Conditioner(Voltage Stabilizer/Voltage Regulator) are universally recognized as the finest range of servo-controlled voltage stabilizers. The units couple exceptional performance with unequalled build quality to provide an unmatched combination of reliability and versatility. The units are designed to correct power quality problems like brownouts, surges, over-voltage, sags, voltage imbalance, unbalanced current, line noise etc. In the main power supply. Our Power Conditioner features voltage regulation, isolation, filtering, harmonic cancellation, transient suppression, surge protection, or any combination of these in a one-box solution. Besides that, our patent voltage regulating transformer enabling us to make unique small dimension Power Conditioners especially for individual regulation. Features Extremely wide voltage regulation rangeMaintenance free roller type carbon brushIndividual regulation with unique small dimensionMaximum capacity up to 2,000KVALong MTBF timeReliable and quiet servomotorsWheels mounted for easy installationStart up delay to prevent over current inrushIsolation transformer on requestIndoor or outdoor version on requestOut voltage regulator
DBW is for single Phase Use
SBW is for three phase use
( DBW-1KVA, 5KVA, 10KVA)We reserve the right to change specifications without notice due to continual improvements
|
Model |
DBW |
SBW |
|
Capacity (KVA) |
1000 |
|
Input voltage |
Single Phase: 220V±20% Other on request |
|
Three Phase:380V±20% Other on request |
|
Output voltage |
Singel Phase:220V- 230V(Adjustable) |
|
Three Phase: 380V - 405V(Adjustable) |
|
Output accurac y |
±1-5% Upon your request |
|
Frequency |
50Hz |
|
Insulation resistance |
≥2MΩ |
|
Noise |
<55dB |
|
Voltage regulation mode |
Independent phase regulation |
|
Wave deformation |
Nil |
|
Insulation class of transformer |
H class |
|
Wire system |
Single Phase |
|
Three Phase : 3-Phase-4-wire-system or 3-Phase-5-wire system |
|
Operation time |
≥80,000 hours |
|
Long Life Time Carbon brush |
140,000 times with only about 0.01mm roller carbon brush abrasion |
|
Method of voltage regulation |
Regulation transformer with servomotor |
|
Insulated strength |
Single phase: 2000V/1min without puncture |
|
Three phase: 2500V/1 min without puncture |
|
Package Material |
Carton for batch volume, Wooden packing for small volume |
|
Efficiency |
>96% |
|
Housing |
IP20(Indoor) |
IP55(Outdoor) |
|
Electrical safety |
CE equivalent |
|
Operating temperature |
-20 °C to +50 °C |
|
Altitude |
<1000m |
|
Relative Humidity |
<90% |
|
Material of Sliding coil |
Copper, and inner and outer winding both |
|
Functions |
Malfunction protection;Short-circuit protection, |
|
Lack Phase protection; Manual bypass,Safe start |
|
Alarm and silence, Under/Over voltage Protection |
|
Optional Functions |
Auto Power-on;Isolation Transformer;
Surge Protection;Remote Monitor |
|
|
|
Phase |
Model |
Capacity(KVA) |
Dimension(H×W×D)mm |
Cabinet(QTY) |
|
Single Phase |
DBW-10 |
10 |
1020×300×700 |
1 |
|
DBW-15 |
15 |
1020×300×700 |
1 |
|
DBW-20 |
20 |
1020×300×700 |
1 |
|
DBW-30 |
30 |
1020×300×700 |
1 |
|
DBW-50 |
50 |
1120×380×750 |
1 |
|
DBW-80 |
80 |
1220×400×780 |
1 |
|
DBW-100 |
100 |
1220×400×780 |
1 |
|
DBW-150 |
150 |
1420×450×930 |
1 |
|
DBW-200 |
200 |
1420×450×930 |
1 |
|
Three Phase |
SBW-10 |
10 |
1020×300×700 |
1 |
|
SBW-20 |
20 |
1020×300×700 |
1 |
|
SBW-30 |
30 |
1020×300×700 |
1 |
|
SBW-50 |
50 |
1120×380×750 |
1 |
|
SBW-80 |
80 |
1220×400×780 |
1 |
|
SBW-100 |
100 |
1220×400×780 |
1 |
|
SBW-150 |
150 |
1420×450×930 |
1 |
|
SBW-200 |
200 |
1520×520×980 |
1 |
|
SBW-300 |
300 |
1720×600×1380 |
1 |
|
SBW-500 |
500 |
1860×720×1580 |
1 |
|
SBW-800 |
800 |
1860×900×1080 |
1 |
|
SBW-1000 |
1000 |
1860×900×1080 |
2 |
|
SBW-1500 |
1500 |
1860×900×1080 |
3 |
|
SBW-2000 |
2000 |
1860×900×1080 |
3 |
