Volume Smaller Mini Recover Type Displacement Sensor for Medical Equipment

Volume Smaller Mini Recover Type Displacement Sensor for Medical Equipment
Price: US $ 110-120/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KTR-100
Working Usage: Reach Fifty Million
Warranty: 12months
Working Speed: 3m/S
Application: Medical Equipment Sensor
Material: Aluminum Alloy

Product Description

Volume Smaller Mini Recover Type Displacement Sensor for Medical Equipment

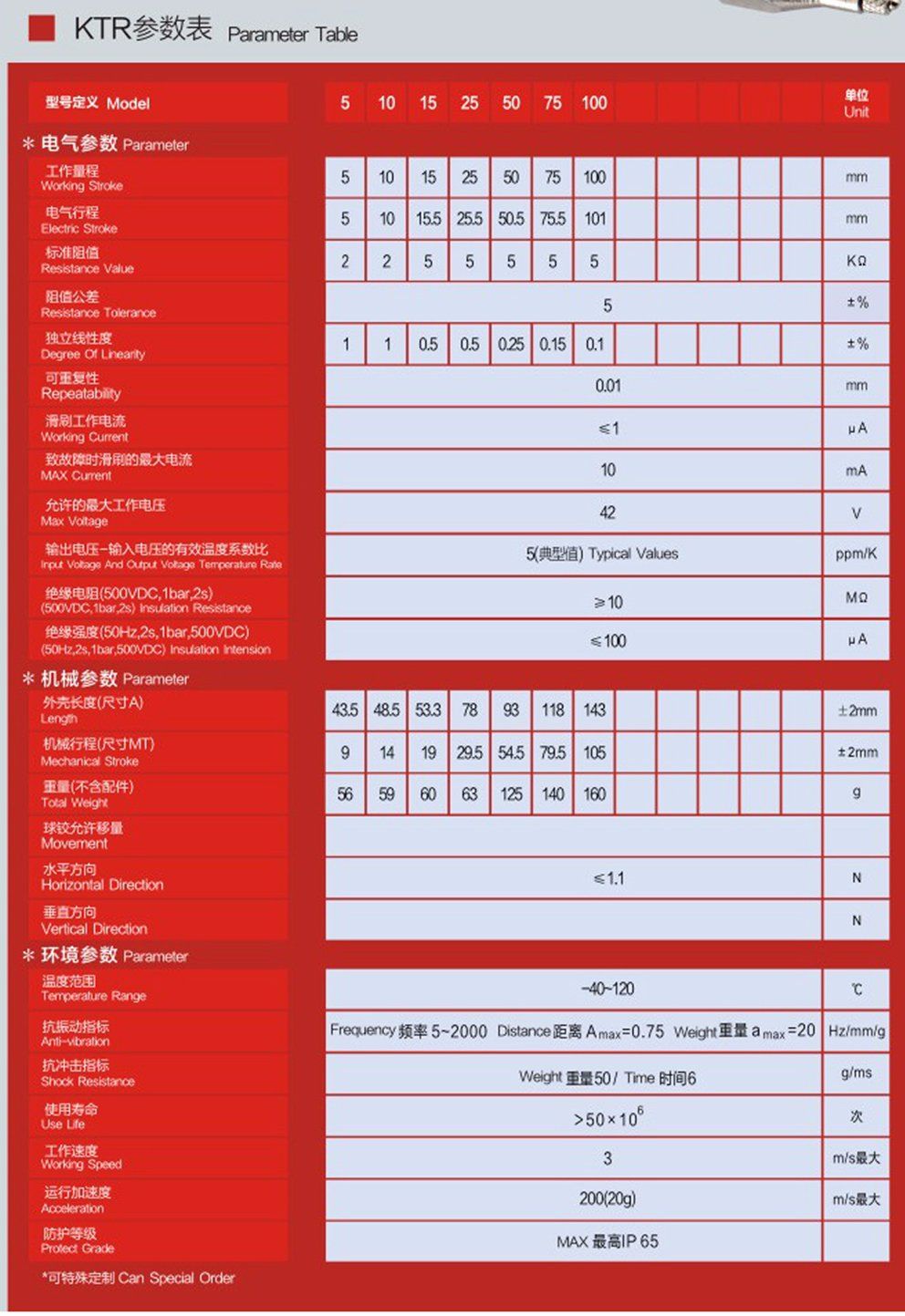

RepeatabilityWorking
Speed
Working
Current
Working StrokeTemperature RangeHorizontal Direction
mmm/sμAmmºCN
0.013≤15-100-40~120≤1.1
KTR is a self-recovery, is the minimum size of the miniaturization of structures, particularly suitable for small occasions, top putters do not need to install without having to
KTR Recover Sensor Product  feature:
  1. Volume smaller
  2. Usage life is longer, Times could reach fifty million
  3. Sensor with back spring
  4. Could  use  in  all kinds of worse environment(humid, oily, dusty)
  5. Protection grate is ip65
  6. Din standard contact point
  7. Double bearing type bar
  8. Don't affect with an external impact and vibration
  9. Cable type connection
  10. Could equip with voltage and current(2line, 3line) module

External mechanical bias effect on accuracy:

1. traction when the misalignment error S2=10002+102.S=1000.05mm. real traction lines with errors of the trip will be S=0.05mm

2. horizontal traction dangling error is: S2=1002+102,S=1000.05mm, the actual string error and trips will be 2S=0.1mm

3. traction side-wind effects error is S2=1002+202,S=1000.20mm, the actual string and trip error is 2S=0.40mm

Error rate: 0.02%FS

4.so the corded foot is one of the biggest advantages of the installation of demand is not high, the linear precision less affected by external bias.
