| Prod Model: |
Z900 speed controller |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
V/F Control Open Loop Vector Control |
| Frequency Range: |
0~320Hz, 0~3200Hz |
| Speed Range: |
1:100(SVC) |
| Power Range: |
0.4~315kw |
| Speed Controller: |
0.4kw Speed Controller |
| VSD: |
Variable Speed Drive |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric Inverter |
Product Description
ItemZ900

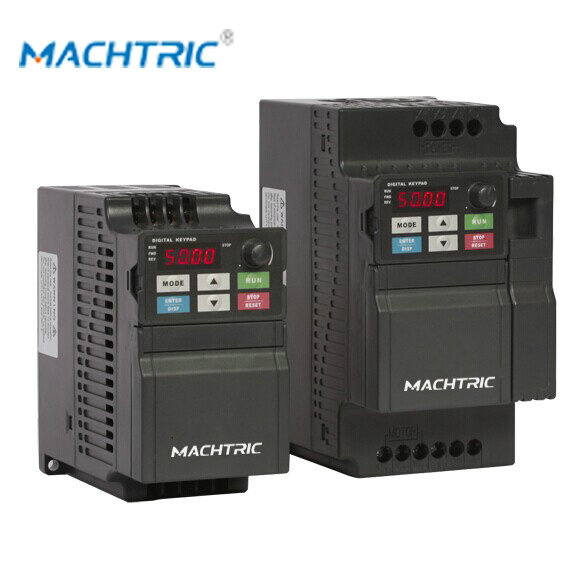

1.5KW 2HP VFD 7A 220V Single Phase Variable Speed Drive VSD Drive Inverter AC Drive Inverter With RS-485 Communication Interface
Control mode: Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control
Maximum frequency: Vector control: 0-300 Hz
V/F control: 0-3200Hz
Carrier frequency: 1 kHz-16 kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution
Dgital setting: 0.01 Hz
Analog setting: Maximum frequency X 0.025%
Startup torqG type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100%
Speed range
1: 100 (SFVC)
Speed stability accuracy± 0.5% (SFVC)
Overload capacityG type: 60s for 150% of the rated current,
3s for 180% of the rated current.
P type: 60s for 120% of the rated current,
3s for 150% of the rated current.
Torque boostAuto-boost
Customized boost 0.1%-30.0%
V/F curve
Liner V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,
1.8-power, square)
V/F separationTwo types: Complete separation; Half separation
Ramp mode
Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC brakingDC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0%
JOG control
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s
1.2 Description of Name Plate
MODEL: Z900-4T3.7GE/5.5GP
INPUT: 3pH 380V 50Hz/60Hz
OUTPUT: 3pH 380V 9.0/13.0
FREQ RANGE: 0.1-320Hz 3.7/5.5KW
140113111111
MODEL: Z - 9- 00 - 4T3.7GE/5.5GP
Specific symbol(Blank for normal product)
3R7: 3.7KW
G: Constant torque
P: Variable torque
200: 1pH AC220V
400: 3pH AC380V
9: Z900 series inverter
Z: Z series inverter
Why choose Sanch frequency inverter?
1. Easy operating system. --- easy but effective software, gentle touch achieve.
2. Stable performance--- best famous company ensure the quality all the time.
3. Excellent after sales service--- never leave you along.
4. Fast delivery --- safety delivery, we look after it all the time.
We looking forward to cooperate with you!
About us :
We are professional manufacturer under Sanch organization from Taiwan supplying with factory automation products like variable frequency inverter (AC drive),
Circular knitting machine controller, power controller and total solution for industrial electric control system as client's demands.
2000:
Sanch moved to China in 2000 and exported to more than 30 countries and areas
2005:
Since 2005 with our superior products quality and technical support service.
Sanch has been recognized as one of the "Top 10" Inverter manufacturer in China Taiwan and mainland in 2005.
2010:
From 2010 we start to make the FVR-Micro series inverter for FUJI Electric Japan. Also OEM for India Jeltron!
Price list:
Could you pls tell me which power range of inverter are you interested in?
Delivery time required:
Normally in one week or two week, depend on quantity! .
Minimum order value:
MOQ =1
Variable Frequency Drives Variable Speed Drives Frequency Converters AC converters
Frequency Inverters AC Drivers AC Drives AC Motor Drives VFD VSD Transistorized Drives
| Model No. | Input Voltage | Rated Output Power (KW) | Rated Input Current(A) | Rated Output Current (A) | Motor Power (KW) |
| Z900-2S0.4GE | 1PH AC
220V?50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | 1PH AC
220V?50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | 1PH AC
220V?50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S2.2GE | 1PH AC
220V?50/60Hz | 2.2 | 16 | 10.0 | 2.2 |
| Z900-2S3.7GE | 1PH AC
220V?50/60Hz | 3.7 | 23 | 16.0 | 3.7 |
| Z900-4T0.75GE | 3PH AC
380V@50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 3PH AC
380V@50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 3PH AC
380V@50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5GP | 3PH AC
380V@50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 3PH AC
380V@50/60Hz | 5.5 | 15.0 | 13.0 | 5.5 |
| Z900-4T7.5GE | 3PH AC
380V@50/60Hz | 7.5 | 14 | 17.5 | 7.5 |
| Z900-4T7.5GE/11GP | 3PH AC
380V@50/60Hz | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| Z900-11GE/15GP | 3PH AC
380V@50/60Hz | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
Z900-15GE/
18.5GP | 3PH AC
380V@50/60Hz | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Z900-18.5GE/
22GP | 3PH AC
380V@50/60Hz | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| Z900-22GE/30GP | 3PH AC
380V@50/60Hz | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
