VV-PVC Insulated PVC Sheathed Power Cable

Name: VV-PVC Insulated PVC Sheathed Power Cable
Brand: all-electronics-online.com
SKU: 639595555
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 0.15-0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC016
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

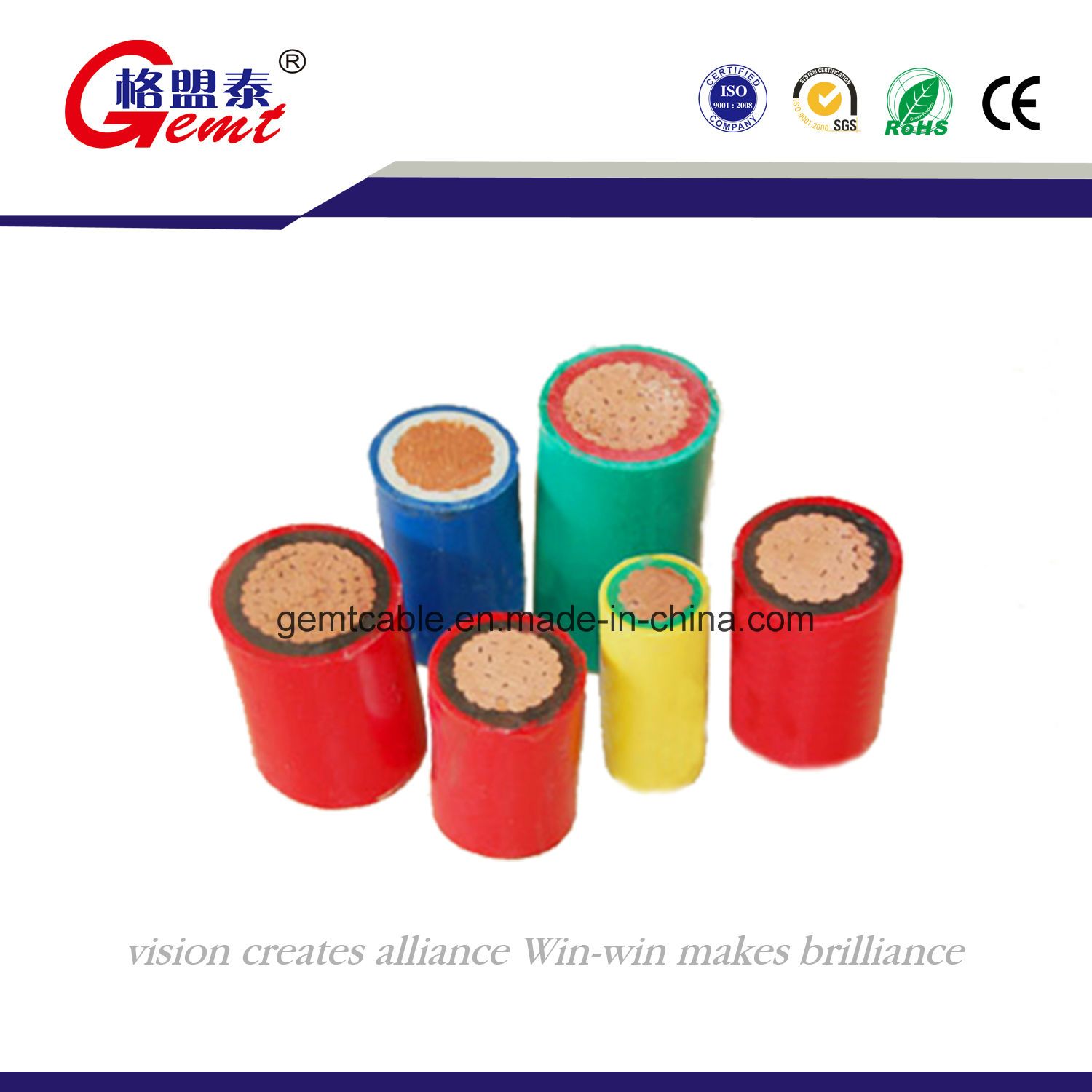

VV-PVC Insulated PVC Sheathed Power Cable

A. Specifications

1.Rubber or PVC Welding Cable
2.10-190mm2
3.Copper or CCA Welding Cable
4.25 years OEM Welding cable
5.ISO,CE,ROHS,REACH

B. Description:

2.Standard
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381

3. Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.

4. Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.

5. Conductor Materials: Copper

6. Jacket: Rubber or PVC

7. Applications: For Welding Machines and so on

8.The general data of the cable 245 IEC 81 and 245 IEC 82

No minal Section Area(mm²)	Copper Wire No./Dia.(mm)	Insulated Sheath Thickness(mm)	Average of the Max Outer Dia(mm)	Conductor Resistance at 20(≤Ω/km)	Weight (kg/km)
10	322/0.20	1.80	9.7	1.91	151.6
16	511/0.20	2.16	11.5	1.61	224.0
25	798/0.20	2.14	13.0	0.758	326.0
35	1121/0.20	2.07	14.5	0.536	430.0
50	1596/0.20	2.22	17.0	0.379	600.0
70	2204/0.20	2.29	19.5	0.268	818.1
95	3002/0.20	2.50	22.0	0.198	1082.7

8. Application:

Rated volt is 0.6/1kV
Max temperature of cable conductor is 70.
Max temperature is lower than 160 when cable is short circuit for less than 5 seconds.

Introduction:
Suitable to be installed in electrical power transmission and distribution lines rated voltage exchange 50Hz and 1KV.
Conductor's rated working temperature: ≤70
Short-circuit temperature: 160/5sec
Cable laying environment: ≥0
Cable laying, bend radius: ≥10 times cable O. D.

C. Why Choose Us(GEMT):

G--Guaranteed quality

E--Effective service

M--Mutual benefit

T--Top technique

GEMT Cable, Friend Reliable

D.FAQ

Q: Can I have a sample?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.

Q: How long is the lead time?

A: Sample needs 1-2 days; mass production needs 15-30 days.

Q: Do you have the MOQ limit?

A: Our MOQ is 100-10000meters, depending on the products;

Sea Port: FOB Shenzhen.

Q: Do you provide OEM or ODM services?

A: Yes, we do.

Q: Do you offer guarantee for the products?

A: Yes, we offer five years guarantee for the products.

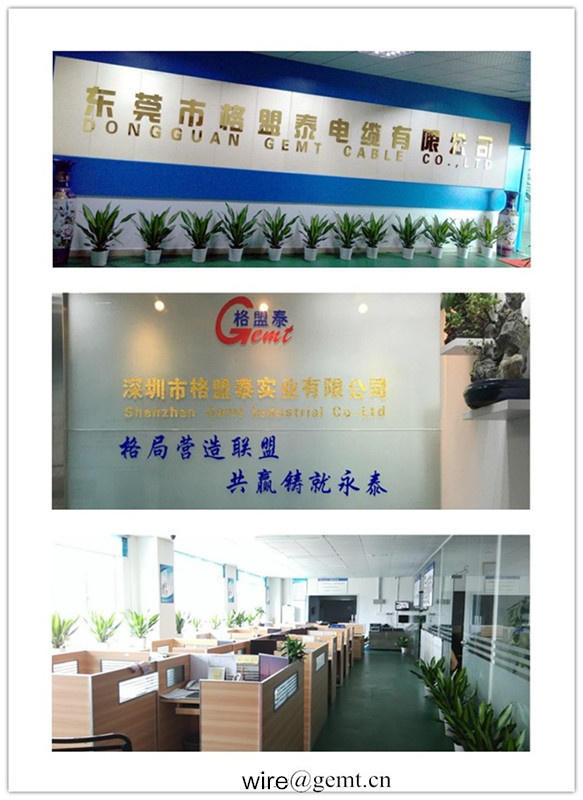

E. Company Information:
Company:

Factory:

Trade Show:

Packing & Shipping:

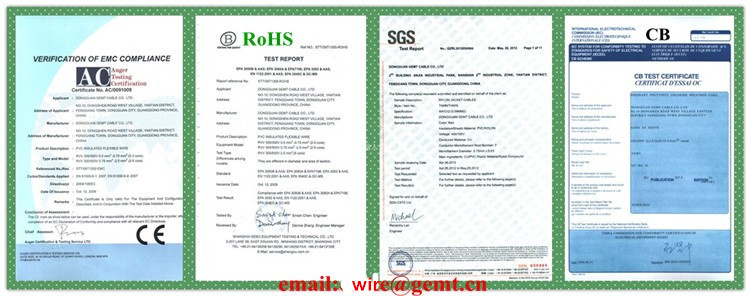

Certification:

WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~

PLS FEEL FREE TO

CONTACT ME : VERA ZHUANG
TEL:+86-13415529380

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
