W P-9000 /W P-9100 Ntc Temperatreu Sensor/Temperature Sensor/ Ntc Temperature Sensor Used with Proportional Integra Thermostat

Name: W P-9000 /W P-9100 Ntc Temperatreu Sensor/Temperature Sensor/ Ntc Temperature Sensor Used with Proportional Integra Thermostat
Brand: all-electronics-online.com
SKU: 703692422
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	W P-9000 /W P-9100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Type:	Screw Thread
Sensing Type:	Ntc
Material:	Brass,Plastic
IP Rating:	IP54

Product Description

Product introduction

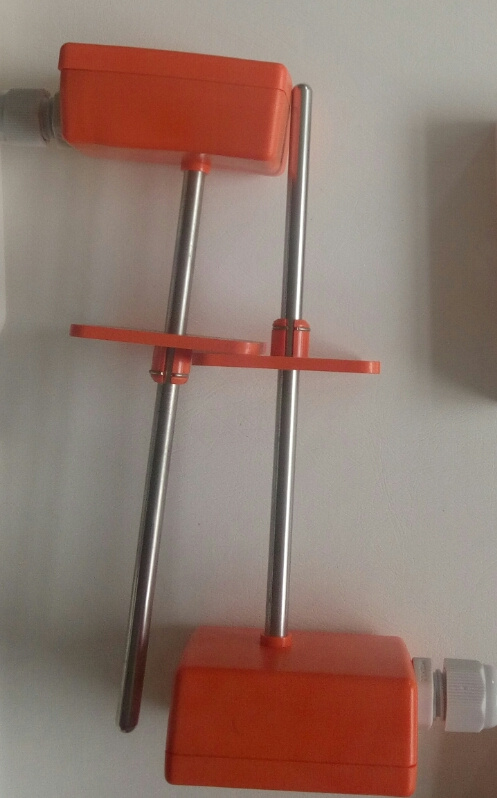

WP series temperature sensor adopts NTC temperature sensing parts. It is produced by accurate package technology. It has high sensibility, strong stability, corrosion preventive, long working life and convenient installation. It can adapt to any bad environment like high or low temperature and damp. The temperature sensor can quickly checks the temperature of air and water, then transmit the signal to control system to accurately control the temperature of air and water.

Feature
Sensing parts: NTC
Operation range: 0~120ºC
Highest temperature of terminal box: 70ºC
Material of terminal box: Tenacious fire PA engineering plastics
Installation: Screw connection, insert type.
Terminal material: Fire PA engineering plastics
Protection grade: IP54
Pole pipe material: Brass (nickel-plate)

Model	Sensing parts	Temperature range	Pole pipe diameter	Pole pipe length
WP-9000	NTC 10	0~120ºC	Φ6mm	135mm
WP-9000a	NTC 10	0~120ºC	Φ6mm	135mm
WP-9100	NTC 20	-30~120ºC	Φ6mm	135mm
WP-9100a	NTC 20	-30~120ºC	Φ6mm	135mm

Model	Sensing parts	Temperature range	Pole pipe diameter	Pole pipe length
WP-9000	NTC 10	0~120ºC	Φ6mm	135mm
WP-9000a	NTC 10	0~120ºC	Φ6mm	135mm
WP-9100	NTC 20	-30~120ºC	Φ6mm	135mm
WP-9100a	NTC 20	-30~120ºC	Φ6mm	135mm
