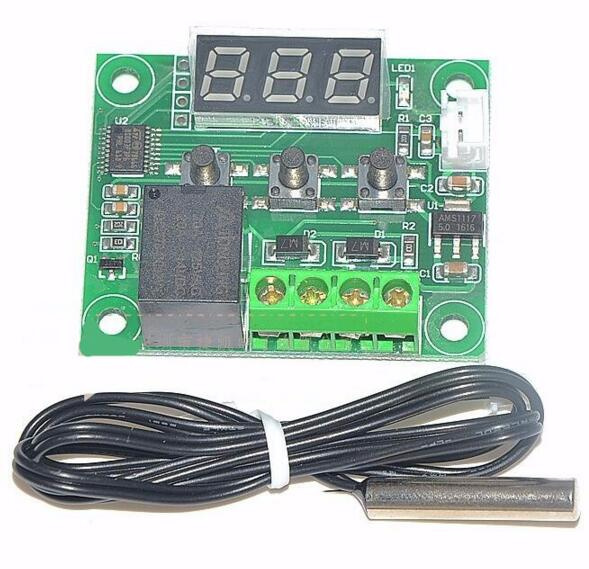

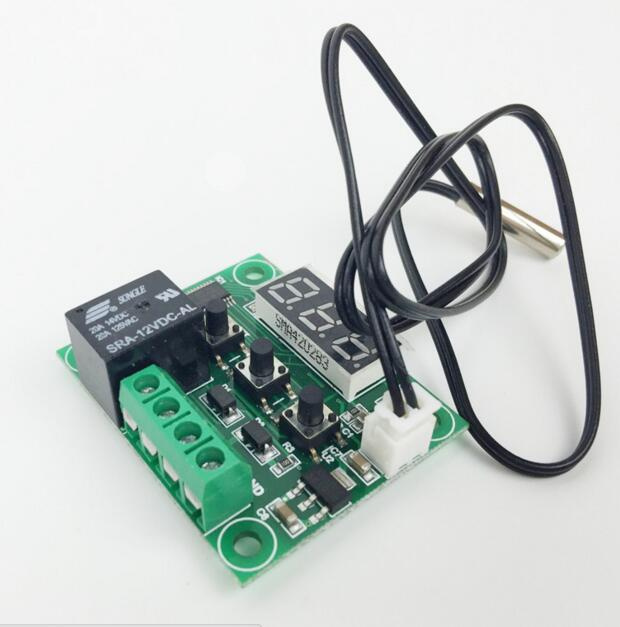

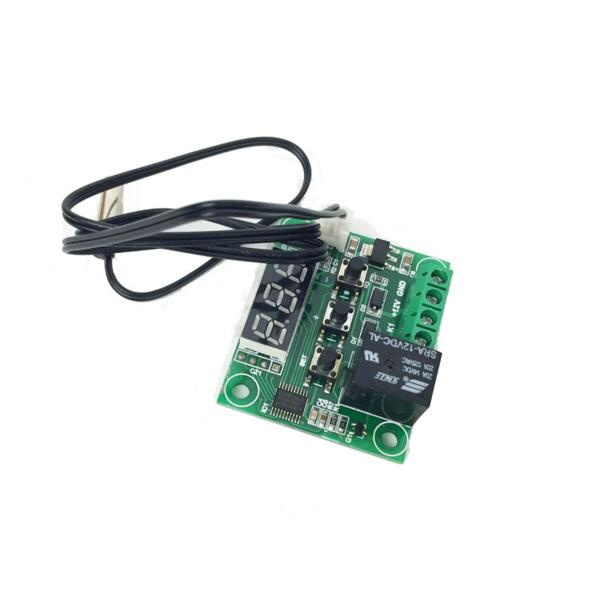

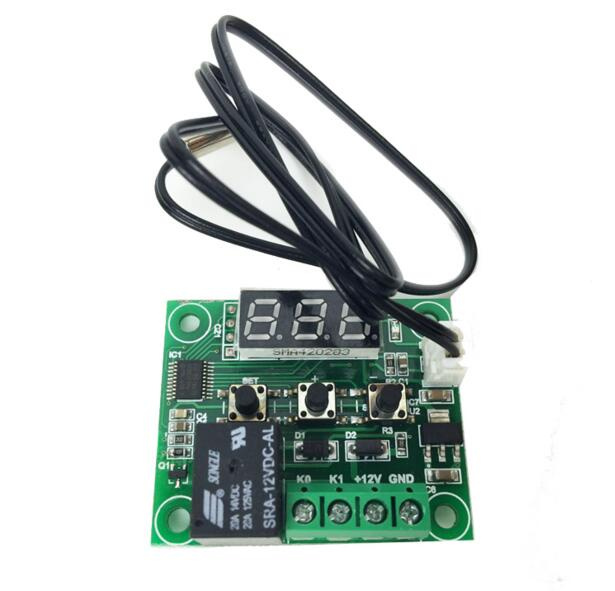

W1209 LED Digital Thermostat Temperature Control Thermometer Thermo Controller Switch Module DC 12V Waterproof Ntc Sensor

Name: W1209 LED Digital Thermostat Temperature Control Thermometer Thermo Controller Switch Module DC 12V Waterproof Ntc Sensor
Brand: all-electronics-online.com
SKU: 816201665
Availability: InStock
Rating: 4.8 (126 reviews)

Price:	US $ 1.5-3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	W1209
Dimensions:	48.5 * 40mm
Temperature Control Mode:	on / off
Control Accuracy:	0.1c
Refresh Rate:	0.5s
High Temperature Protection:	0-110c
Supply Voltage:	DC 12V
Static Current:	< 35mA, Attract Current < 65mA
Output Power:	20A Relay
Environmental Requirements:	-10 ~ 60c
Humidity:	20% -85%

Product Description

W1209 DC 12V heat cool temp thermostat temperature control switch temperature controller thermometer thermo controller

Specifications:

Temperature range :-50-110C

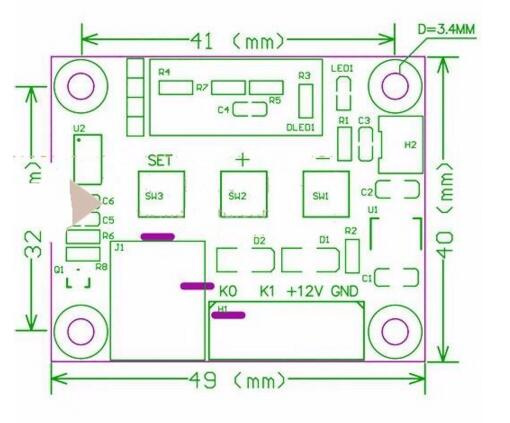

Dimensions:48.5 * 40mm

Temperature control mode:ON / OFF

Resolution:When temperature is 0.1C, the resolution is -9.9~99.9, other temperature segment is 1C

Control accuracy:0.1C

Hysteresis accuracy:0.1C

Refresh rate: 0.5S

High temperature protection: 0-110C

Supply voltage: DC 12V

Static current: < 35MA, attract current < 65MA

Output voltage: DC 12V

Output power: 20A relay

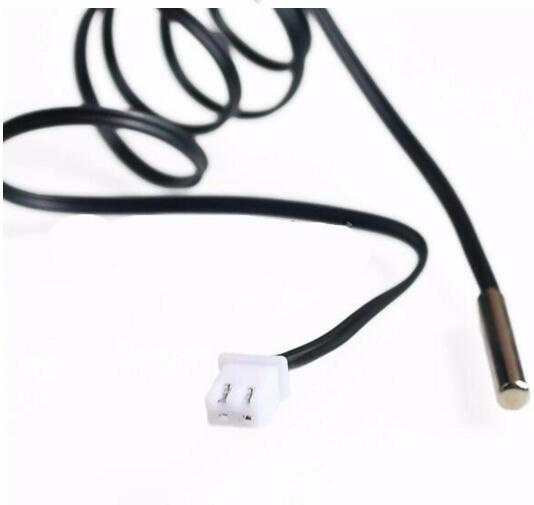

Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmenal requirements: -10 ~ 60C , Humidity 20% -85%

How to use:

Connect the power supply and the load, you can supply to the controller,

Is displayed as a measured temperature,

Press theSET button, the display flashes the temperature,

Press - to set the desired temperature,

After settig press SET to confirm return,

The controller automatically performs the relay by setting off!

Lights, LED status descriptions:

Indicator:Off The relay is switched off, Always indicate the relay is closed.

LED: Shows LL is the sensor open, showing? HH is out of range, the thermostat will be forced to close the relay, the display -- as high temperature protection.

Package Included:

1 x -50-110C W1209 Digital thermostat Temperature Control Switch 12V + sensor
