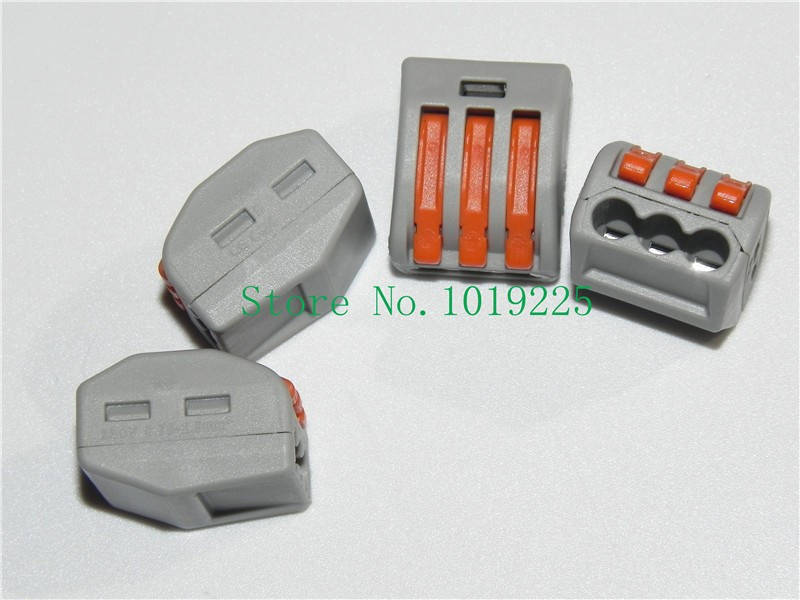

Wago 222-413 Wire Connector 3 Pin Conductor Terminal Block

Prod Model:	WK0240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PC
Number Of Connection Pins:	3p
Color:	Grey
Rated Voltage En (1) V:	400V
Nominal Current (a):	32A
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Round
Contact Termination Form:	Welding Connection
Brand:	Leader

Product Description

 More details please contact:





Type of wiring	Side-entry of wiring
Fire load (MJ)	0.067
Weight	3.025g
Width	12.54mm
Height	14.5mm
Lenght	20.5mm
Saftey information 1	In grouded power lines
Pollution degree (1)	2

Efficiency
In use, without tools (except telephone splitter), a plug can greatly reduce the wiring work time, use the connector WAGO connection than the traditional 80% efficiency. Each product is tested hole mounting, installation, testing, maintenance convenient.
Practicality
WAGO connector Crimping range is very wide, on the junction box connector (773 series) is concerned, it's pressure line ranges between 0.75 and 2.5 square millimeters, in practice there is a strong practical. For an air conditioner, water heater circuit using 4 square millimeters conductors, as well as pressure line ranges from 1.5 to 4 square millimeters connectors (273 series).For the connection of lamps, lighting and small appliances connectors (224 series) is more excellent, both to solve the high-altitude operations have caused inconvenience, but also solve the soft and hard wire connections bad technical problems. It can be said set of safety and practicality in one. For telephone line branch connection, telephone splitter a good solution to the telephone line fine, soft, wire size and other characteristics inconsistent, effective solution to the telephone line connection was unreliable bring signal attenuation of noise and other outstanding issues. In fact, for the home decor, using WAGO connection technology, the engineering of its cost improvement in the proportion of its total cost is minimal.
