Wall Corner Mount Infrared Motion Sensor Switch (KA-S22A)

Name: Wall Corner Mount Infrared Motion Sensor Switch (KA-S22A)
Brand: all-electronics-online.com
SKU: 683265755
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 3.2-5.6/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-S22A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery:	Within 20 Days
Usage:	All Kinds of Lamps
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.

Product Description

KA-S22A Wall Corner Mount Infrared Motion Sensor Switch specifications:
1. Power source: 220V/AC~240V/AC; 110V/AC~240V/AC
2. Related load: 1200W (220V/AC~240V/AC)
3000W(220V/AC~240V/AC
800W (110V/AC~130V/AC)
1500W(110V/AC~130V/AC)
3. Power frequency: 50/60Hz
4. Control light: < 3LUX~sunshine light
5. Working time: Min: 8sec± 3sec; Max: 7min± 2min
6. Working temperature: -10~40º C
7. Detection range: 220 degree
8. Working humidity: < 93%RH
9. Detection distance: 11m max(< 24º C)
10. Power consumption: 0.45W(static 0.1W)
11. Installation height: 1.5m~2.5m
12. Detection moving speed: 0.6~1.5m/s
13. Waterproof grade: IP44

Product introduction:
This product is a new energy-saving lighting Switch, it adopts two high sensitivity detectors, integrated circuit and SMT technology. It gathers the functions of automatism, convenience, safety, energy saving, etc. The wide detection is comprised by the right and left services field, which utilizes human infrared rays as signal control source to start the load when one enters the detection field. The sensors can identity day and night automatically. It is used widely and easy to install with the function of power show and detection show.

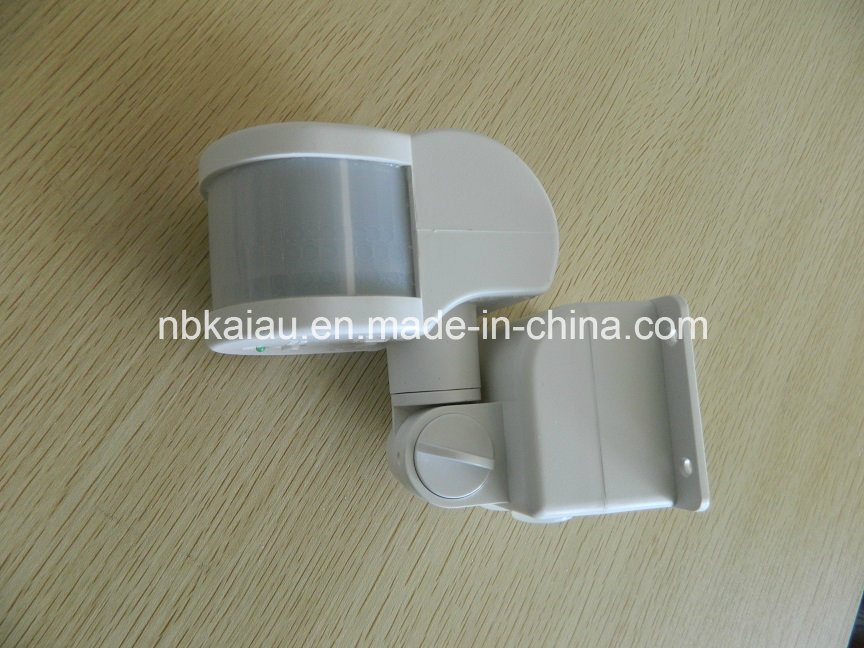

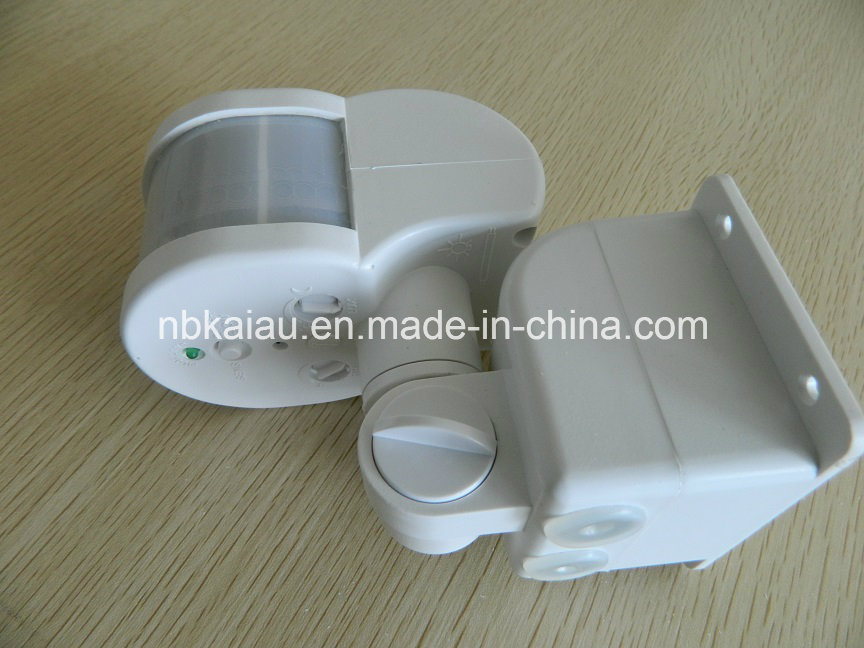

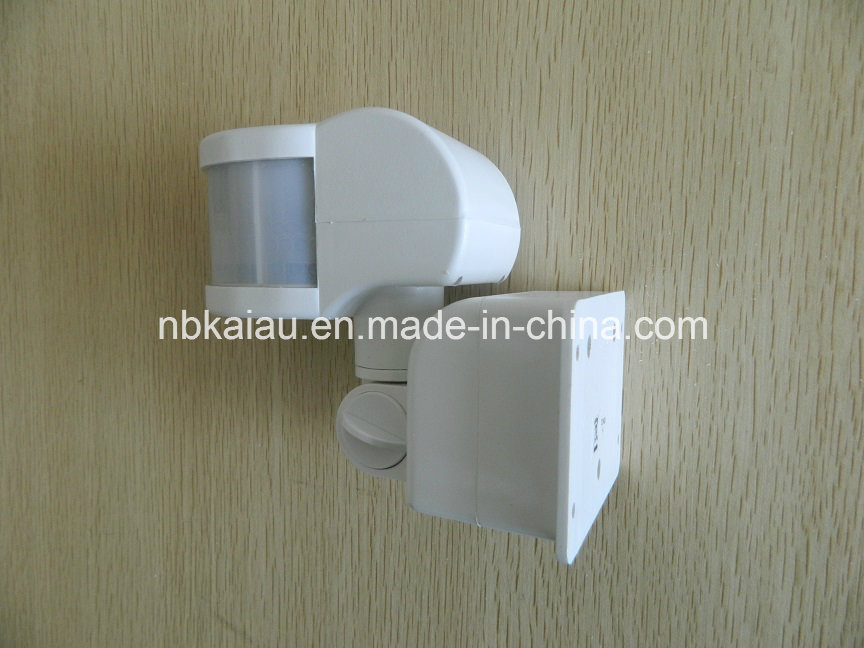

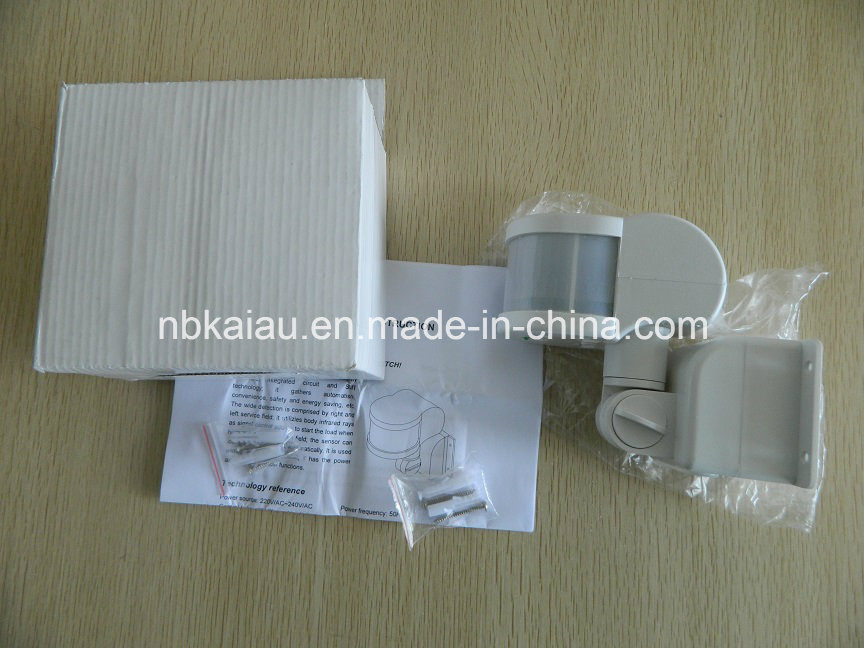

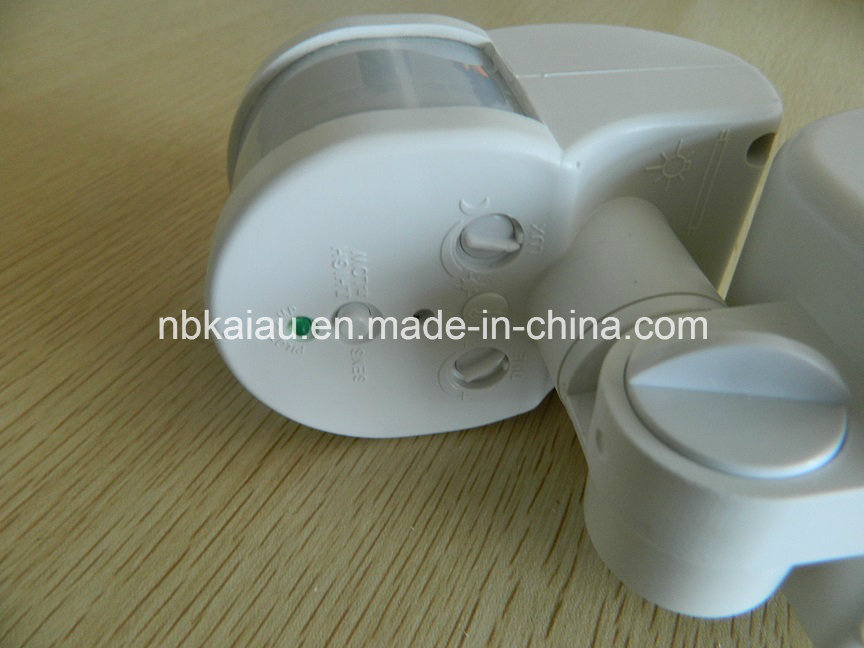

KA-S22A Actual photos:
