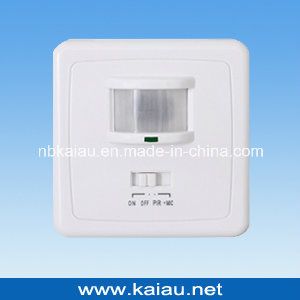

Wall Flush Mount PIR Sensor (KA-S16)

Name: Wall Flush Mount PIR Sensor (KA-S16)
Brand: all-electronics-online.com
SKU: 683263435
Availability: InStock
Rating: 4.7 (106 reviews)

Price:	US $ 2.5-4.3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-S16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery:	Within 25 Days
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Size:	86 Type
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.

Product Description

KA-S16 Wall Flush Mount PIR Sensor specifications:
1. Power source: 90V/AC~240V/AC
2. Power frequency: 50/60 Hz
3. Detection distance: 12m max (< 22º C)(adjustable)
4. Detection range: >140°
5. Light-control: 3LUX~1000lux (adjustable)
6. Time-delay: 5sec~7min+2min (adjustable)
7. Resistive load: 300W (110V/AC); 500W (220V/AC~240V/AC)
8. Installation height: 0.4m~1.8m
9. Power consumption: 0.45W (static 0.1W)
10. Detection motion speed: 0.6~1.5m/s
11. Sound control sensitivity: 30dB~90dB(adjustable)
11. Working humidity: < 93%RH
12. Working temperature: -10~+40º C

Product introduction:
KA-S16 is a new generation infrared sensor developed by our long-term market forecast and investigation. It has strong stability, it gathers multi-function, practical, good appearance, wide working voltage, convenient installation, detection indication, multi-working mode, etc. It adopts SMT technique. It is accorded with European standard, it is suitable for automatic control for home, hotel and enterprise.

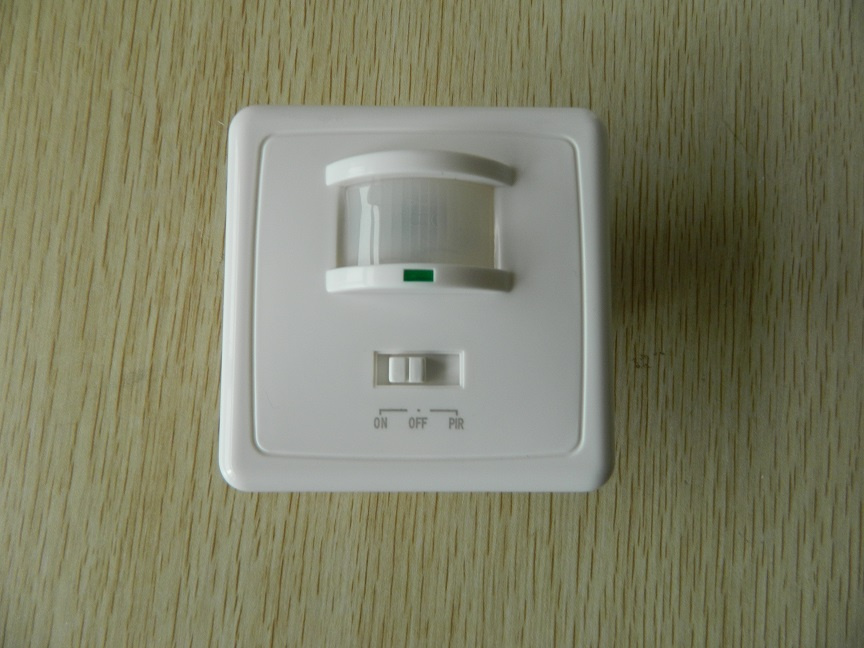

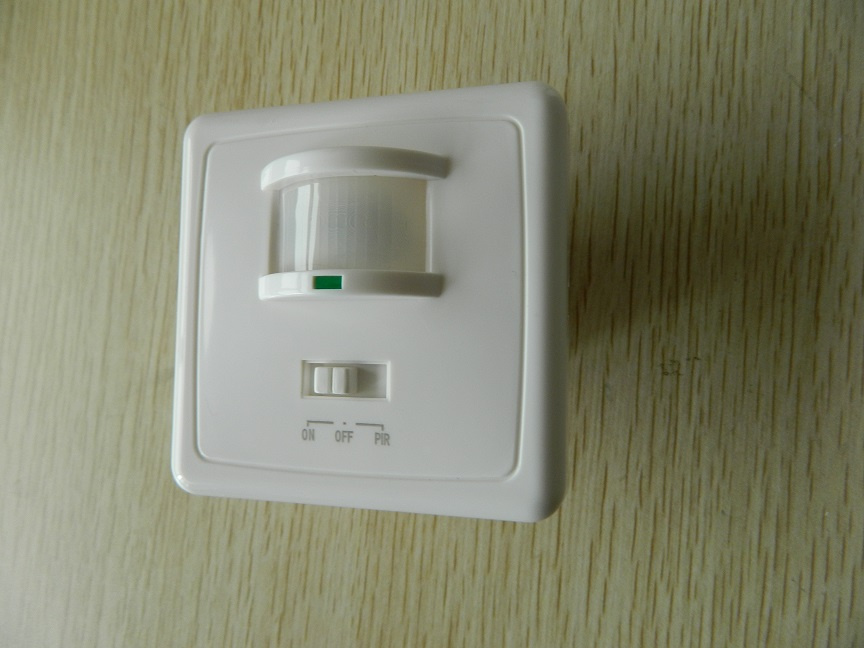

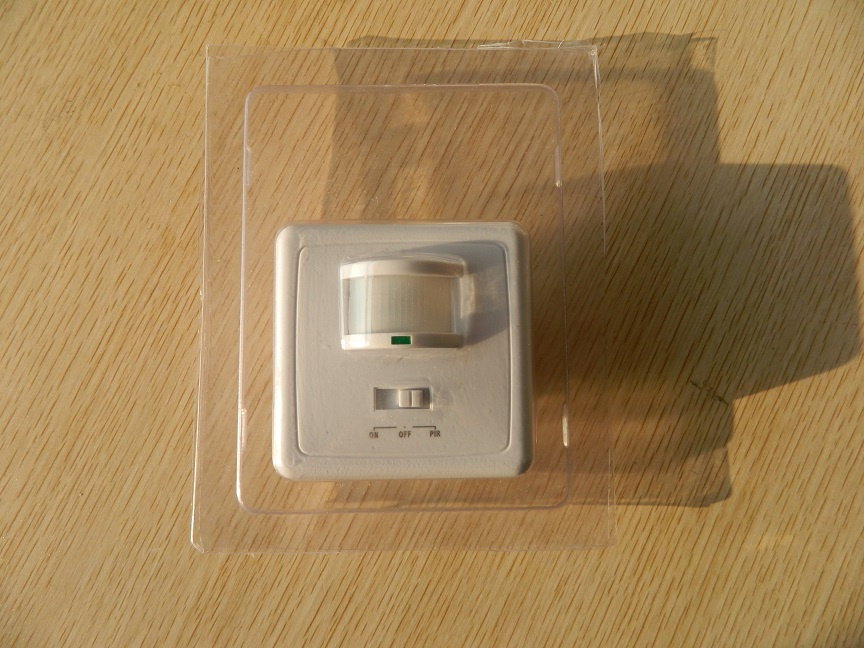

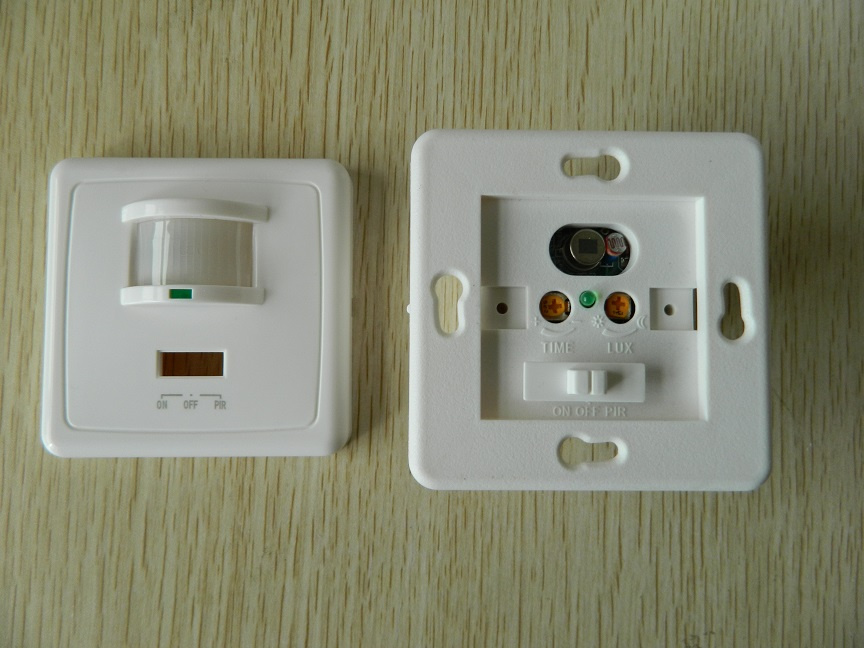

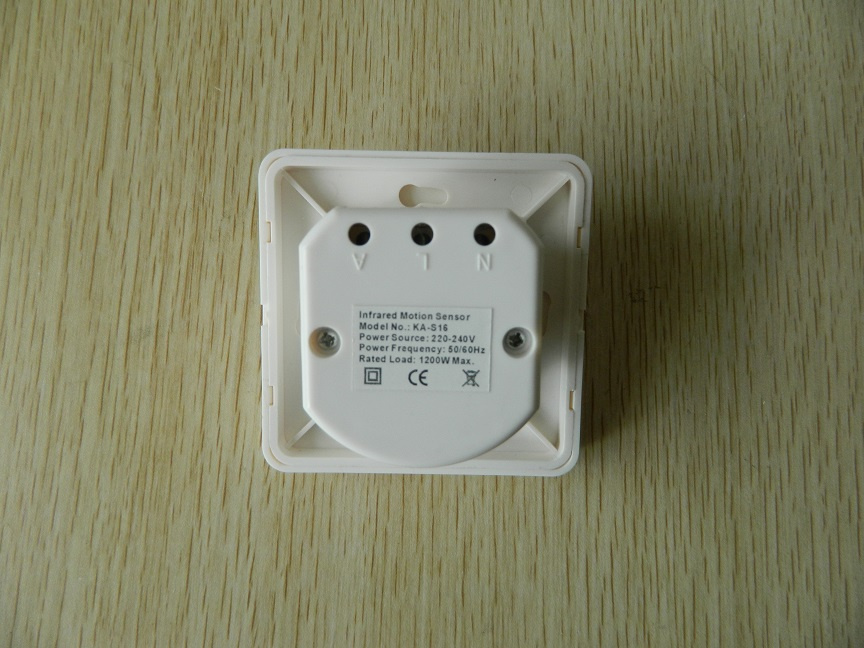

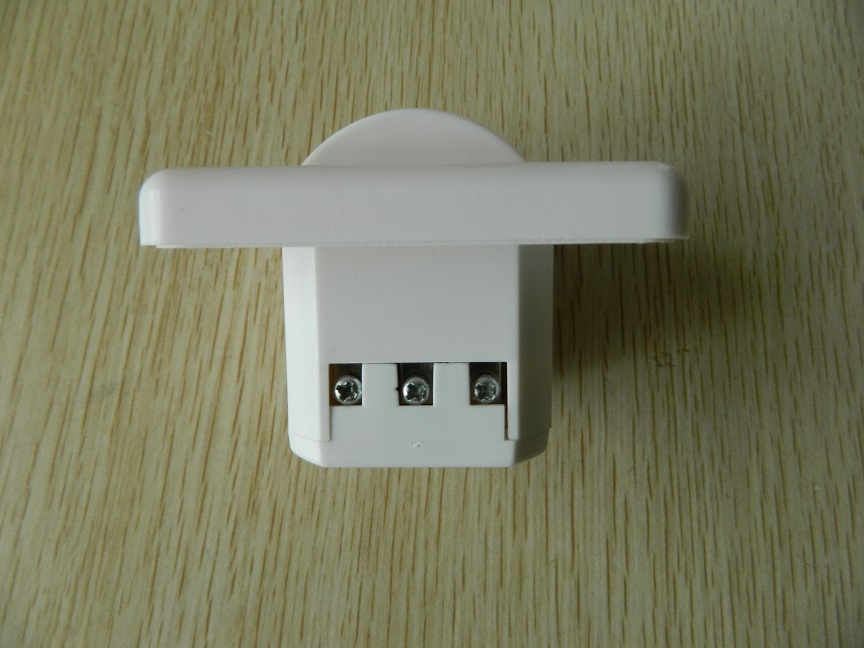

KA-S16 Actual photos:
