| Prod Model: |
KA-S61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Bulk Order Delivery Time: |
Within 25 Days |
| Samples Delivery Time: |
Within 2 Days |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description

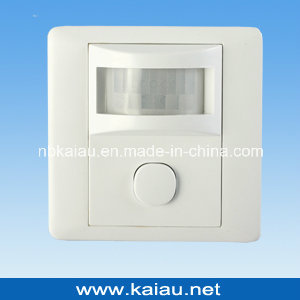

KA-S61 Wall Flush Mount PIR Sensor specifications:1) Power source: 100V/AC~130V/AC; 220V/AC~240V/AC
2) Power frequency: 50/60Hz
3) Ambientlight: <10LUX~2000LUX
4) Time-Delay: Min: 8sec± 3sec; Max: 7min± 2min
5) Detection range: 120°
6) Detection distance: 9m max (<24° C)
7) Rated Load: 400W(110V/AC~130V/AC) 600W(220V/AC~240V/AC)
8) Working temperature: -10~+40° C
9) Working humidity: <93%RH
10) Installation height: 1m~1.6m
11) Power consumption: 0.45W(static 0.1W)
KA-S61 Features:The product is a new energy-saving switch, it adopts integrated circuit and the good sensitivity detector (LX19B, C adopted SMT). It gathers automatism, convenience, safety, energy-saving and practicality function. The wide detection range is made up of the up and down, left and right service field. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters the detection field. It can identify day and night automatically. Its using range is wide. It has the functions of the power indication and the detection indication.
KA-S61 Functions:1) Detection field: The detection field is made up of up and down, left and right service field. (See the following diagram ). But the moving orientation has great relationship with the sensitivity.
2) Can identify day and night: The ambient light can be adjusted according to the consumer's desire, when it is adjusted on the "moon" "position (min), it can only work in the less than 10LUX ambient light; It can work in the daytime and at night when it is adjusted on the "sun" position (max); As for the adjustment pattern, please refer to the testing pattern;
3) Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic. (set time)
4) Time-delay is adjustable: It can be set according to the consumer's desire. The minimum time is 8sec± 3sec. The maximum is 7min± 2min.
5) The switch: It is the "auto" condition when you push it in. It is "OFF" condition when you push it out.

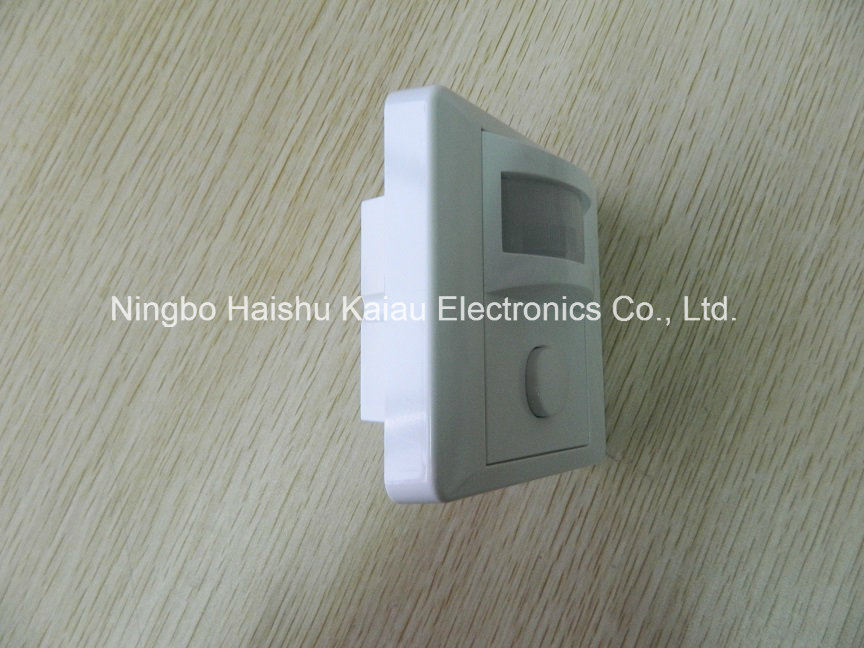

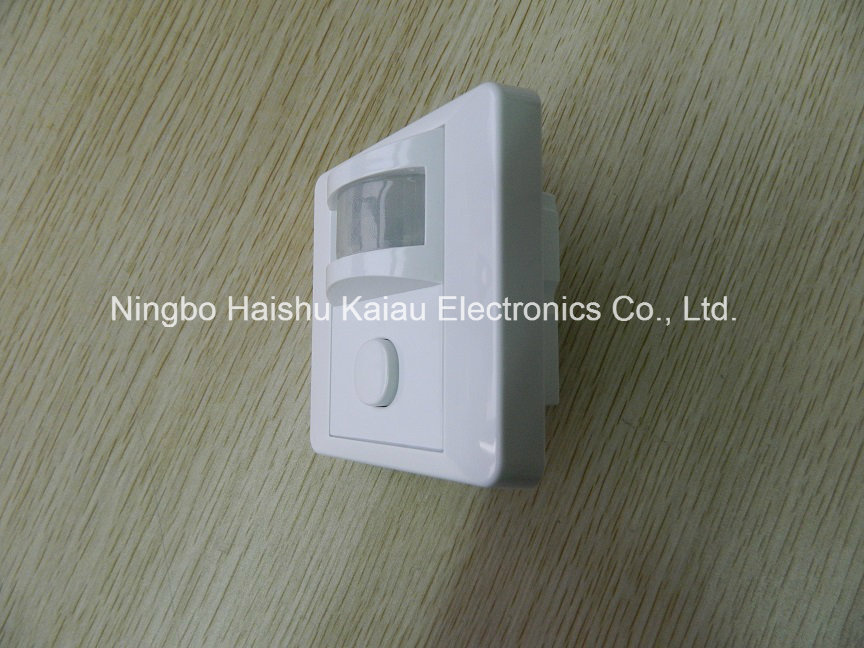

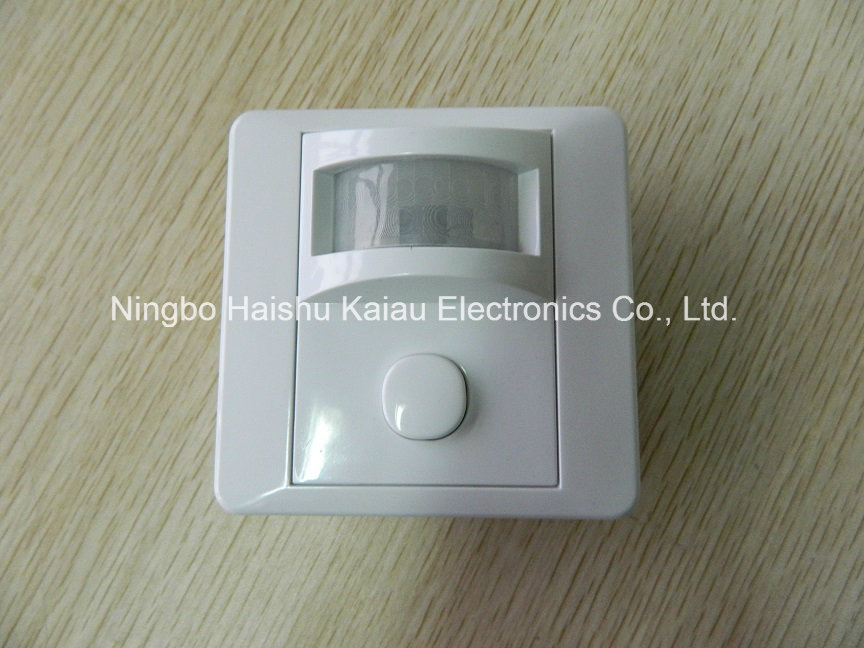

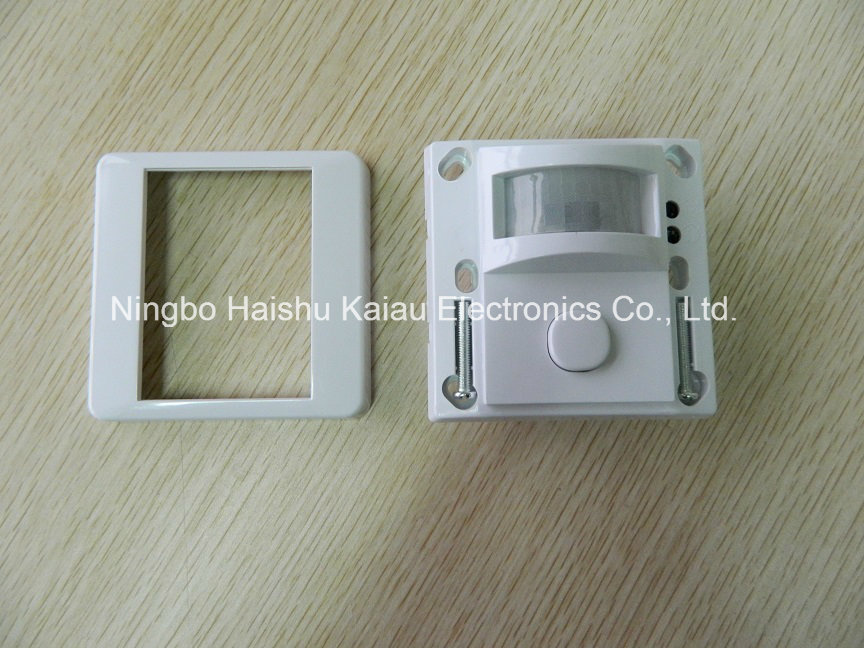

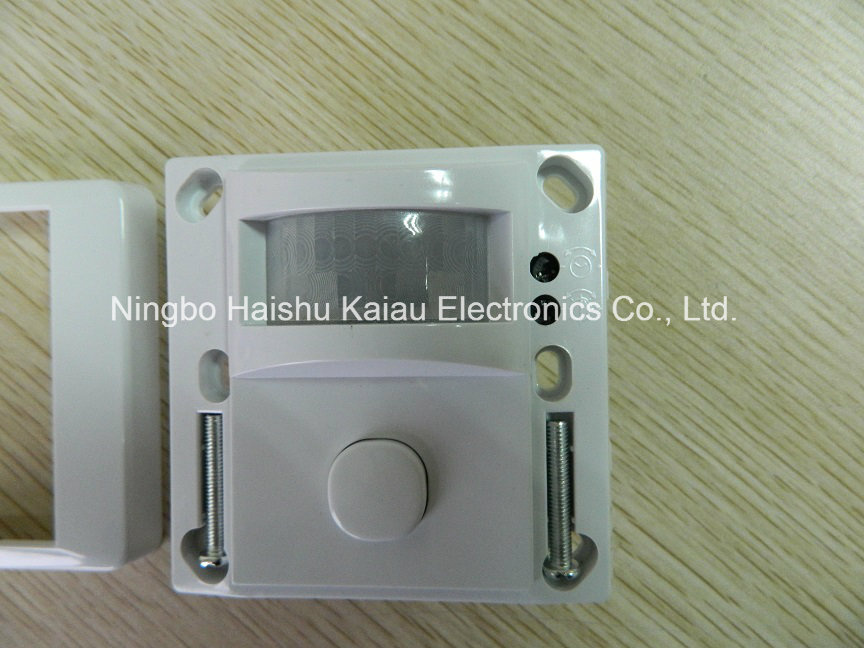

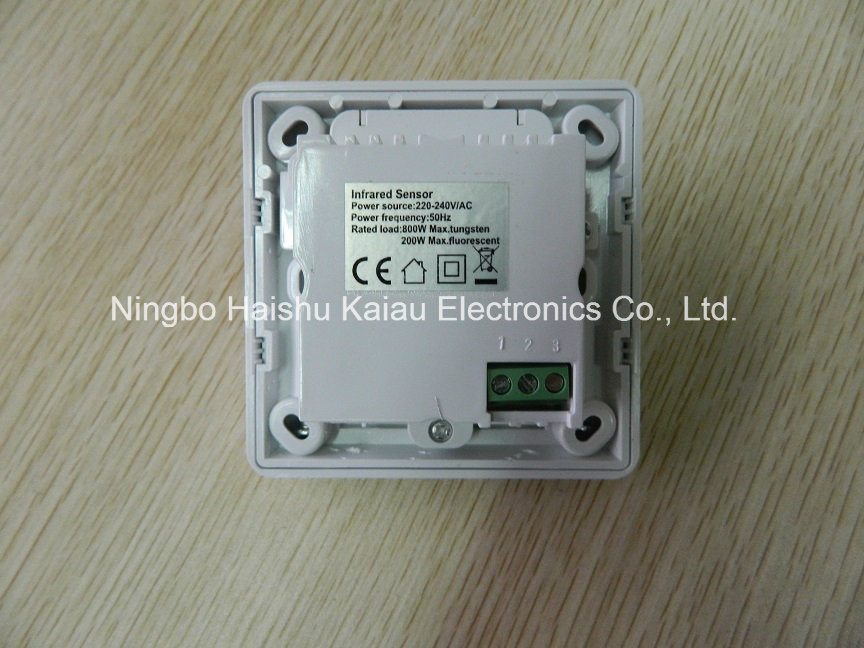

KA-S61 Actual photos:
