Wall Mount IP Network Broadcast Terminal

Prod Model:	CY-102A
Service:	OEM
Warranty:	3 Years
Item:	IP Network Public Address System
Usage:	School
Type:	Wired
Support Network:	Ethernet
Information Content:	Voice
Certification:	RoHS
Condition:	New

Product Description

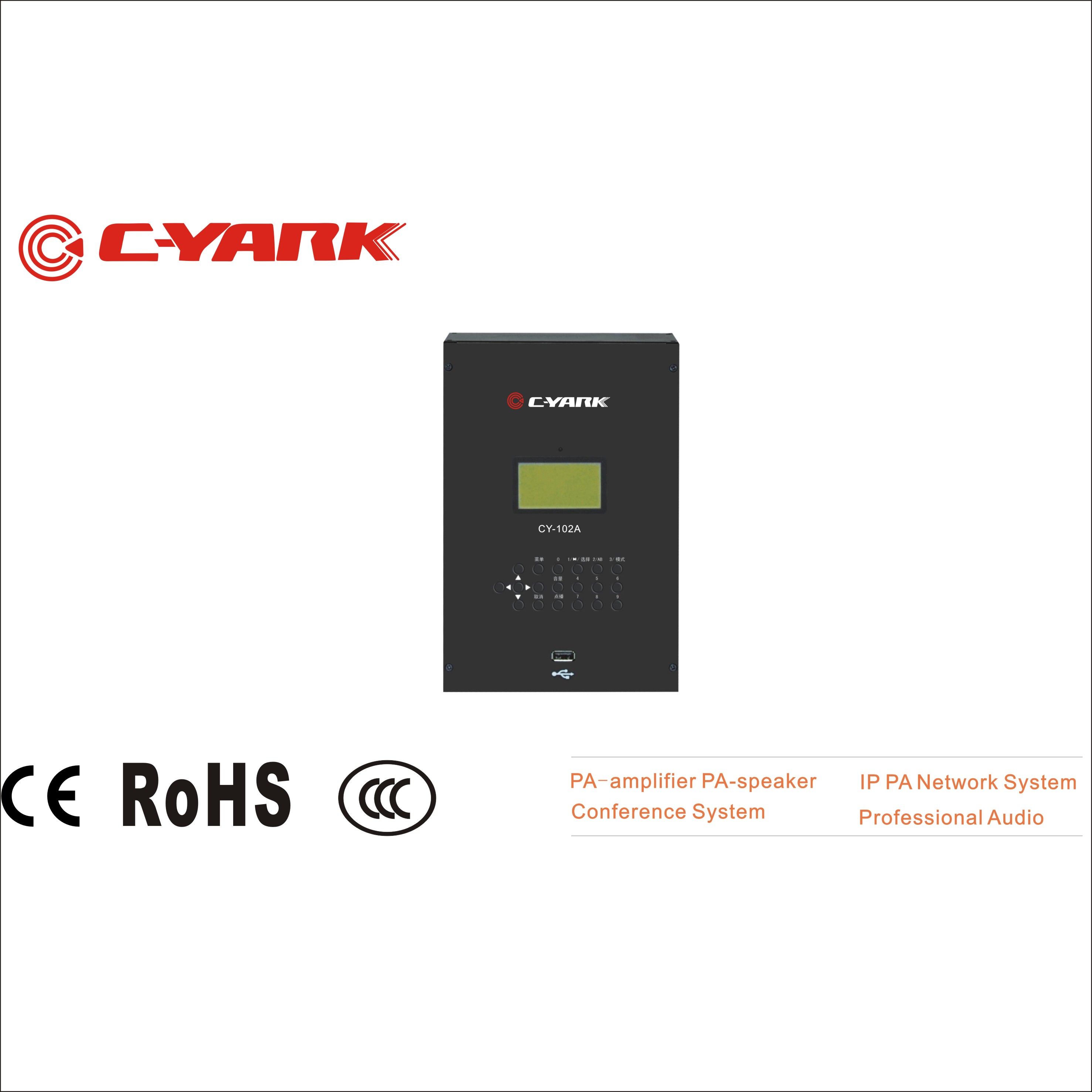

Wall mount IP network broadcast terminal

Usage:
1. Wall mount IP network audio encode and decode terminal with built in constant impedance power amplifier and LCD screen.
2. It can be set for pointed control when the situation needs external audio source, MIC, USB. In the same time, it can be sent with constant voltage analog backup, monitor, 24V cutting up, TF card and more modules. It's suitable for classroom, office and so on.

Features:
1. Adopting wall mount IP network audio encode and decode terminal design. It's light for wall mounted installation.
2. With 3 inches 12864 highlight screen. Two modes for operation: infrared control and button
3. Built-in 2x20W stereo power amplifier can connect speakers directly for broadcast. The small areas will not need additional power amplifier with this terminal.
4. Useful audio interface for expansion of local audio source. 1 stereo AUX input and 1 MIC input for local broadcast which can be adjust the volume. 1 AUX output for amplifier broadcast. The power is enlarged for the requirement of wide area broadcast.
5. The local has double 10/100M RJ45 network exchanging interfaces which can be input or output for series connecting with next terminal.
6. Audio decoder and encoder adopting DSP treating chip and integrated IP network hardware decode module to receive the music sent from server and also receive the broadcast paging.
7. It can be set on local for pointed control of audio source, microphone and USB. It can match with modules of constant voltage analog backup, monitor, 24V cut off, TF card for use of classroom, music room, office and more.
8. Wall mount IP network audio encode and decode terminal with built in stereo constant resistant power amplifier and integrated operation button.

Specification:
1. Network interface: Standard RJ45 input
2. Protocol: TCP/IP,UDP,IGMP
3. Audio format: MP3, MP2
4. Sampling rate: 8K-48KHz
5. Transfer rate:100Mbps
6. Audio mode: 16 stereo CD sound quality
7. Output frequency: 80Hz-16KHz
8. Harmonic distortion: ≤ 1%
9. S/N ratio: >70db
10. Connected speaker input impedance and rated power: 8Ω  2x15W standard wire terminal
11. AUX input: 350mv standard wire terminal
12. Input voltage: 1000mv,
13. Output impedance: 470Ω
14. MIC input sensitivity: 5mv
15. Temperature: 5ºC-40ºC
16. Humidity: 20%-80% relative humidity, non condensing
17. Power dissipation: ≤40W
18. Input power: AC220V/50Hz


FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 24 months. We will give 1% easy-worn accessories to you before shipment.

4. What's your payment terms?
We accept Western Union and Bank Transfer. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Our main customers are from Southeast Asia, South America, North America, Western Europe, Africa and other countries.

6. How many days do you need to prepare the goods?
We need about 30 working days for large order.


Company Introduction:

1.Our Products & Certifications:
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Covering power amplifier series , ceiling speaker, indoor and outdoor speaker series,MP3 public broadcasting system, conference system and IP
PA system. All of Our products have received CCC, CE and ISO9001 approvals

2. Our Mission:
C-yark owns best equipment, normative management, professional design and technology.  With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market;
So, OEM or ODM order is welcomed.

3. Our Goals and Project Cases:
With 10-year effort, C-yark has achieved great successful in domestic and foreign market.  Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects , such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade.


We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
