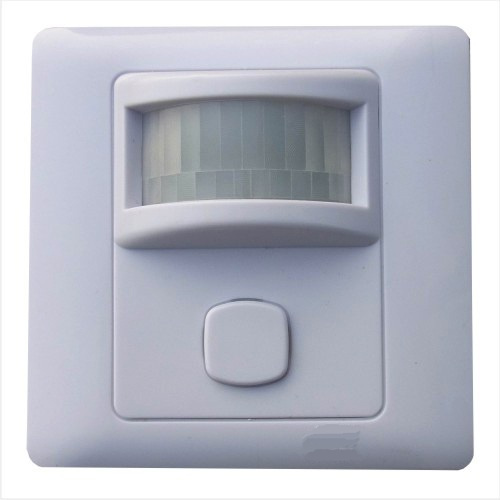

Wall Mount PIR LED Indoor IR Motion Sensor Automatic Light Switch

Name: Wall Mount PIR LED Indoor IR Motion Sensor Automatic Light Switch
Brand: all-electronics-online.com
SKU: 827140765
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	32fd
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor
Size:	86 Type
Certification:	CE

Product Description

Fuction discription	transwitch,any lights
Operating voltage	85V~265VAC (50~60Hz)
Perating temp.	-20 °C ~ +50 °C
Static power	< 0.016W
Load power	5W~200W
Load capacity	incandescent lamp,energy saving lamp,fluorescent lamp,exhaust fan
Connecting style	unipolarity
Output mode	infrared induction
Light control range	5 Lux ~ 500Lux ± 20% (adjustable)
Delay shutdown time	16~350 Secs ± 30% (adjustable)
Induction mode	passive
Induction angle	140°coning angle,all-direction
Detecting distance	8~10 M
Installing method	standard 86 modle,,wall installation,ceiling installation
Dimension/color	86 * 86 mm / porcelaine

Range of application&Functions and Features

1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance
