| Prod Model: |
CY-IP1220 |
| Service: |
OEM |
| Warranty: |
3 Years |
| Item: |
IP Network Public Address System |
| Usage: |
School |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Voice |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

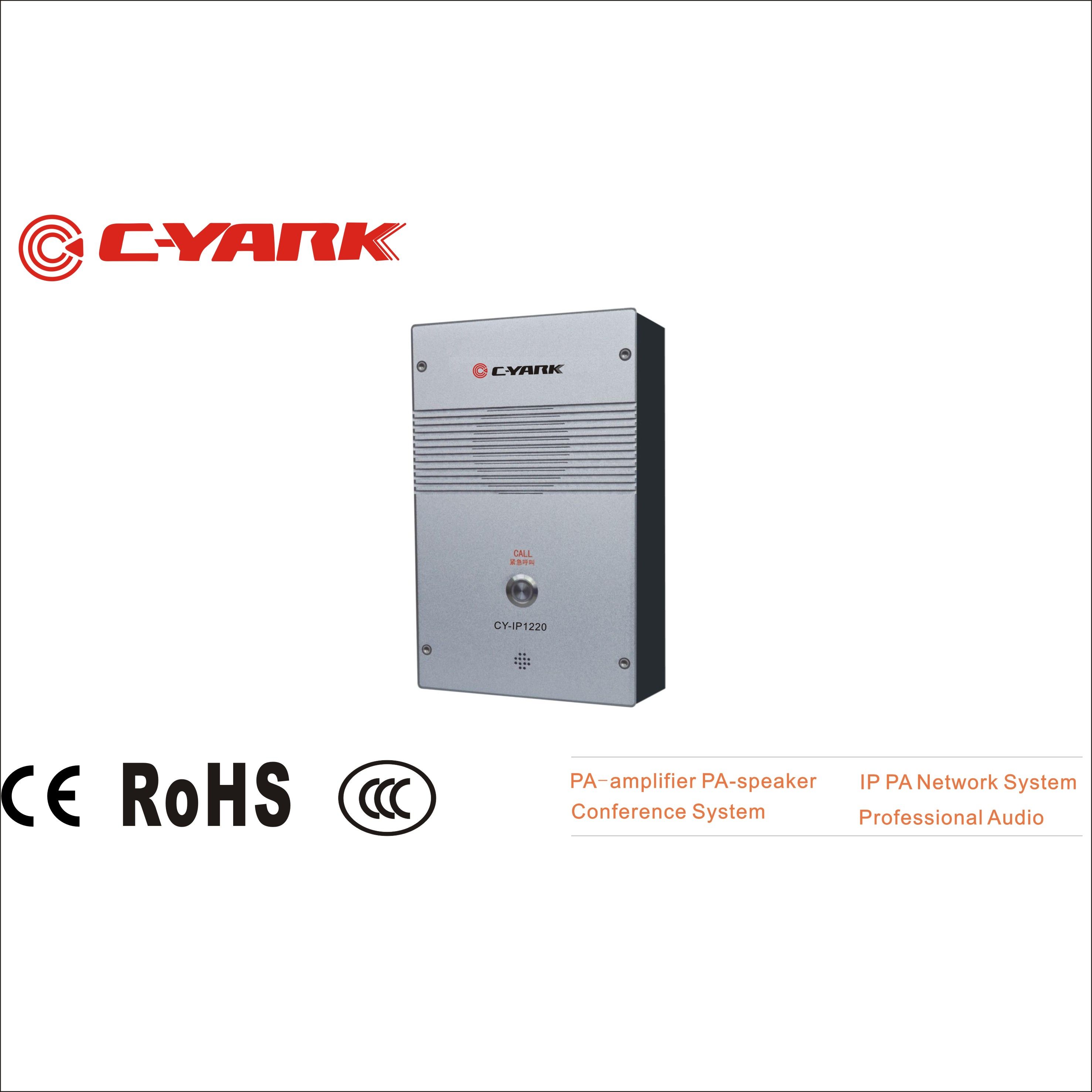

Wall mount single bond IP network intercom terminal
Usage:
1. Wall mount IP network single bond seeking help terminal for bi-directional intercom. It's easy to operate.
2. Installing indoor for anti-explosion. It's suitable for bank, prison, duty room and more.
Description:
1. Superior oxidation aluminium brushed panel is sturdy and durable.
2. Inserting computer technique and SDP audio treating technique design. High speed industrial core with fast starting time less than 1 second.
3. One key to for intercom with terminal.
4. Built in high sensitivity microphone with broad gathering area, long distance, high reduction. Built in speaker for hand free call and broadcast.
5. One short circuit output for access control or alarm indicator.
6. With 1 AUX output interface for connecting speaker and earphone for talking back and broadcasting.
7. 1 AUX input for connecting external audio equipment.
8. 1 of RJ45 network port, 1 of 12V DC interface.
9. Protection level: IP54. With anti stick device and dedicated screw to prevent it from damaging.
10. It can be connected as long as there's Ethernet. It support overlay IP and cross-layer routing.
Specification:
1. Wall mount IP network one button for help intercom terminal
2. Network port: 1 standard RJ45 network port
3. Panel keyboard: 1 piece
4. Transmission rate: 10/100Mbps
5. Audio format: MP2/MP3
6. Supported protocol: TCP/IP, UPP, IGMP
7. Sampling rate: 8K-48KHz
8. Audio mode: 16 stereo CD sound quality
9. S/N ratio: >75db
10. Harmonic distortion ≤ 0.3%
11. Frequency response: 20Hz-17KHz
12. Short circuit output: 1 group
13. Line input electronic level: 1 group with 350mV
14. Line output electronic level: 1 group with 775mV
15. Built in loudspeaker's power rate and impedance: 1W, 8Ω
16. Working temperature: 5ºC~+45ºC
17. Environment humidity: 10%~90%
18. Protection level: IP54
19. Size: 124x202x40mm
20. Input power: DC12V
21. Power dissipation: ≤8W
FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 24 months. We will give 1% easy-worn accessories to you before shipment.
4. What's your payment terms?
We accept Western Union and Bank Transfer. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Our main customers are from Southeast Asia, South America, North America, Western Europe, Africa and other countries.
6. How many days do you need to prepare the goods?
We need about 30 working days for large order.
