| Prod Model: |
SSP3111C 1000-2000VA |
| Model: |
off-Grid Solar Power Inverter |
| Capacity: |
1000va/720W |
| Input Voltage: |
170-280VAC;90-280VAC |
| Output Voltage: |
230VAC |
| Frequency: |
50/60Hz |
| DC Voltage: |
12VDC |
| Solar Controller: |
40A PWM |
| Charging Current: |
15A/20A |
| Maximum Efficiency: |
>96% |
| Application: |
Home Appliance |
Product Description

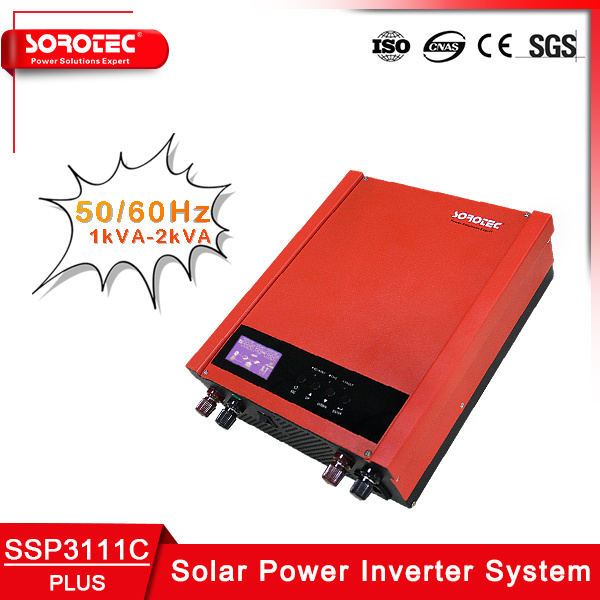

Wall Mounted Integrated DC to AC Solar Power InverterProduct Introduction:SSP3111C series is an off-grid type modified sine wave output solar power inverter suit for for home and office appliances such as personal computer,fan,TV,DVD,solar power.etc. its capacity from 1kva to 2kva.Built-in 40A PWM solar charge controller,with AC/PV output priority function,LCD display the loads,battery,ac and PV detailes clearly.the system can audible and visual alarm while the fault occurs.full protect fuction for overload ,overcharge ,short circuit and so on.
Key Features:1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Auto change AC-DC.
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Full Protection:Protection for low battery voltage,overload,output short circuit and overtemperature restrain surge interference,eliminate noise,protection for thunderstriking,provide the reliable power to the home appliances. Application:Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc

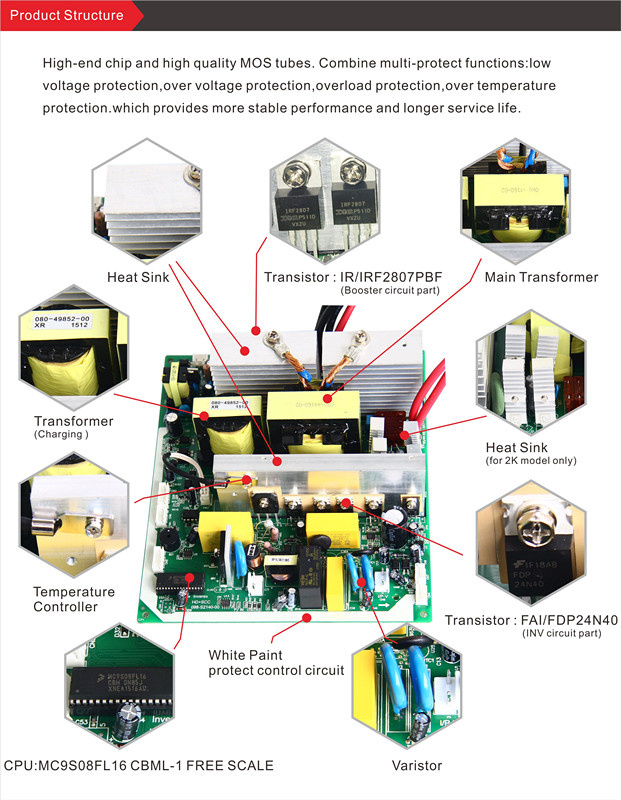

Product Structure| Model | SSP3111C Plus 1000-2000VA |
| 1000-12 | 2000-24 |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC |
| Nominal Frequency | 50/60Hz |
| Input |
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) |
| Frequency Range | 50/60Hz |
| Output |
| Voltage Regulation | 230VAC±10% |
| Frequency Regulation | 50/60Hz±0.1Hz |
| Wave Form | Modified Sine wave |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) |
| Battery mode to Utility | 10ms max |
| Battery mode efficiency | >80% |
| Line mode efficiency | >95% (battery full charged) |
| Battery |
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |
| LCD Display & LED Indicate |
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds |
| Line mode 2,charge current <=3A Green solid lighting |
| Off-charge mode Green flashing as cycle: |
| Battery Mode | Yellow lighting |
| Overload | Red flashing every 0.5 second |
| Fault | Red lighting |
| SOLAR CHARGE |
| Maximum PV Array Open Circuit Voltage | 55VDC |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A |
| Maximum Efficiency | >96% |
| Standby Power Consumption | <20W |
| Environment |
| Temperature | 0°C~40°C |
| Humidity | 5%-905% (<40°C, Non-condensing) |
| Storage Temperature | -15°C~55°C |
| Elevation | <1500m |
| IP Proyection level | IP20 |
| PHYSICAL |
| Dimension,D×W×H (mm) | 298.9×250×105 |
| Net Weight (kgs) | 2.62 | 2.76 |
