Wall Mounted Integrated Solar Power Inverter

Name: Wall Mounted Integrated Solar Power Inverter
Brand: all-electronics-online.com
SKU: 796707135
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 95/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-3117B2

Product Description

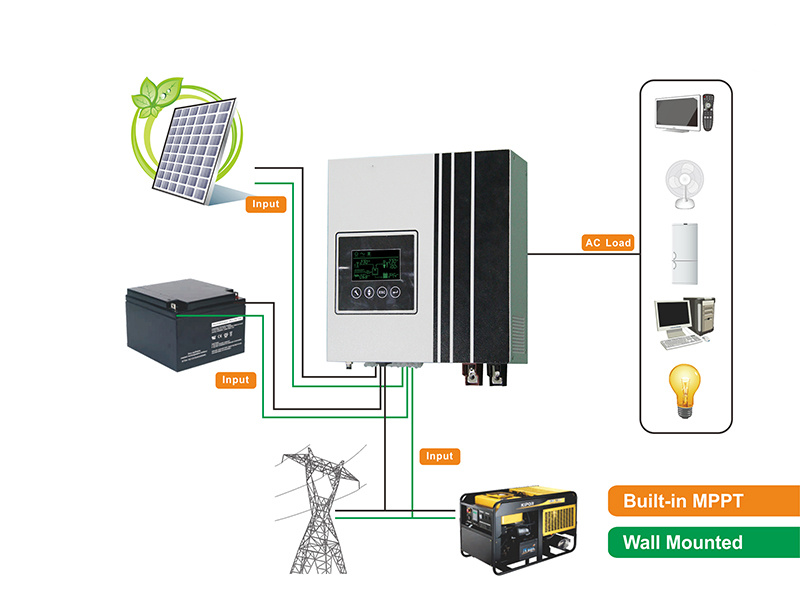

Wall Mounted Integrated Solar Power Inverter

Pure sine wave output
High frequency full bridge design .
Built-in MPPT solar charge controller
Selectable charging current based on applications
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Selectable input voltage range for household appliances and personal computers
Cold start function
Protection for low battery voltage,over load,output short circuit
and over- temperature,restrain surge interference,eliminate noise,
protection for thunder striking,provide the reliable power to the
household appliances.
Supply the reliable long back up time power for the household appliances
office appliances and solar power systems etc.

Model		SSP3117 1000VA-5000VA
Rated power		1000VA/800W	2000VA/1600W	3000VA/2400W	3000VA/2400W	4000VA/3200W	5000VA/4000W
Input	voltage	230VAC
	Voltage range	175VAC-280VAC(Normal) 125VAC-280VAC(Generator/Wide)
	Frequency range	50Hz / 60Hz (Auto sensing)
Output	AC voltage Regulation(Batt.mode)	230VAC±5%
	Surge power	2000VA	4000VA	6000VA	6000VA	8000VA	10000VA
	Effciency(Peak)	90% (@Inverter mode with normal DC Input; >60% R load); 95% (@Line mode with Rated R load, battery ful l charged)
	Transfer time	Normal range : 10ms (typical) 15ms (max) Generator/wide range: 20ms (typical) 40ms (max)
	Waveform	Pure sine wave
Battery&AC Charger	Battery Voltage	24VDC			48VDC
	Floating charge voltage	27.4VDC			54.8VDC
	Overcharge protection	30VDC			60VDC
	Maximum charge current	20A				25A
Solar charger	Maximum PV Array Open Circuit voltage	150VDC
	Maximum charge current	40A	40A/60A			60A
	Maximum Effciency	>96%
Physical	Dimension,D X W X H(mm)	350130340				380130465
	Net weight(kgs)	27.5X16X11.3		7.6	8	12.5	13.5
Environment	Humidity	5% to 95% Relative Humidity(Non-condensing)
	Operating Temperature	0ºC~55ºC
	Storage Temperature	-15ºC~60ºC

Our company supplies High frequency power inverter, Uninterrupter power supply, Solar inverter&controller, Industrial switch power supply, LED switch power supply, Power adapter ect. Which apply to solar power, wind power, electric power, lighting appliance ect. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
