| Prod Model: |
MOT200-CH4O) |
| N.W: |
1.4kg |
| G.W: |
1.7kg |
| Display: |
LCD Display |
| IP Rating: |
IP 65 |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| Power: |
24VDC |
| Modbus Digital Output: |
RS485 Output |
| Analog Signal Output: |
4-20mA Output(0-5V/0-10V Optional) |
| Alarm Type: |
Audible and Visual Alarm |
| Material: |
Die-Cast Aluminum |
| Type: |
Semiconductor |
Product Description

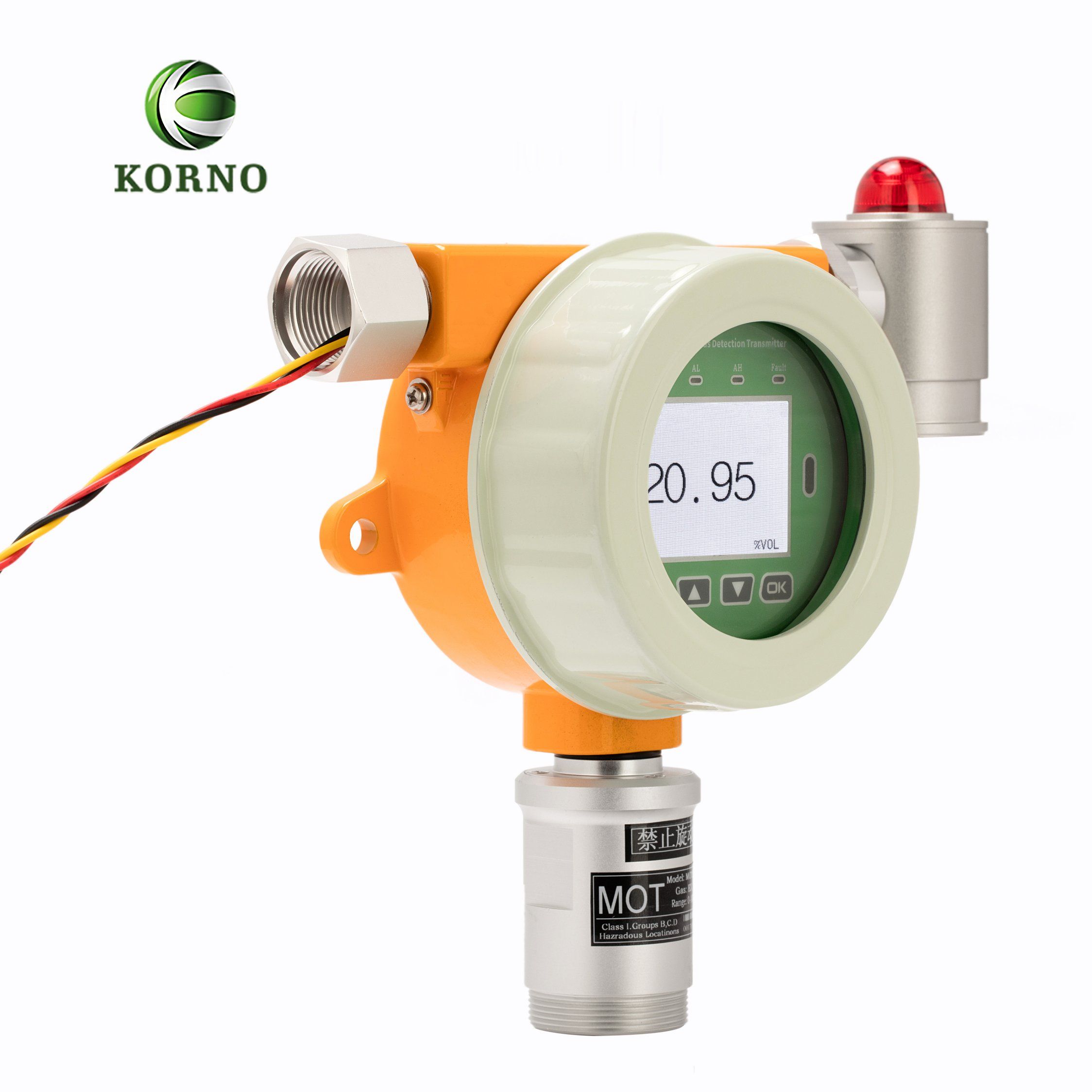

Wall Mounted Methanol Gas Leakage Detector with Alarm(CH4O)
MOT200-CH4O
>>> Description
The MOT200 can continuous detect the real-time gas concentration and display data with the 2.4inches LCD HD color screen,and it compatible with all kinds of controller ,PLC and DCS etc, allow user to remote monitoring and control. Monitoring data can be save and analyze by computer.
>>> Key Feature- 2.4 inches technical grade display with a pixel up to 320*240
- Three concentration units are available PPM,%VOL,mg/m3
- Variety signal output model :
4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
2 relays output: Concentration alarm value adjustable, there are high alarm and low alarm respectively
0-5V,0-10V output(optional) 4.Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
5.All software automatic calibration, sensor up to 6 level target calibration,ensure the accuracy and linearity
of the full scale
6.Chinese and English operation model are available,user friendly ,four buttons to operation
7.Following function are optional:Temperature,Humidity sensor,Audible and visual alarm

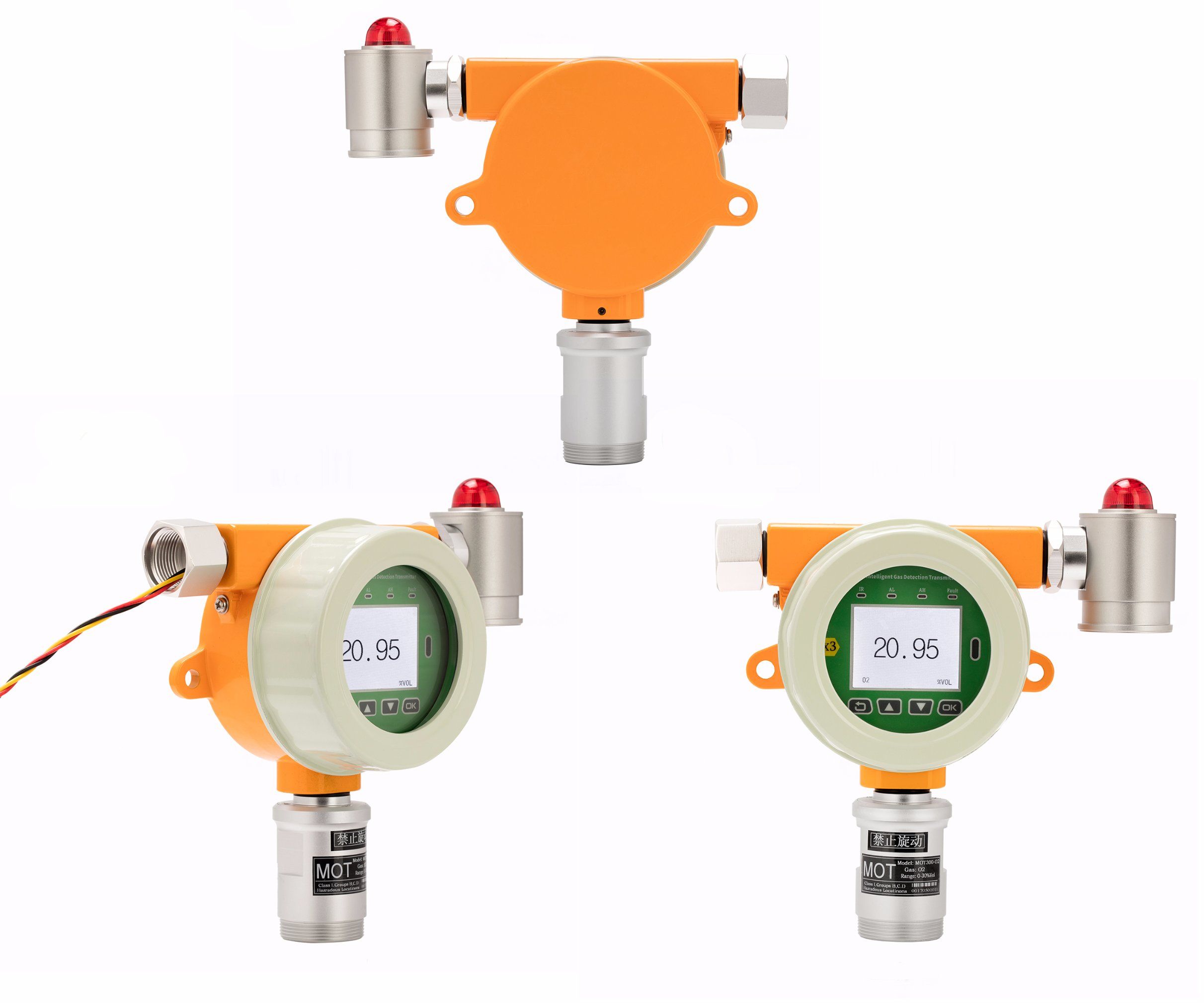

>>>Appearance
>>> Specifications | Product Type: | Online,Methanol(CH4O) |
| Sensor: | Semiconductor Gas Sensor |
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection |
| Detection Range: | 0-1%VOL |
| Resolution: | 0.01%VOL |
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±1%F.S |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A |
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 |
| Outputs: | Analog:4-20mA signal,0-5V,0-10V
Modbus: RS485 signal
Pulse signal or TCP/IP signal,optional |
| Alarm Setting: | Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm |
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems |
| IP Rating : | IP65 |
| Material: | Die-cast Aluminum
,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT |
Operating
Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing |
Operating
Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) |
| Standard Accessories: | -User manual
-Certification
-Calibration cover |
| Optional Accessories: | -hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module |

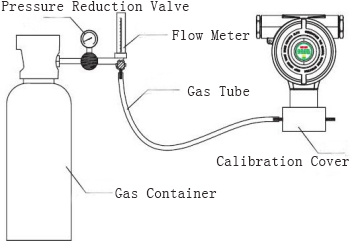

>>> Calibration:
NOTE:We guarantee all detector were precise calibrated with certain density standard gas.It's not neccessary for customer to re-calibrate the detector after purchase unless encounter special situation.
F&Q:Q1:Can I have a sample order?A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?A2:We have written instructions for incoming material&finished products inspections and testing. All the finished products will be 100% inspection and all the non-conforming units will be clearly
marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
