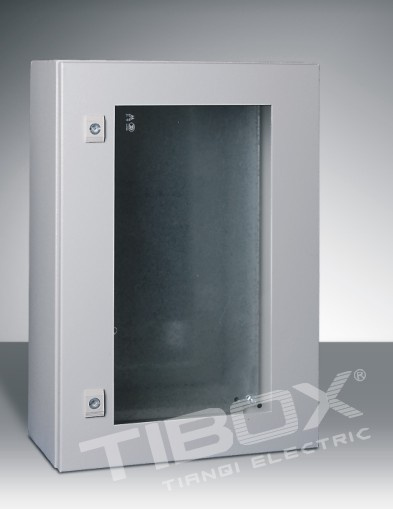

Wall Mounted Plexiglass Door Steel Enclosure

Name: Wall Mounted Plexiglass Door Steel Enclosure
Brand: all-electronics-online.com
SKU: 744807185
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 11.42-287.67/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Distribution Metering Box
Structure:	Protection
Application Range:	Electronic Equipment
Shell Protection Grade:	IP66
Brand:	Tibox

Product Description

Packaging & Delivery
Packaging Detail: Carton, wood pallets, 40HQ container or 20GP container
Delivery Detail: In 30days after confirmed the order(depend on your quantity...)
Specifications
1. Color: RAL7032 or RAL7035
2. Protection degree: IP55
3. Against mechanical impacts: IK10
4. Plexiglass door

Product Description
Supply include:
Enclosure and door with plexiglass&lock system, mounting plate, gland plate, sealing gasket and fixing accessories.

Standard Configuration:
Paint finish epoxy polyester powder coating textured finish.
Color: RAL7032 or RAL7035
Protection degree: IP66
Against mechanical impacts: IK10
Thickness: Enclosure & door: Sheet steel 1.2mm till size ST6 820 then 1.5mm, Mounting plate: Zinc-coated steel1.5mm till size ST6 820 then 2.0mm, plexiglass door 4.0mm

NO.	W H D(mm)	Model
1	200X300X150	STP2 315
2	300X400X150	STP3 415
3	300X400X200	STP3 420
4	400X300X150	STP4 315
5	400X400X200	STP4 420
6	400X500X200	STP4 520
7	400X600X200	STP4 620
8	500X500X200	STP5 520
9	500X700X250	STP5 725
10	600X400X200	STP6 420
11	600X600X200	STP6 620
12	600X600X300	STP6 630
13	600X800X250	STP6 825
14	600X800X300	STP6 830
15	600X1200X300	STP6 1230

Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.

T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.

We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.

All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.

Sticking to the policy as "no quality, no future!
