| Prod Model: |
PT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral 7032/Ral 7035/Customize |
| External Size: |
150X150X80mm~800X300X155mm |
| Surface Finish: |
Powder Coating |
| Whether The OEM: |
Yes |
| Lock: |
Metal Lock/Plastic Lock |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
ISO9001:2008 |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP66 |
| Brand: |
Porta |
Product Description

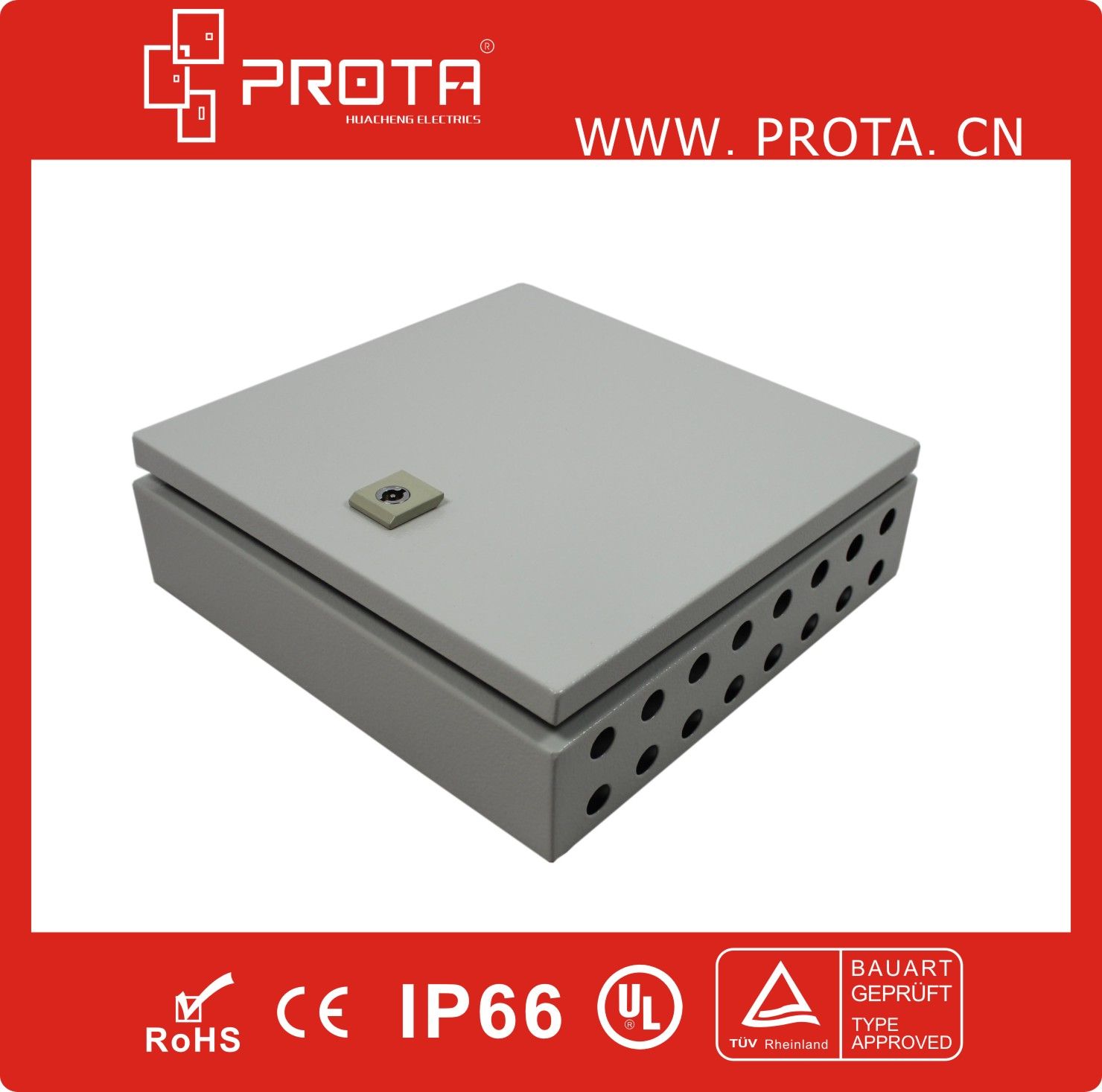

Wall Mounting Enclosure / Electrical Distribution Box
Standard Configuration
1. Standard configuration: Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
2. Material and thickness: Cold-rolled sheet steel
Door: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Body: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Mounting plate: 1.5mm (up to H=800mm) or 2.0mm (H≥ 800mm)
3. Surface: Thermosetting epoxy powder coating, textured finish
4. Color: RAL 7032 RAL 7035 or any other colors on your request
5. Protection degree: IP66
Craftsmanship Feature
1. There's one foam PU sealing gasket inside the door for the water and dust proof.
2. The door can be opened 130° By the plugging hinges
3. The slots design of the enclosure prevents dust and water from entering into the enclosures plus the good coordination with sealing ring, which supply a good protection of the enclosures.
4. There're 4 hanging holes in the back of the enclosures, which is very convenient for the installation by the wall mounting brackets, that's going to be Ordered separately.
5. The door can be switched by both left and right side.
Selection Table
Model |
Size(mm) |
Model | Size(mm) |
| PT2 215 | 200X200X150 | PT6 425 | 600X400X250 |
| PT3 215 | 300X200X150 | PT7 525 | 700X500X250 |
| PT3 315 | 300X300X150 | PT8 625 | 800X600X250 |
| PT4 315 | 400X300X150 | PT9 625 | 900X600X250 |
| PT5 415 | 500X400X150 | PT10 825 | 1000X800X250 |
| PT6 415 | 600X400X150 | PT10 1025 | 1000X1000X250 |
| PT6 515 | 600X500X150 | PT12 825 | 1200X800X250 |
| PT7 515 | 700X500X150 | PT12 1225 | 1200X1200X250 |
| PT8 615 | 800X600X150 | PT14 1025 | 1400X1000X250 |
| PT3 2520 | 300X250X200 | PT4 330 | 400X300X300 |
| PT3 320 | 300X300X200 | PT5 530 | 500X500X300 |
| PT4 420 | 400X400X200 | PT6 430 | 600X400X300 |
| PT5 520 | 500X500X200 | PT7 630 | 700X600X300 |
| PT6 620 | 600X600X200 | PT8 630 | 800X600X300 |
| PT7 620 | 700X600X200 | PT9 630 | 900X600X300 |
| PT8 620 | 800X600X200 | PT12 1030 | 1200X1000X300 |
| PT8 820 | 800X800X200 | PT4 440 | 400X400X400 |
| PT8 820 | 800X800X200 | PT5 540 | 500X500X400 |
| PT10 1020 | 1000X1000X200 | PT6 440 | 600X400X400 |
| PT12 1020 | 1200X1000X200 | PT6 540 | 600X500X400 |
| PT3 2525 | 300X250X250 | PT7 640 | 700X600X400 |
| PT4 325 | 400X300X250 | PT8 640 | 800X600X400 |
| PT5 325 | 500X300X250 | PT10 840 | 1000X800X400 |
| PT5 425 | 500X400X250 | PT10 1040 | 1000X1000X400 |
Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.
Packing and Shipping
-- Standard export paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
