| Prod Model: |
HA60005 |
| Usage: |
Display |
| Output Type: |
AC or DC |
| Connection: |
Plug In |
| Type: |
OEM/ODM |
| Power Source: |
Flyback Output |
Product Description
Real Factory, All products sufficient power, sufficient current
10 years of experience in power supply development
Professional AC/DC charger power supply manufacturer with top equipments.
Four Times Quality Check before shipment.
Strictly control of whole process from PCB making to final assembly.
This casing has more power and the following Seven models:
used for All-in-One PC, Laptops,Electronic Refrigerator, Portable DVD, Stereo, POS system, Tax Printer, Network Equipment, Telecom equipment etc.
1. Mini 65W single Voltage output
2. Mini 65W Automatic Multiple Voltage output
3. Mini 65W single Voltage with removable nipple module USB&Type-C ports
4. Mini 65W single Voltage with removable nipple module QC3.0 ports
5. Mini 65W Automatic Multiple Voltage with USB&Type-C ports
6. Mini 65W Automatic Multiple Voltage with QC3.0 ports
7. Mini 65W PD USB C port (Compatibility:QC3.0/FCP)
Specs 1
mini 65W single Voltage output
Input:110-240V AC 50/60Hz
Output: 19V3.42A or according to your requirement
Max:65W
AC Plugs:EU,US
DC :5.5x2.1x12MM,L1.2M or as your requirement
DC plugs:8 tips optional
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 2

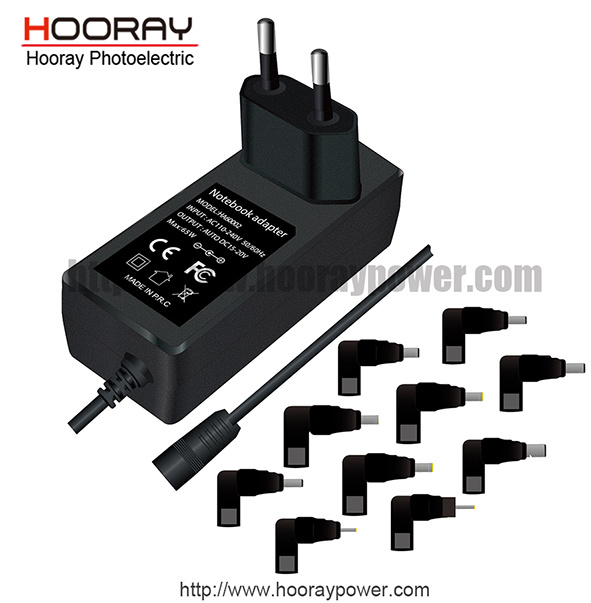

Mini 65W Automatic Multiple Voltage output
Input:110-240V AC 50/60Hz
Output: 12V/15V/16V/18.5V/19V/19.5V/20V, 5A MAX
Max:65W
AC Plugs:EU,US
DC :3 tips,L1.2M or as your requirement
DC plugs:10 Auto tips
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 3

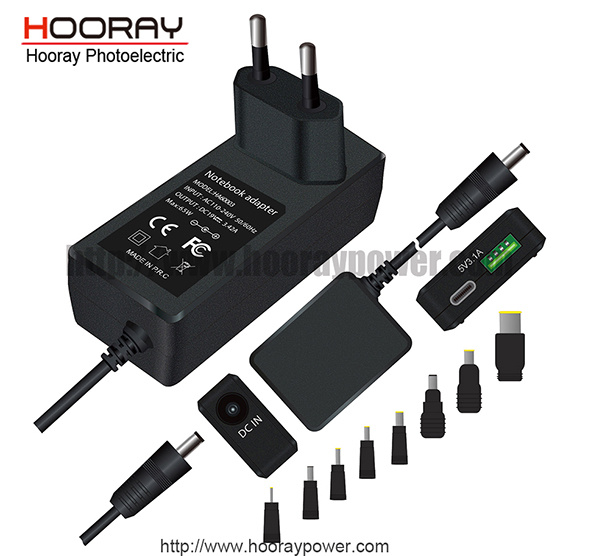

Mini 65W single Voltage with removable nipple module USB&Type-C ports
Input:110-240V AC 50/60Hz
Output: 19V3.42A or according to your requirement
Max:65W
AC Plugs:EU,US
DC : removable nipple module, it Can be independently, with USB&Type-C ports
DC plugs:8 tips optional
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 4
Mini 65W single Voltage with removable nipple module QC3.0 ports
Input:110-240V AC 50/60Hz
Output: 19V3.42A or according to your requirement
Max:65W
AC Plugs:EU,US
DC : removable nipple module, it Can be independently, with QC3.0 port(Compatibility:FCP)
DC plugs:8 tips optional
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protectionOther Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 5

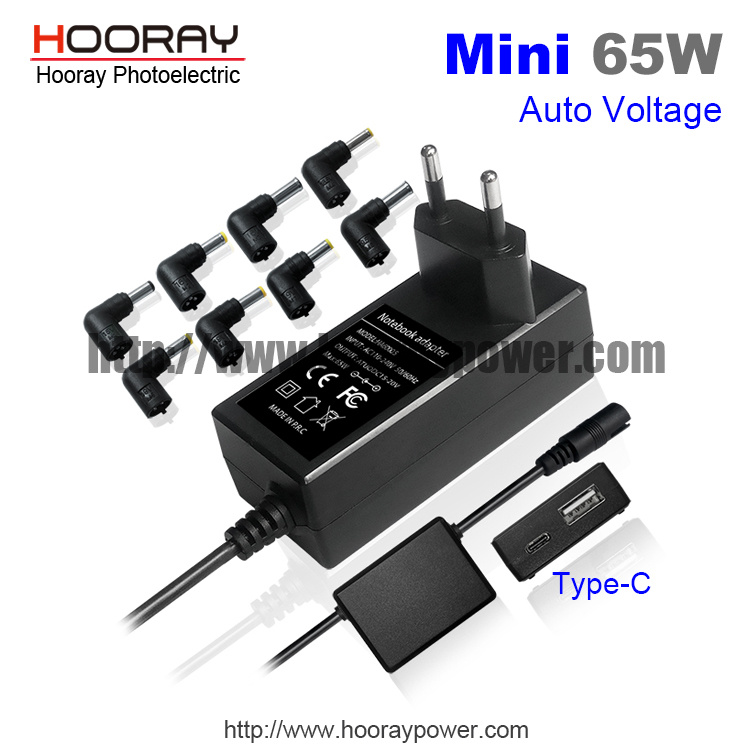

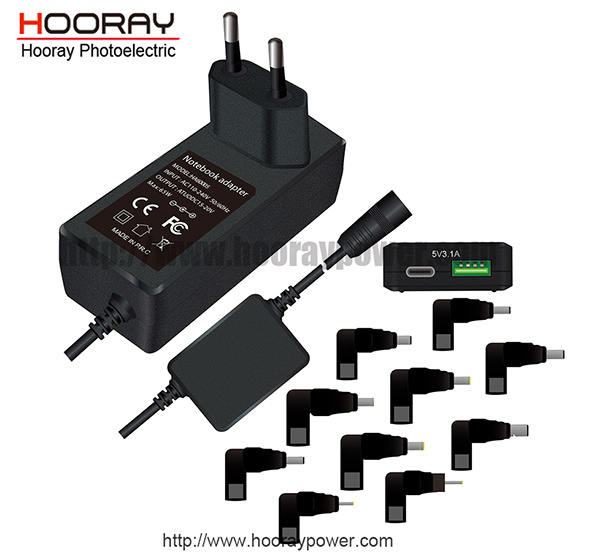

Mini 65W Automatic Multiple Voltage with USB&Type-C ports
Input:110-240V AC 50/60Hz
Output: 12V/15V/16V/18.5V/19V/19.5V/20V, 5A MAX
Max:65W
AC Plugs:EU,US
DC :3 tips,L1.2M, with USB&Type-C ports
DC plugs:10 Auto tips
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 6
Mini 65W Automatic Multiple Voltage with QC3.0 ports
Input:110-240V AC 50/60Hz
Output: 12V/15V/16V/18.5V/19V/19.5V/20V, 5A MAX
Max:65W
AC Plugs:EU,US
DC :3 tips,L1.2M, with QC3.0 port(Compatibility:FCP)
DC plugs:10 Auto tips
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Specs 7
Mini 65W PD USB C port (Compatibility:QC3.0/FCP)
Input:110-240V AC 50/60Hz
Output: Type-C PD (5V/9V/12V/15V/18V/20V), 5A MAX
Max:65W
AC Plugs:EU,US
DC :USB C 3.0 port(Compatibility:QC3.0/FCP)
Size:85x38x30MM
Package:Blister/color box, or as your requirement
Work efficiency: >85%
Protection: overload protection,over current protection and short circuit protection. over voltage protection
Other Advantage: Built-in Smart Charger Manager (SCM) computer for precise power output,
Continues power supply control
Quality: High quality, low defective rate, brand new, 100% compatible with original laptops
Warranty: 24 months
Approval: CE, RoHS, FCC
Note: indoor use only.
Applications:
This power adapter is used for All-in-One PC, Medical Devices, LCD TV, Laptops, Electronic Refrigerator, Portable DVD, Stereo, Security and Protection Products, POS system, Tax Printer, Network Equipment, Telecom equipment etc.Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)

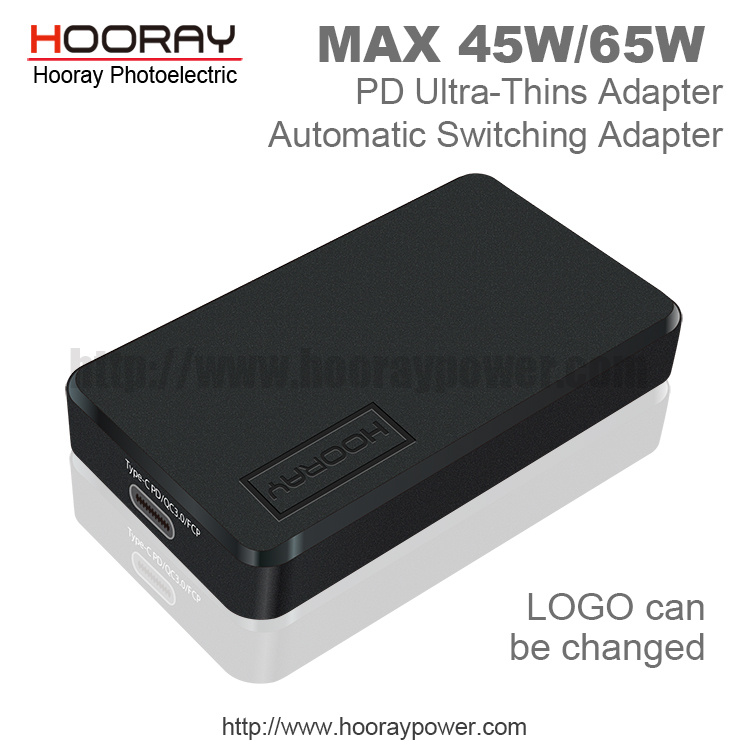

We have more models of PD type c charger for chooseBoth Compatibility:QC3.0/HUAWEI FCP| Ultra slim 45W PD TYPE-C charger | Output:5V- 9V 5A/12V 3.75A/15V 3A/16V 2.8A/18V 2.5A/20V 2.25A |
| Ultra slim 65W PD TYPE-C charger | Output:5V- 12V 5A/15V 4.33A/16V 4A/18V 3.6A/20V 3.25A |
| Mini 65W PD TYPE-C charger | Output:5V- 12V 5A/15V 4.33A/16V 4A/18V 3.6A/20V 3.25A |

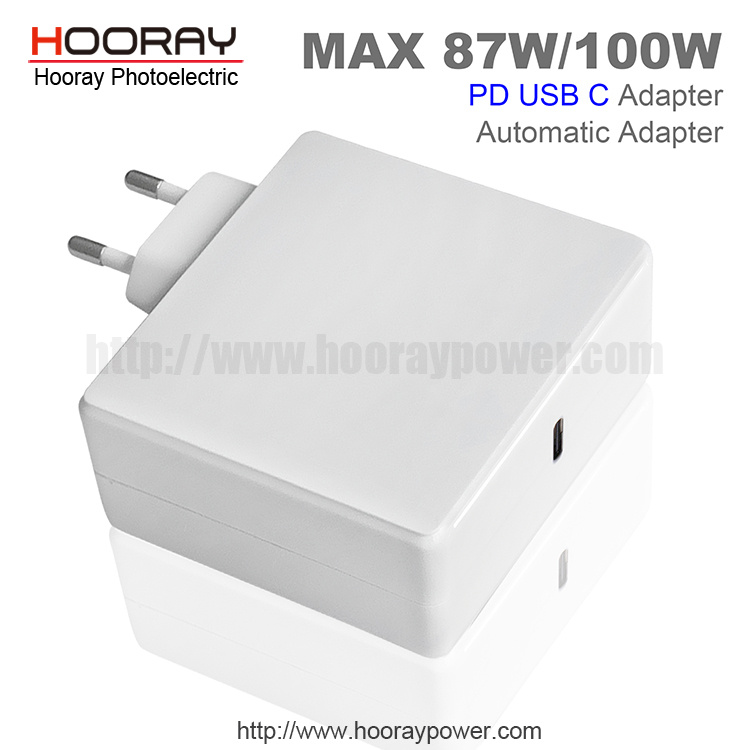

| 87W PD TYPE C charger | Output:5V-16V 5A/18V 4.83A/20V 4.35A |
| 100W PD TYPE C charger | Output:5V-20V 5A |
We have more models of multiple adjustable voltage adapter for choose
| 18W 3-12V Touch Adjustable Power Adapter with LCD Display(Wall plug) | Output Voltage: 3V/5V/6V/7.5V/9V/12V
Output Current:3V-7.5V,2.4A | 9V,2A | 12V,1.5A |
| 30W 3-12V Adjustable Switching Power Adapter 30W with USB port(Wall plug) | Output Voltage: 3V/4.5V/5V/6V/7.5V/9V/12V
Output Current 1: 3V-7.5V,2.4A | 9V,2A | 12V,1.5A
Output Current 2: 5V 2.1A USB outpt |
36W 3-12V Touch Switching Adjustable
Power Adapter with LCD Display(Wall plug) | Output Voltage: 3V/5V/6V/7.5V/9V/12V
Output Current: 3V-9V,4A | 12V,3A |
Ultra-thin 45W 9-20V Touch Switching Adjustable Power Adapter
with LCD Display (desktop) | Output Voltage: 9V/12V/15V/18V/19V/20V
Output Current: 9V,5A | 12V,3.75A |15V,3A |18V,2.5A | 19V, 2.37A |20V,2.25A |
Ultra-thin 65W 12-20V Touch Switching
Adjustable Power Adapter
with LCD Display(desktop) | Output Voltage: 12V/15V/16V/18V/19V/20V
Output Current: 12V,5A | 15V,4.33A |16V,4A |18V,3.6A | 19V, 3.42A |20V,3.25A |
| Mini 65W 12-20V Automatically Voltage Adapter (Wall plug) | Output Voltage: 12V/15V/16V/18.5V/19V/19.5V/20V
Output Current: 12V,5A | 15V,4.33A |16V,4A |18.5V,3.51A | 19V, 3.42A |19.5V,3.33A | 20V,3.25A |
| Mini 65W 12-20V Automatically Voltage Adapter with USB&Typte-C ports (Wall plug) | Output Voltage: 12V/15V/16V/18.5V/19V/19.5V/20V
Current: 12V,5A | 15V,4.33A |16V,4A |18.5V,3.51A | 19V, 3.42A |19.5V,3.33A | 20V,3.25A
USB&Typte-C output: 5V3.1A |
| Mini 65W 12-20V Automatically Voltage Adapter with QC3.0 output (Wall plug) | Output Voltage: 12V/15V/16V/18.5V/19V/19.5V/20V
Current: 12V,5A | 15V,4.33A |16V,4A |18.5V,3.51A | 19V, 3.42A |19.5V,3.33A | 20V,3.25A
QC3.0 output: 18W |
| 90W 15-24V Adjustable Voltage Adapter with USB&Typte-C Ports (desktop) | Output Voltage: 15V/16V/18V/19V/20V/22V/24V
Current: 15V,6A |16V,5.625A |18V,5A | 19V, 4.74A |20V,4.5A | 22V,4.09A | 24V,3.75A
USB&Typte-C output: 5V3.1A |
| 90W 15-24V Adjustable Voltage Adapter (desktop) | Output Voltage: 15V/16V/18V/19V/20V/22V/24V
Current: 15V,6A |16V,5.625A |18V,5A | 19V, 4.74A |20V,4.5A | 22V,4.09A | 24V,3.75A |
| 90W 12-20V Automatically Voltage Adapter with USB&Typte-C ports (desktop) | Output Voltage: 15V/16V/18.5V/19V/19.5V/20V
Current: 15V,6A |16V,5.625A |18.5V,4.87A | 19V, 4.74A |19.5V,4.61A | 20V,4.5A
USB&Typte-C output: 5V3.1A |
| 90W 15-20V Automatically Voltage Adapter (desktop) | Output Voltage: 15V/16V/18.5V/19V/19.5V/20V
Current: 15V,6A |16V,5.625A |18.5V,4.87A | 19V, 4.74A |19.5V,4.61A | 20V,4.5A |
Advantages
1.Quick delivery: a large quantity of power adapter stock.
2.Quality Assurance: All power adapter have been 100% tested before shipment. Serious aging test for a few hours before packing to make sure reliable quality.
3.Wide range of models: all kinds of models for you to choose.
4.Very competitive prices: Our own factory production, wholesale price to help you win the market.
5.High quality: Short circuit/Over voltage/Over current, High working efficiency, full power.
6.Power adapter warranty: 12 months within the warranty period.
7.Professional packaging for power adapter: carton with boxes.
8.Professional service team: provide you with satisfactory service.
Hooray Photoelectric is a power supply designer and manufacturer in China, located in Shenzhen, manufactures home charger, car charger, adapter, cable, LED Waterproof Driver Power Supply, high frequency switching power supply and POE power supply, with more than 10 years experience in production and R&D. With a workshop area of 1, 500 square meters, the company is staffed with over 60 employees.
With the concept of "people oriented, technological innovation", it owns an experienced team in R&D, production and quality control. Meanwhile, it introduces advanced production technical and updates production equipment, set up a scientific quality control system. Hooray owns various advanced production facility and inspection equipment, such as
AI Auto-Insertion machine, aging chamber, large scale wave soldering machines, ultrasonic plastic welder, high frequency plastics welder, oscilloscope, automatic power supply tester and other advanced equipments and reliability testers, Its daily capacity exceeds 10, 000 sets. Our products are widely applied to mobile device, laptop, tablet PC, camera, security monitoring, communication apparatus, digital frame, network audio, car, etc. Products sold at home and abroad.
Our principle is to provide our customers with high-quality products and satisfactory support and service, become one of the most important developers and suppliers of power supply devices. We sincerely welcome domestic and overseas calls from business operations.
