Walter Flexible Rogowski Coil, an Electrical Device for Measuring Alternating Current (AC)
| Price: |
US $ 79.9-85/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY-RCTD03 |
| Frequency: |
25-20k Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Accuracy: |
<1%(45-65Hz) |
| Current Range: |
10A ~10ka / 10A ~6000A |
| Clamp-on: |
Rogowski |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description

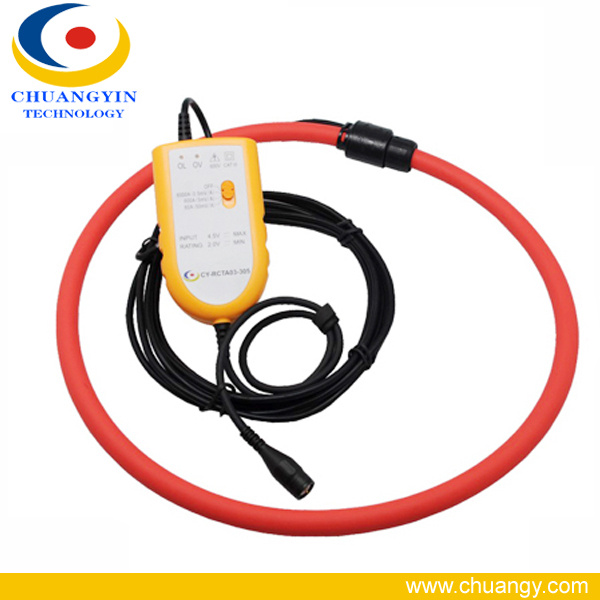

Series Clamp-on Flexible Rogowski Coil Current Transformers CY-RCTD03
The"RCTD03 lamp Clamp-on Flexible Rogowski coil current transformer" is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. It includes a flexible Rogowski coil probe and electronic modules with a display . The signal from the coil probe can be amplified by the electronic modules through the integration processing .The output signal can be directly used in oscilloscope, digital multimeter or data logger recording instrument. Feature: .Display LCD measured parameters.Flexible and light weights appearance.Easy & quick installation in tight spaces.Excellent linearity.Maximum measuring current up to 130A Applicaition:.Power quality monitoring .Power instrument meter.Smart logger.Energy sub-meters.Distributed measurement systems Model Code: General data:.Ambient operating temp:-10ºC-60 ºC(14-140 ºF). Ambient storage temp:-25ºC-75 ºC(13-167 ºF).Operating environment: Indoor , altitude up to 2000 meters.Standards Safety:IE 61010-1:2001,300V CAT Dimension: | Dimension (mm) | CY-RCTD03-120 | CY-RCTD03-190 | CY-RCTD03-305 |
| Window A | 120 | 190 | 305 |
| Coil OD B | 144 | 214 | 329 |
| Coil Length C | 400 | 600 | 1000 |
| Output connection | Standard BNC male head |
Electrical ParameterThe test environment for the accuracy:23±5ºC(73±9ºC), ≤85%RH Model
Data | CY-RCTD03-120 | CY-RCTD03-190 | CY-RCTD03-305 |
| Current Range | 10A-30kA |
| Frequency | 25Hz-20kHz |
Output
Voltage | Rated Current | 1000A
2000A | 2000A
3000A | 5000A
6000A |
| 50Hz | 1Mv/A@ Ipn=1000...3000A(0.5mV/A@Ipn=4000...6000A) |
| Maximum output | 3.0 V AC max (customizable) |
| Accuracy | ±1%(10%-100%In)@45-65Hz |
| Phase error | ±1%(10%-100%In)@45-65Hz, ±10º@20kHz |
| Linearity | ±0.2%(10%-100%In) |
| Position Sensitivity | ±1.0%(90º-270º), ±2%(0,45º,315º) |
| External Influence | ±1%Range (from the coil>200mm) |
| Noise | 8m V rms (60A)2m V rms (600/6000A) |
| Temperature Coefficient | ±0.08%/Cof the reading data |
| Friquency Range | 10Hz TO 20kHz (-3DB) |
| Load Impedance | Mininum 100KΩ |
| Power | 4*AA /MN 1500//LR6 Battery(Eternal Adapter :9-12V DC) |
| Operating Voltage | 600V AC RMS or DC |
| Security Level | IEC61010-1:2001,600V CAT |
| Cable Length | 3m (measuring head to the electronics module) |
| Output terminals | BNC |
| Weight | 230g(measuring head),130g(Electronic modules) |
Usage Instruciton:
