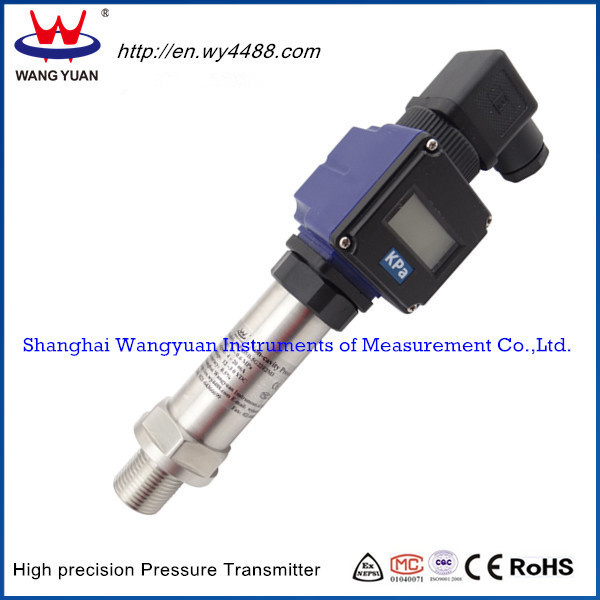

Wangyuan Factory High Precision Pressure Transmitter

Prod Model:	WP402B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Type:	Gauge Pressure(G), Absolute Pressure(a), Sealed Pr
Process Connection:	G1/2,M20*1.5,1/4NPT,1/2NPT, Customized
Electrical Connector:	Hirschmann(DIN), Cable, Bendix Connector(5pin,4pi
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Compensation Range:	-20~85 Celsius
Power Supply:	24V DC
Name:	High Precision Pressure Transmitter
Measuring Medium:	Gas, Oil, Liquids, Steam
Pressure Range:	0-1kpa~100MPa
Certification:	ISO9001, RoHS, CPA, CMC, Ex

Product Description

Application
This high precision pressure transmitter can be used to measure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power, Water supply
Environmental protection
Aerospace, Oil & Gas
Military project, Mechanical engineering
Diesel injection method and etc

Description
WP402 Series pressure transmitters adopt advanced imported sensor component and high precision sensitive element with anti-corrosive diaphragm, which is combined with the solid state integrated technology and isolate diaphragm technology. The product is special designed to work high performance under various conditions. The temperature compensation resistance is made on admixture ceramic, which is the excellent technology of the pressure transmitters. With strong anti-jamming performance, this pressure transmitter is suitable for long distance transmission. WP402 pressure transmitter is widely used to exactitude measure and control for military project, scientific research, aerospace, petroleum & chemical, electric power, ocean, coal mine and other sever environment.

Features
Imported sensor component
High precision: 0.05%FS, 0.1%FS, 0.2%FS
Compact dimension design, strong
Light weight, easy to install, maintenance-free
3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: 0-1kPa~100MPa
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN)
Compensation range: -20~85 Celsius
Pressure connection: M20*1.5, G1/2,
Accuracy: 0.2%FS, 0.5%FS.

Ordering guide: WP421B-2.5MPa-M20*1.5-DIN Connector-4-20mA-24VDC-0.2%FS
