Washing Machine Capacitor (CBB60)

Name: Washing Machine Capacitor (CBB60)
Brand: all-electronics-online.com
SKU: 723851215
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 0.1-3/Piece
Trade Terms:	FOB,CIF,others
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Can Be Done According to Customer's Requirments
Climate Type:	25/70/21
Type:	Polypropylene Capacitor
Application:	Washing Machine
Package Type:	Through Hole
Capacitance:	1-50uf
Structure:	Roud
Usage:	Washing Machine

Product Description

CBB60 washing machine capacitors Be used for the running of 50HZ AC single-phase as motors, pumps, wind machines, washing mach

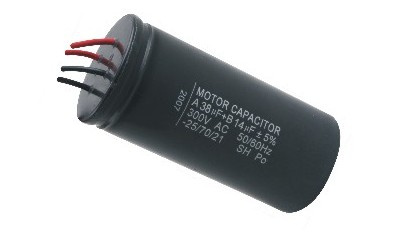

CBB60 washing machine capacitors

A.Rating Capacity: 4 uf--90uf

B.Rating Voltage: 100VAC--450VAC

C.Climate type: 25/85/21

D. Capacitance tolerance: ±5%

E. Testing Voltage:
a). Between leading-out:1.75UR, 10S no breakdown

b). Between leading-out end and shell: 2200VAC, 10S no breakdown

F. Insulation resistance:
a). Between leading out ends: ≥3000MΩ

b). Between leading-out end and shell: ≥1000MΩ.

G. Tangent of loss angle≤0.002 (50HZ)

H. Used especially for micro water pumps, cleaning machines, washing machines, and single- phase water pump motors

I. Small and lightweight

J. Long lifespan and goods self-health.

Type	Capacitance	Voltage	Size	Min Quantity	Unite Price
CBB60	450vac	12+4uf	43*110 mm	500 pcs	$0.1~3

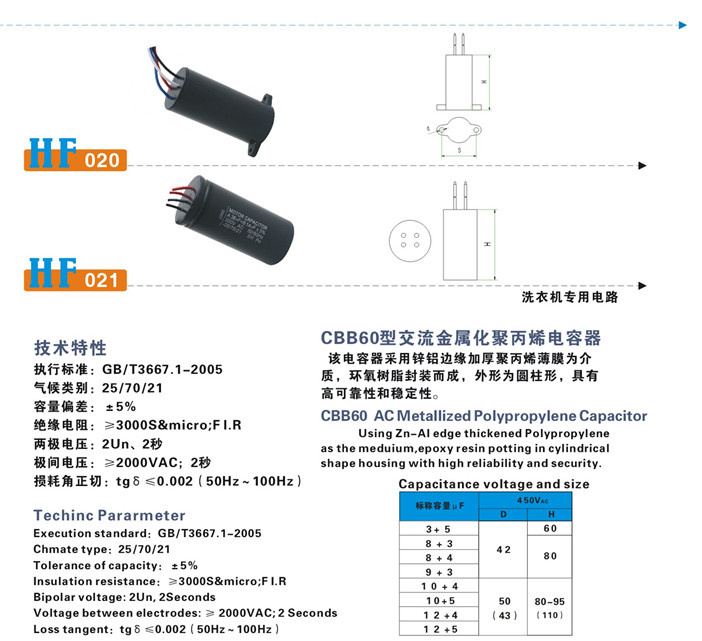

CBB60 AC Metallized Polypropylene Capacitor
Using Zn-Al edge thickened polypropylene as the meduium ,epoxy potting in cylindrical shape housing with high reliability and security.
Technical Parameter
Execution standard:GB/T3667.1-2005
Climate type:25/70/21
Tolerance of capacity:±5%
Insulation resistance:≥5000SµFI.R
Flectrodes VoltageT-T:2Un,2Seconds
Loss tangent:tgδ≤0.002(50Hz~100Hz)

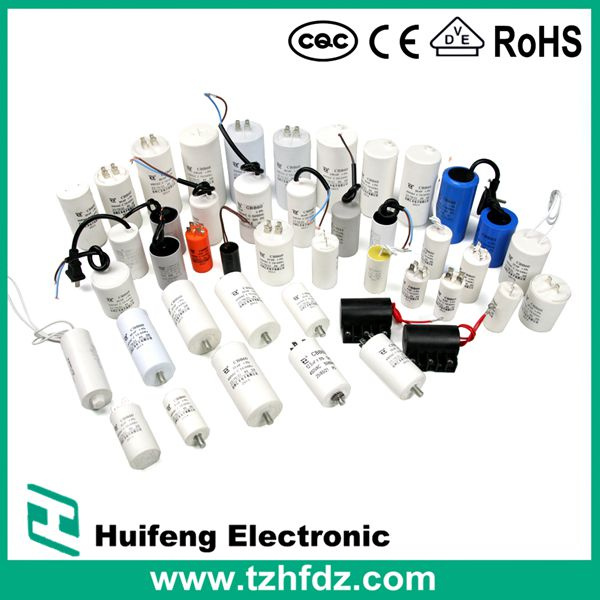

Founded in 1993, Taizhou Huifeng Electronic Co., Ltd. is specialized in manufacturing CD60 starting capacitors as well as CBB60motor running capacitors, CBB65 air conditioner capacitors, CBB61 fan/generator capacitors and CBB80 lighting capacitors. Our company covers an area of 7200 square meters and has more than 100 employees, including 10 engineers and technicians and 6 full-time inspectors. We have advanced automatic winding machines, spraying machines, automatic testing machines, automatic welding machines and dipping machines. We also have a group of well-trained and aggressive marketing team to meet the demands of clients from at home and abroad. We comply with ISO9001 Quality Control system Standard to ensure product quality. Besides, we have passed UL, VDE, CQC, CE and RoHS certifications.

Huifeng promotes "Huifeng Brand" all the time, follows the commercial spirit of "quality first, customer first, reputation first" and the principle of "people-oriented", develops high-tech industry and attaches importance to talent training. Our products are welcomed by customers from all over the world.

We have already established long-term business relationships with many enterprises, winning a good reputation among them. We also provide excellent service. You are welcome to visit our company and do business with us. We will try our best to provide high-quality products and excellent after-sales service for you.

Add. Qiaoli Village, Daxi Town, Wenling City, Zhejiang Province. 318050

Contact person: Ms. Summer

Tel: 0086 13968649796
