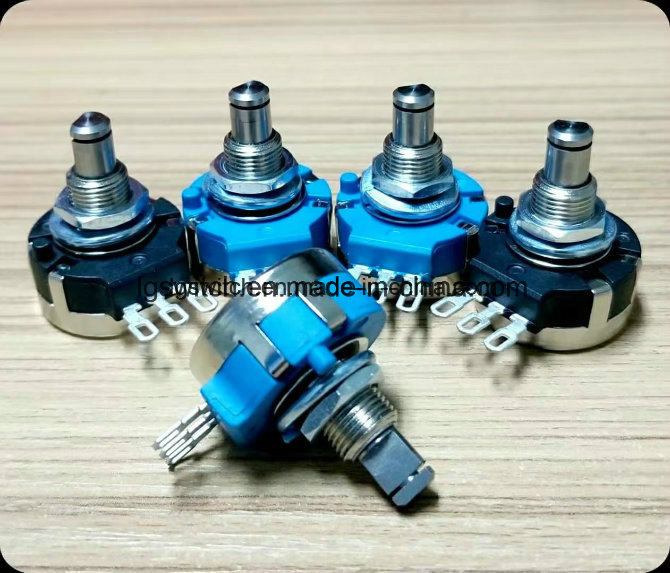

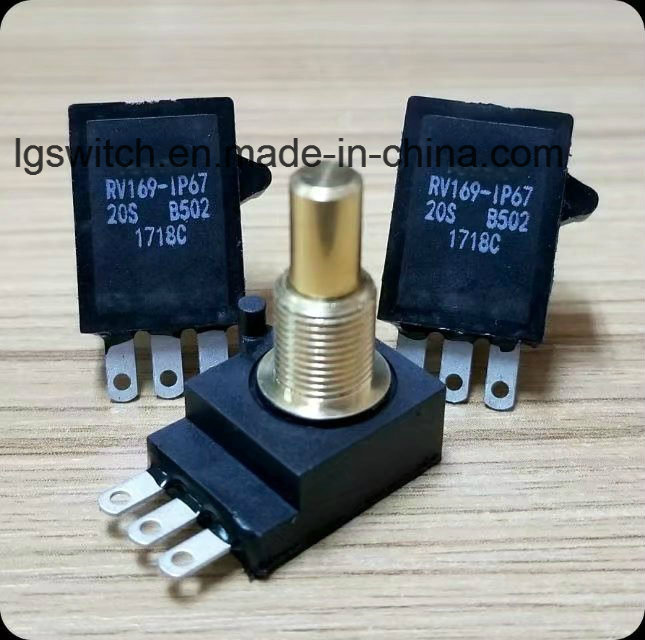

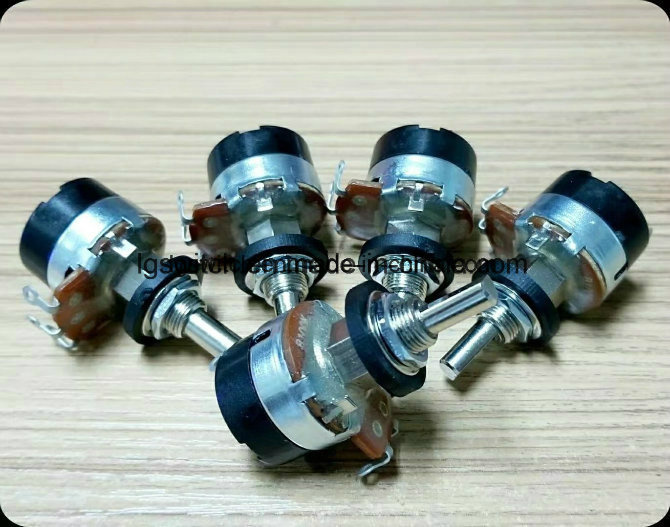

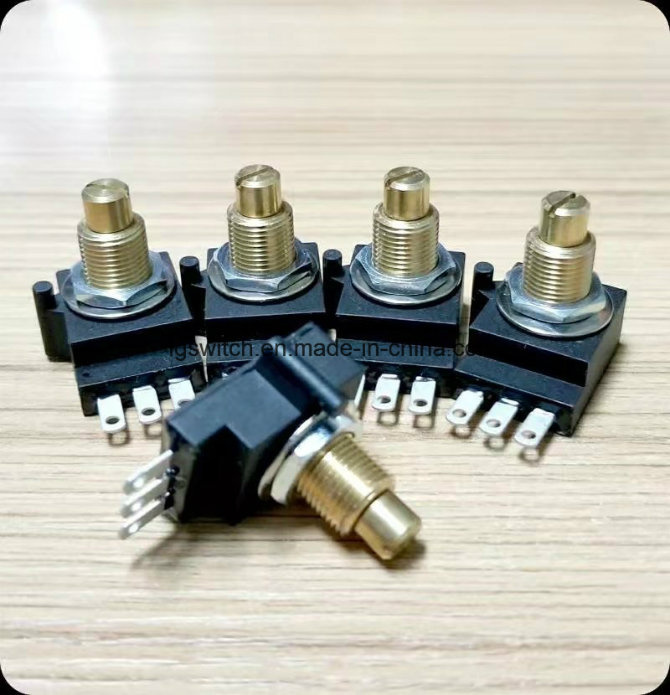

Washing Machine Waterproof IP67 Rotary Potentiometer

Name: Washing Machine Waterproof IP67 Rotary Potentiometer
Brand: all-electronics-online.com
SKU: 731029242
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 0.4-1/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	lgswitch
Mechanical Point Of View:	300c+/-5c
Electrical Angle:	280c+/-10c
Outer Diameter:	20mm
Rated Power:	2W
Life:	100000 Times
Haft Diameter:	6mm
Resistance:	Variable Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Metal Film Resistor
Package Type:	Throught Hole
Type:	Rotary Potentiometer
Shape:	Round
Brand:	Lgswitch

Product Description

Electrical Specification

Total Resistance :500Ω~1MΩ

Total Resistance Tolerance :±10%

Power Rating:≤ 0.05W

Max Operating Voltage:AC 50V

Contract Resistance::5% or less

Residual Resistance:R1~2:≤ 10 Ω; R2~3:≤ 20 Ω

Rotational Noise:1OOmV Less than

Tracking Error:≤± 3dB, at -40 ~ 0dB.

Insulation Resistancef:More then 100MΩ at DC 250V 1 Minute

Withstand Voltage:1 Minute at AC 300V

Working Temperature:Below 5 ºC~70ºC

Storage Temperature:5ºC~35ºC

Mechanical Specification

Total Rotational Angle:300°±10°

Rotational Torque:20gf.cm~120gf.cm

Click position: Center click or 41 click

Click Slip Out Force:30gf.cm~150gf.cm

Switch working angle:≤ 50°(rotary power switch)

Switch Working Torque:≤1kgf.cm (rotary power switch)

Shaft Stopper Strength::≤4Kgf.cm

Shaft Push & Pull Strength:≥8Kgf.cm

Sample:

1. Free charge sample: Could provide(less than 5 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
